  • Hypermaxi System

    Hypermaxi is a sub-system of modified Wide Span shelving components designed to increase the versatility of basic Maxi Line components by adding stock space above the fixture to maximize square footage.

    Hypermaxi may be used throughout the store or applied to specific categories as small as three feet (914 mm). Selection of Upper Decks plus optional Intermediate Decks as opposed to Standard Base and Upper Shelves depends on the type of merchandise involved.

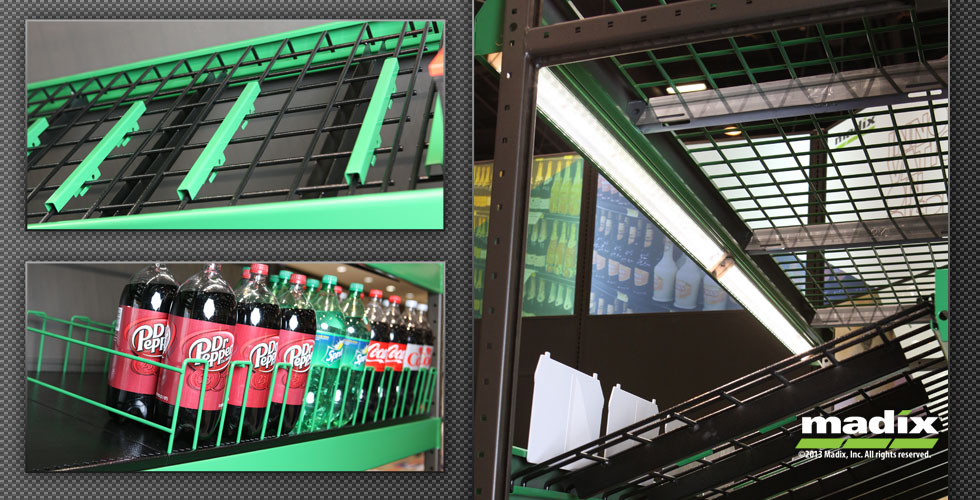

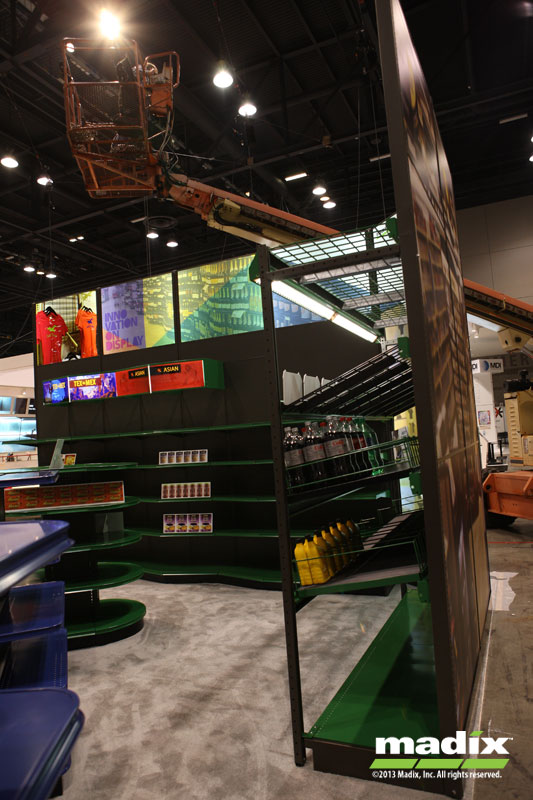

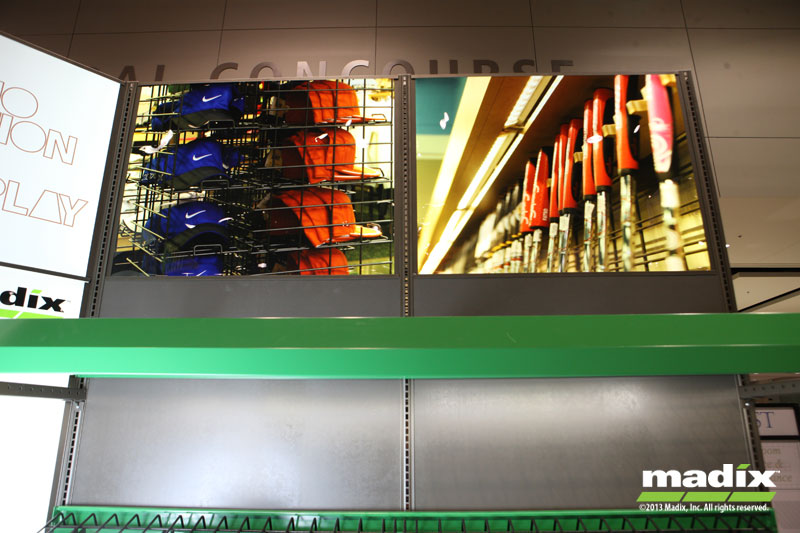

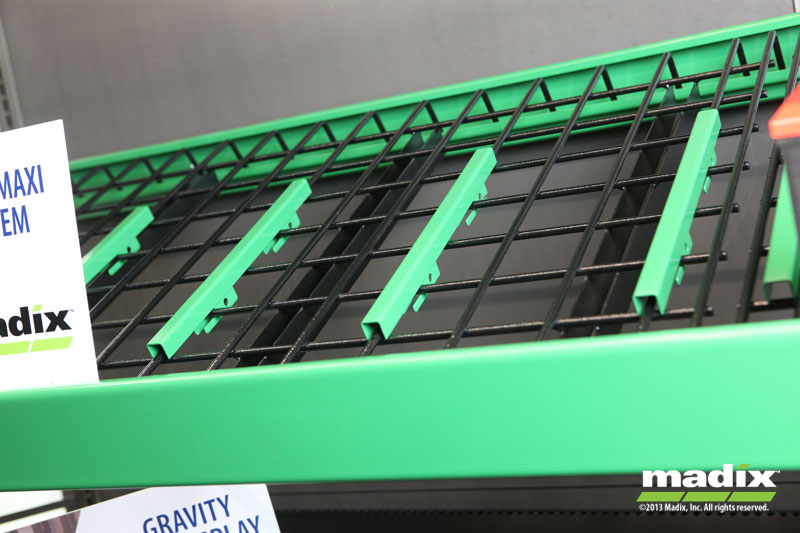

    • Gallery

    • Components for Hypermaxi System

      Reveal/Hide Components

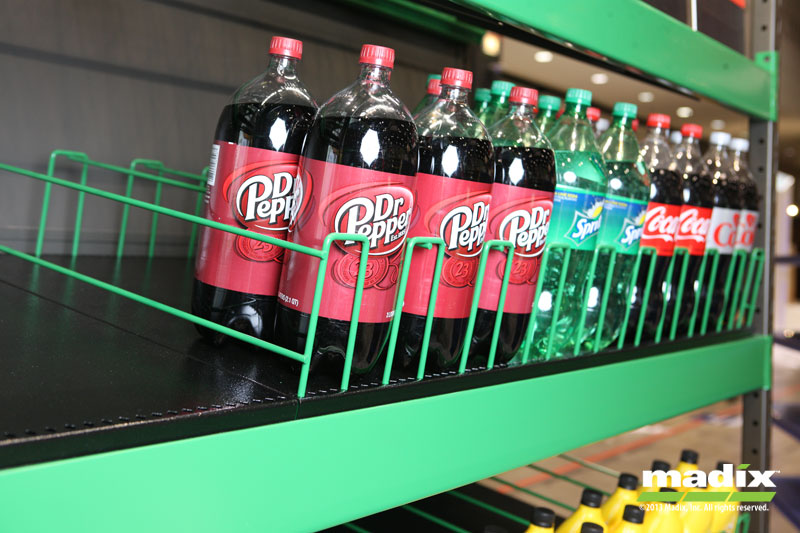

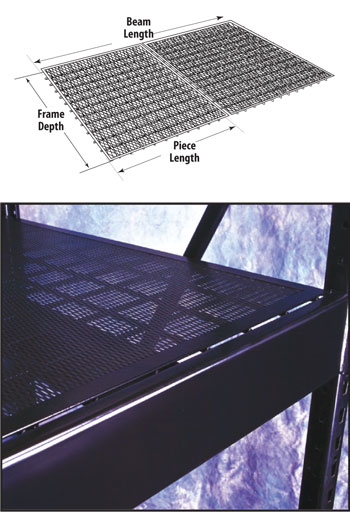

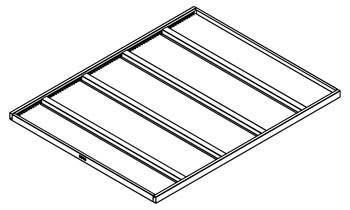

       Flow Through Hypermaxi Decks

      • Flow through decks are pieced for ease of handling
      • Sturdy 5/16" (8 mm) diameter gauge wire is welded on 3" (76 mm) grid centers
      • Standard finishes: Silver Vein, Sahara, or Blue Gray
      Part Number: FTHMD-(ND)(NL)
      • FT......Flow Through
      • HMD......Hypermaxi Deck
      • ND......Nominal Frame Depth 18" to 30" in 2" increments (457 mm to 762 mm in 51 mm Increments)
      • NL......Nominal Piece Length 24", 36", 42", 48" (610 mm, 914 mm, 1067 mm, 1219 mm)
      FTHMD-(ND)(NL)-Flow Through Hypermaxi Decks
      Deck Supports are not included. Order two deck supports per piece.

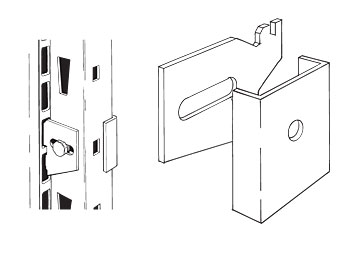

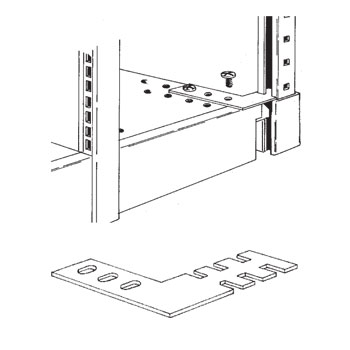

       Hypermaxi Attachment Clip

      • Special steel angle twist locks into Upright, then screws to Base Shelf to secure Upright positioning
      • Finish should be same as Base Shelf
      Part Number: HMAC-2
      • HMAC......Hypermaxi Attachment Clip
      • 2......2 Pack
      HMAC-2-Hypermaxi Attachment Clip

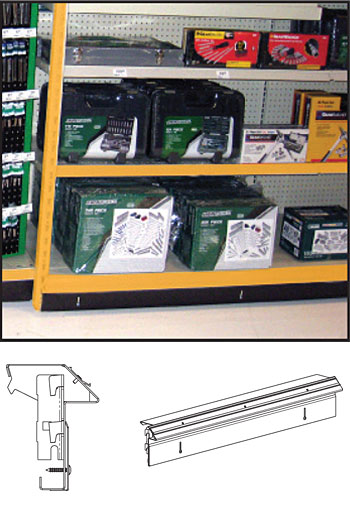

       Hypermaxi Base Beam Extension

      • Extends the base deck of Maxi Line base shelf to front of Hypermaxi Upright (HMU)
      • Beam includes angled tag molding and adjustable plate to cover the gap between beam and floor
      • Beam increases area available for displaying merchandise
      • Places Hypermaxi Upright (HMU) behind front lip of base shelf
      Part Number: HMBDEB(NL)
      • HM......Hypermaxi
      • BDEB......Base Beam Extension
      • NL......Nominal Length 36" to 144" in 12" increments (914 mm to 3658 mm in 305 mm increments)
      HMBDEB(NL)-Hypermaxi Base Beam Extension

       Hypermaxi Base Beam Extension End Caps

      • Covers the open ends of beams
      • Comes as a pair
      • Only needed on ends of runs
      Part Number: HMBDEBEC
      • HM......Hypermaxi
      • BDEBEC......Base Beam Extension End Cap
      HMBDEBEC-Hypermaxi Base Beam Extension End Caps

       Hypermaxi Base Deck Beam

      • Required when using the HMBD
      • Allows HMBD to sit on base shelf of gondola/wall backs
      • Can be used as a kickplate beam
      • Available in regular-duty or heavy-duty
      Part Number: HMBDB-(NL)-(TYPE)
      • HMBDB......Hypermaxi Base Deck Beam
      • NL......Nominal Piece Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      • TYPE......Blank=Heavy-Duty RD=Regular-Duty
      No Image Available

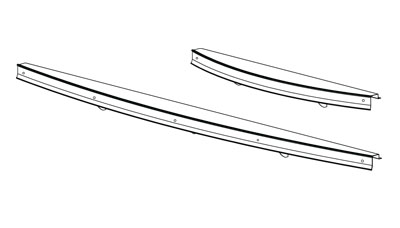

       Hypermaxi Base Deck Beam Radius Extender

      • Hangs on Hypermaxi Base Beam, held in place by Hypermaxi Wood Base Deck [HMBD(ND)(NL)-(TYPE)
      • Innovative way to highlight a new product, hot sale item or an entire line of merchandise
      • Use in line with Standard Upper Shelf section stand out
      • May also be used with end merchandisers to create eye-catching end cap displays that highlight new products or sale items
      Part Number: HMBDBREXT(NW)
      • HMBDB......Hypermaxi Base Deck Beam
      • REXT......Radius Extender
      • NW......Nominal Width 36", 48", 60", 72", 84", 96" (914 mm, 1219 mm, 1524 mm, 1829 mm, 2134 mm, 2438 mm)
      Finish
      • FIN1......Metal FIN2......Tag
      HMBDBREXT(NW)-Hypermaxi Base Deck Beam Radius Extender

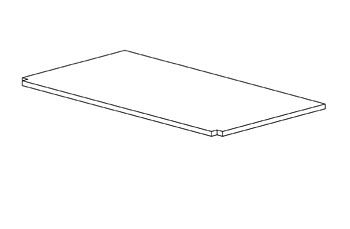

       Hypermaxi Base Decks

      • Designed to be used with Hypermaxi Base Beams
      Part Number: HMBD(ND)(NL)-(TYPE)
      • HMBD......Hypermaxi Base Deck
      • ND......Nominal Frame Depth 18" to 32" in 2" increments (457 mm to 813 mm in 51 mm Increments)
      • NL......Nominal Piece Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      • TYPE......U=Unsealed S=Sealed F=Fabric
      HMBD(ND)(NL)-(TYPE)-Hypermaxi Base Decks

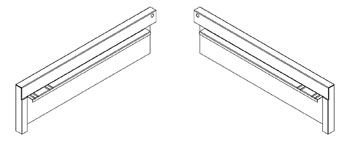

       Hypermaxi Base End Cover Notched

      • Only use with Hypermaxi Notched Base Shelf
      Part Number: HMBECN-524
      • HM......Hypermaxi Base
      • BECN......Base End Cover Notched
      • 5.....Nominal Height 5" (127 mm)
      • 24.....Nominal Depth 24" (610 mm)
      HMBECN-524-Hypermaxi Base End Cover Notched

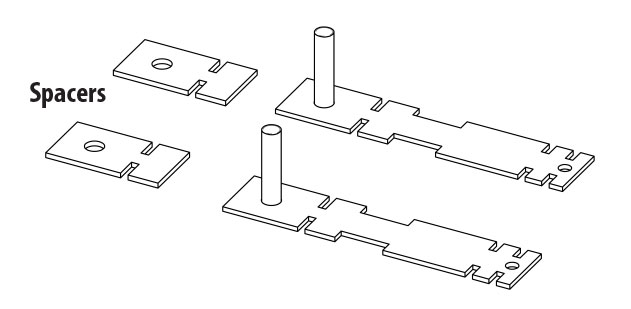

       Hypermaxi Base Shoe Attachment Clip

      • Cannot be used on end of run where BEC is positioned, use HMAC-2
      • Comes with spacer for raising Base Shelf where there is no HMU
      • Pack of 2
      • HMAC-2 required for the end of a run
      Part Number: HMBSAC-2
      • HMBSAC......Hypermaxi Base Shoe Attachment Clip
      • 2......2 Pack
      HMBSAC-2-Hypermaxi Base Shoe Attachment Clip

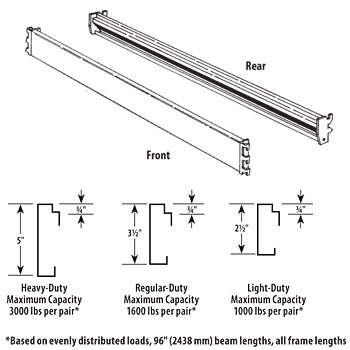

       Hypermaxi Beams

      • Heavy gauge beam body with integrated connectors fits snugly into upright slots and maintains deck alignment with basic fixture slotting
      • One front beam and one rear beam are required per deck
      • Load capacity: Light-duty=1,000 lbs Regular-duty=1,600 lbs Heavy-duty=3,000 lbs
      Part Number: HM(TYPE)(OPT1)(NL)-(OPT2)
      • HM......Hypermaxi
      • TYPE......LD=Light-Duty RD=Regular-Duty HD=Heavy-Duty
      • NL......Nominal Beam Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      Options
      • OPT1......FB=Front Beam RB=Rear Beam OPT2......U=Upper Blank=Rear
      HM(TYPE)(OPT1)(NL)-(OPT2)-Hypermaxi Beams
      Actual beam length is 2" less than Wide Span beam length, will not interchange with Wide Span.

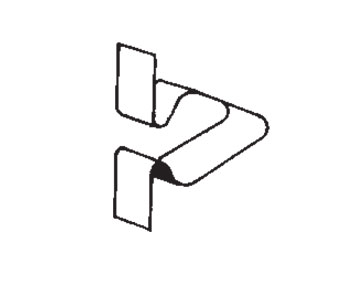

       Hypermaxi Dart Clip

      • Spring steel clip secures beam to frame, prevents accidental disengagement
      • Two required for each beam
      • Pack of 50
      • Available in black only
      Part Number: WSDC25-50
      • WSDC......Hypermaxi Dart Clip
      • 50......50 Pack
      WSDC25-50-Hypermaxi Dart Clip

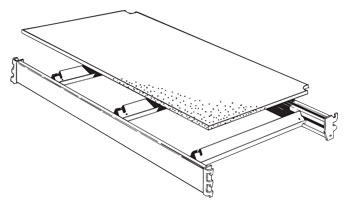

       Hypermaxi Deck Kits

      • Convenient, accurate ordering is assured with Hypermaxi Deck Kits
      • Each kit includes one Front Upper Beam, one Rear Beam, one Deck and correct number of Deck Supports
      • Dart Clips for beam locking are not included, order four Dart Clips per kit, WSDC25-50
      • Load capacity: Light-duty=1,000 lbs, Regular-duty=1,600 lbs Heavy-duty=3,000
      Part Number: (TYPE)HMUK(ND)(NL)-(TYPE)
      • TYPE......LD=Light-Duty RD=Regular-Duty HD=Heavy-Duty
      • HMUK......Hypermaxi Upper Kit
      • ND......Nominal Upright Depth 18", 20", 22", 24", 30" (457 mm, 508 mm, 559 mm, 610 mm, 762 mm)
      • NL......Nominal Beam Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      • TYPE......U=Unsealed S=Sealed
      (TYPE)HMUK(ND)(NL)-(TYPE)-Hypermaxi Deck Kits

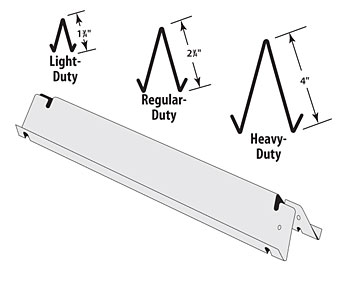

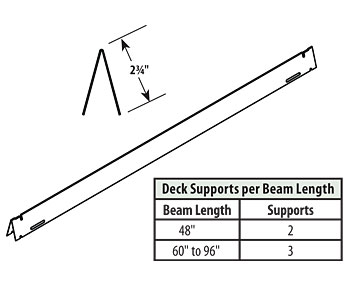

       Hypermaxi Deck Support

      • Formed steel component easily rotates into place
      • Ties beams together and supports deck
      Part Number: (TYPE)WSDS(ND)
      • TYPE......LD=Light-Duty RD=Regular-Duty HD=Heavy-Duty
      • WSDS......Wide Span Deck Support
      • ND......Nominal Frame Depth 18" to 30" in 2" increments (457 mm to 762 mm in 51 mm increments)
      (TYPE)WSDS(ND)-Hypermaxi Deck Support

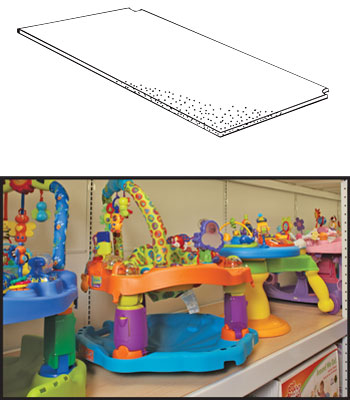

       Hypermaxi Decks

      • Regular-duty decks are durable 5/8" (16 mm) particle board
      • Heavy-duty decks are 5/8" (16 mm), 45 lb density particle board for increased load capacity
      • Sealed decks have a baked on polymer wax finish
      • All dimensions listed are actual dimensions of deck
      Part Number: HM(TYPE)(ND)(NL)-(OPT)
      • HM......Hypermaxi
      • TYPE......RDD=Regular-Duty Deck HDD=Heavy-Duty Deck
      • ND......Nominal Frame Depth 18" to 30" in 2" increments (457 mm to 762 mm in 51 mm increments)
      • NL......Nominal Beam Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm )
      Options
      • OPT......U=Unsealed S=Sealed
      HM(TYPE)(ND)(NL)-(OPT)-Hypermaxi Decks

       Hypermaxi Front Beam for Light Canopy

      • Required for mounting Hypermaxi Light Canopy
      Part Number: HM(TYPE)FB(NL)-U-LC
      • HM......Hypermaxi
      • TYPE......HD=Heavy-Duty RD=Regular-Duty
      • FB......Front Beam
      • NL......Nominal Length 36", 48", 60", 72", 84", 96" (914 mm, 1219 mm, 1524 mm, 1829 mm, 2134 mm, 2438 mm)
      • U......Upper
      • LC......For Light Canopy
      No Image Available

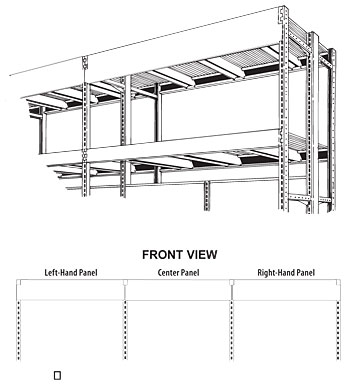

       Hypermaxi Front Beam Metal Border

      • Covers the beams and a portion of the uprights of the Hypermaxi
      • Excellent for facilitating magnetic signage
      • Available in 8" and 12" heights (203 mm and 305 mm)
      Part Number: HMFBMB-(NH)(NW)(OPT)
      • HM......Hypermaxi
      • FBMB......Front Beam Metal Border
      • NH......Nominal Height 8" or 12" (203 mm or 305 mm)
      • NW......Nominal Width 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      Options
      • OPT......RH=Right-Hand LH=Left-Hand C=Center
      HMFBMB-(NH)(NW)(OPT)-Hypermaxi Front Beam Metal Border
      When ordering, specify center, left-hand, or right-hand application

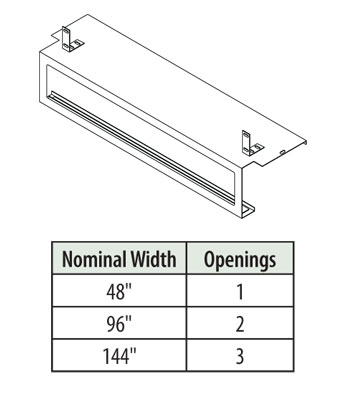

       Hypermaxi Graphics Light Box

      • Top brackets allow box to be mounted under Hypermaxi front beam
      • 5/16" (8mm) retainer track is built inside top and bottom of box to hold customer supplied signage fixture; 467/8"W (98 mm) for 96"W (2438 mm) fixture (quantity: 2); 471/4"W (1200 mm) for 144"W (3658 mm) fixture (quantity: 3), 51/2"H (140 mm) with graphics visible 4" (102 mm) OC
      • Recommended card stock thickness of customer-supplied signage is 1/4" (6 mm)
      • When ordering product, please note the number of front openings that coincide with the part width
      Part Number: HMGLB-(NW)
      • HMGLB......Hypermaxi Graphics Light Box
      • NW......Nominal Width 48", 96", 144" (1219 mm, 2438 mm, 3658 mm)
      HMGLB-(NW)-Hypermaxi Graphics Light Box

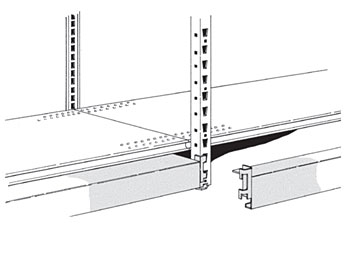

       Hypermaxi Kickplate Beam

      • Heavy gauge beam resists damage from carts and polishers
      • Prevents trash from collecting under Base Shelves
      Part Number: HMBDB-(NL)-S
      • HMBDB......Hypermaxi Kickplate Beam
      • NL......Nominal Length 36" 48", 72", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      • S......S Style
      HMBDB-(NL)-S-Hypermaxi Kickplate Beam

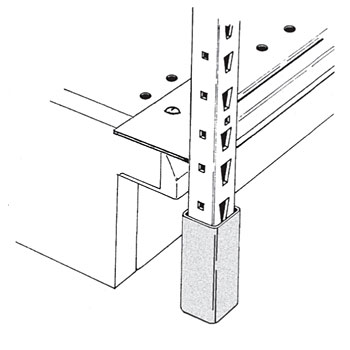

       Hypermaxi Leveler Cover

      • Designed to protect leveler from buffers and mops and improves appearance
      • Should match Hypermaxi Upright color
      Part Number: HMUCA
      • HMUCA......Hypermaxi Leveler Cover
      HMUCA-Hypermaxi Leveler Cover

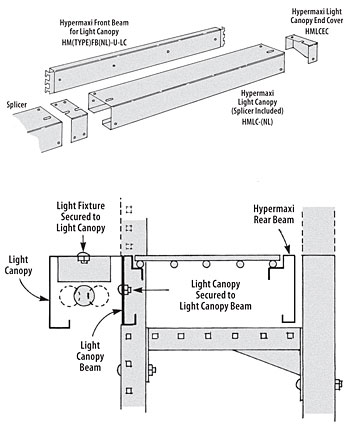

       Hypermaxi Light Canopy

      • Splicer included
      • Requires Hypermaxi Front Beams for canopy
      Part Number: HMLC-(NL)
      • HM......Hypermaxi
      • LC......Light Canopy
      • NL......Nominal Length 36", 48", 60", 72", 84", 96" (914 mm, 1219 mm, 1524 mm, 1829 mm, 2134 mm, 2438 mm)
      HMLC-(NL)-Hypermaxi Light Canopy

       Hypermaxi Light Canopy End Cover

      • Comes in pairs
      • One pair required for each run
      Part Number: HMLCEC
      • HMLCEC.....Hypermaxi Light Canopy End Cover
      No Image Available

       Hypermaxi Light Mounting Kit

        Part Number: WS/HMLMK
        • WS/HMLMK.....Hypermaxi Light Mounting Kit
        No Image Available

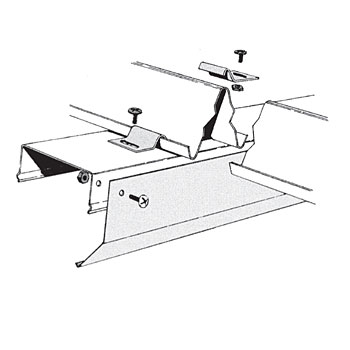

         Hypermaxi Light Mounting Kit and Reflector

        • Includes all the necessary hardware for mounting light fixture and reflector to Hypermaxi or Wide Span Deck Supports
        • Light fixture and tube not included
        • Use only with Hypermaxi Upright HMU-(NH)(ND)-12
        • Light Reflector includes mounting kit
        Part Number: HMU-(NL)LR
        • HMU......Hypermaxi Reflector
        • NL......Nominal Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
        • LR......Light Reflector
        HMU-(NL)LR-Hypermaxi Light Mounting Kit and Reflector

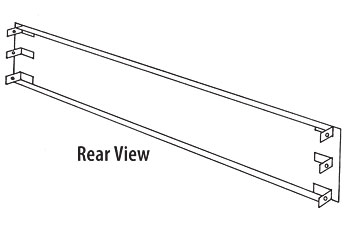

         Hypermaxi Metal Border

        • Metal Border easily attaches above or below beams with supplied hardware
        • Adds accent color, signage or light deflection to Hypermaxi sections (regular, on base, or over gondola)
        • Attaches to the Hypermaxi Uprights and has an overlap at each end to conceal Uprights when they are different colors than border
        Part Number: Q6491-(NL)(NH)
        • Q6491......Hypermaxi Metal Border
        • NL......Nominal Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
        • NH......Nominal Height 12", 21", 36" (305 mm, 533 mm, 914 mm)
        Q6491-(NL)(NH)-Hypermaxi Metal Border

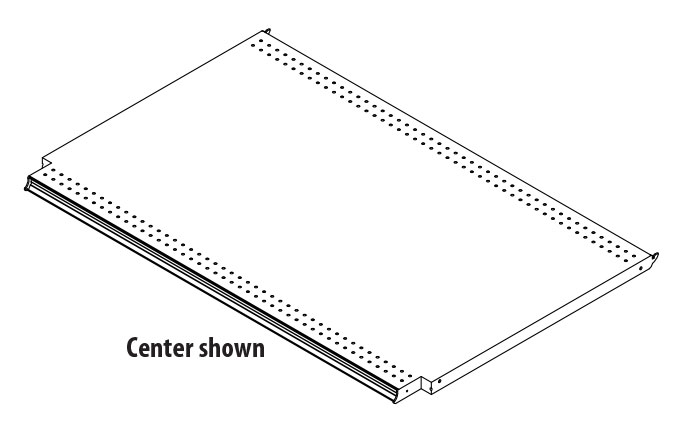

         Hypermaxi Notched Base Shelf

        • Brings the front of the base shelf flush with front of the Hypermaxi upright
        • Hypermaxi notched base shelves requires all Hypermaxi components and standard shelves ND of base -2" (-51 mm) Example: HMBSC-424 base use HMU-(NH)(22) Hypermaxi uprights and SUS-422 shelves
        Part Number: HMBS(TYPE)-(NW)(ND)
        • HM......Hypermaxi
        • BS......Base Shelf
        • TYPE......L=Notched on Left R=Notched on Right C=Notched on both sides
        • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
        • ND......Nominal 18" to 72" in 2" increments (457 mm to 1829 mm in 51 mm increments)
        HMBS(TYPE)-(NW)(ND)-Hypermaxi Notched Base Shelf

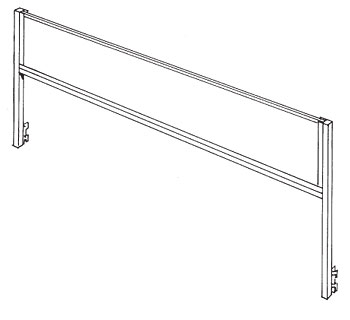

         Hypermaxi Sign Holder

        • Provides signage over Hypermaxi systems
        • Actual sign measurements are 57 3/4" W x 12", 19" or 24" H (1467 mm W x 305 mm, 483 mm or 610 mm)
        • Thickness of signage material can be 5/16" (8 mm) or less
        Part Number: HMSH-(NSH)(NL)
        • HMSH......Hypermaxi Sign Holder
        • NSH......Nominal Sign Height 12", 19", 24" (305 mm, 483 mm, 610 mm)
        • NL......Nominal Length 48" or 60" (1219 mm or 1524 mm)
        HMSH-(NSH)(NL)-Hypermaxi Sign Holder

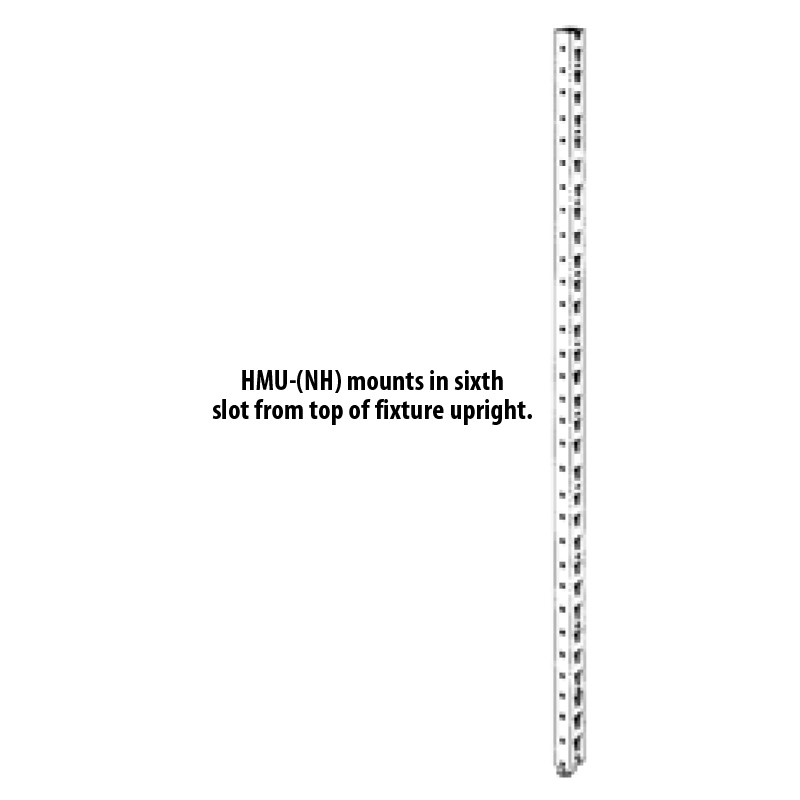

         Hypermaxi Upright

        • Heavy gauge 1 3/4" (44 mm) square upright supports 5,000 lbs, slotted 2" (25 mm) OC for beam connectors
        • Use with Special Hypermaxi Upright Support Center Arm [SHMUSCA-(ND)]
        • Two-piece design for shipping efficiency and flexibility
        Part Number: HMU-(NH)
        • HMU......Hypermaxi Upright
        • NH......Nominal Upright Height 72" to 96" in 6" increments (1829 mm to 2438 mm in 152 mm increments)
        HMU-(NH)-Hypermaxi Upright
        To prevent overturning, the total Base Shelf depth (wall or gondola) multiplied times 6 cannot exceed the height of the topmost loaded beam pair, unless the Base Shoes are properly anchored.

        For mounting light fixtures under top deck, use HMU-(NH)(ND) -12. Mounts in twelfth slot from top of fixture upright. See Hypermaxi accessories for light-mounting kit.

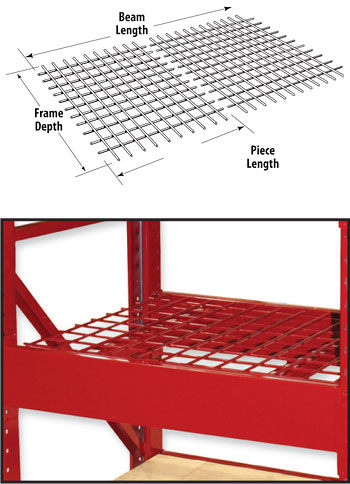

         Hypermaxi Wire Grid Decks

        • Sturdy approximately 5/16" (8 mm) diameter gauge wire is welded on 3" (76 mm) grid centers to form decking
        • Standard finishes: Silver Vein, Sahara, or Blue Gray
        Part Number: HMWMS(ND)(NL)-3
        • HM......Hypermaxi
        • WMS......Wire Grid Deck
        • ND......Nominal Frame Depth 18" to 30" in 2" increments (457 mm to 762 mm in 51 mm Increments)
        • NL......Nominal Piece Length 24", 36", 48" (610 mm, 914 mm, 1219 mm)
        • 3......Grid Size 3" OC (76 mm)
        HMWMS(ND)(NL)-3-Hypermaxi Wire Grid Decks
        Deck Supports are not included. Order two deck supports per piece.

         Wall Section Hypermaxi Attachment Kit

        • Mount wall sections to the end of a Hypermaxi run as an end cap
        • Each unit attaches to the slotting of the Wall Section Uprights and bolts through the slotting of the Hypermaxi Uprights
        • Includes hardware and two complete mounting brackets
        Part Number: WSHMAK
        • WSHMAK.....Wall Section Hypermaxi Attachment Kit
        WSHMAK-Wall Section Hypermaxi Attachment Kit

         Wide Span Deck Support, Economy

        • Formed steel component easily rotates into place, ties beams together and supports deck
        • Galvanized finish only
        Part Number: RDWSDSE(ND)
        • RD......Regular-Duty
        • WSDS......Wide Span Deck Support
        • E......Economy
        • ND......Nominal Depth 18" to 48" in 6" increments (457 mm to 1219 mm in 152 mm increments)
        RDWSDSE(ND)-Wide Span Deck Support, Economy

        A TL Outrigger Freestanding Display Kickplate

        • Required in each section
        • Delete Kickplate [KP-(NL)(NH)] or Open Front Kickplate [OFK-(NL)(NH)], when using TLOFKO
        Part Number: TLOFK(TYPE)-(ND)
        • TLOFK..... TL Outrigger Freestanding Display Kickplate
        • TYPE..... C=Close Kickplate O=Open Kickplate
        • ND.....Nominal Depth 36" or 48" (914 mm or 1219 mm)
        TLOFK(TYPE)-(ND)-TL Outrigger Freestanding Display Kickplate

        B Outrigger for Maxi Line Base Shoe Extender

        • Fits over standard Maxi Line Base Shoe [BS-(ND)]
        • Order Base Shoe 2" (51 mm) less that Base Shelf depth and 5" (127 mm) high
        • Example: 24" deep base = 22" Base Shoe BSSIL-22
        Part Number: ORMLBSEI(TYPE)(ND)
        • ORML.....Outrigger for Maxi Line
        • BSE..... Base Shoe Extender
        • TYPE..... I=Intermediate
        • ND.....Nominal Width 12", 24", 36" or 48" (305 mm, 610 mm, 914 mm or 1219 mm)
        ORMLBSEI(TYPE)(ND)-Outrigger for Maxi Line Base Shoe Extender

        C TL Outrigger Dress Kit

        • End cover slides over Base Shoe Extender
        • Base End Covers [BEC-(ND)-(NH)] not required
        Part Number: TLODK-(ND)
        • TLODK..... TL Outrigger Dress Kit
        • ND.....Nominal Depth 12", 24", 36" or 48" (305 mm, 610 mm, 914 mm or 1219 mm)
        TLODK-(ND)-TL Outrigger Dress Kit

        D TL Outrigger Shelf SupportAssembly

        • Supports TL Outrigger Shelf Deck [TLOSD-(NW)12]
        • One required for each left-hand and righthand side of shelf
        Part Number: TLOSS-(ND)
        • TLOSS..... TL Outrigger Shelf Support Assembly
        • ND.....Nominal Depth 12", 24", 36" or 48" (305 mm, 610 mm, 914 mm or 1219 mm)
        TLOSS-(ND)-TL Outrigger Shelf SupportAssembly

        E TL T-Rack Top and Bottom Tie

        • One required at the top for each section
        Part Number: TLTRTAZ(NW)
        • TLTRTA..... TL T-Rack Top and Bottom Tie
        • Z.....No Back
        • NW.....Nominal Depth 35.5=36" (914 mm) 47.5=48" (1219 mm)
        TLTRTAZ(NW)-TL T-Rack Top and Bottom Tie

        F Outrigger for Maxi Line Post

        • Available with slotting on both sides or no front slotting on the front-facing post
        • Load capacity is 1250 lbs
        Part Number: ORMLP(NH)(OPT)
        • ORMLP.....Outrigger for Maxi Line Post
        • NH.....Nominal Height 78"-108" in 6" increments 1981 mm-2743 mm in 152 mm increments
        • OPT..... Blank=Slotted Both Sides NFS=No Front Slotting
        ORMLP(NH)(OPT)-Outrigger for Maxi Line Post

        G TL Outrigger Shelf Deck

        • Shelves are 12" (305 mm) deep
        • For a 24" deep shelf, order two TL Outrigger Shelf Deck
        • The same shelf is used for center and base shelves
        • Load capacity is 300 lbs per 12" (305 mm) shelf
        Part Number: TLOSD-(NW)12
        • TLOSD..... TL Outrigger Shelf Deck
        • NW.....Nominal Depth 12", 36" or 48" (610 mm, 914 mm, or 1219 mm)
        • 12.....Nominal Depth 12" (305 mm)
        TLOSD-(NW)12-TL Outrigger Shelf Deck

      • Accessories for Hypermaxi System

        Reveal/Hide Accessories

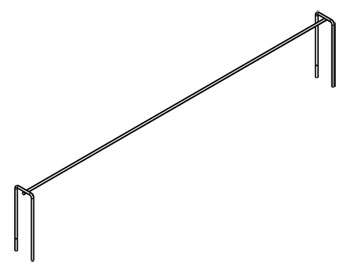

        Gravity Pop Center Divider

        • Center dividers stabilize soft drinks and organize the display
        Part Number: GRAVITYPOPDC-(ND)(NH)
        • GRAVITYPOP...... Gravity Pop
        • DC...... Divider Center
        • ND...... Nominal Depth 24", 36", 42", 44", 48" (610 mm, 914 mm, 1067 mm, 1118 mm, 1219 mm)
        • NH......Nominal Height 04=04" (102 mm) Blank=06" (152 mm)
        GRAVITYPOPDC-(ND)(NH)-Gravity Pop Center Divider

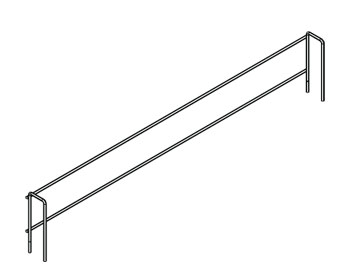

        Gravity Pop End Divider

        • End dividers stabilize soft drinks and organize the display
        Part Number: GRAVITYPOPDE-(ND)(NH)
        • GRAVITYPOP...... Gravity Pop
        • DE...... Divider End
        • ND...... Nominal Depth 24", 36", 42", 44", 48" (610 mm, 914 mm, 1067 mm, 1118 mm, 1219 mm)
        • NH......Nominal Height 04=04" (102 mm) Blank=06" (152 mm)
        GRAVITYPOPDE-(ND)(NH)-Gravity Pop End Divider

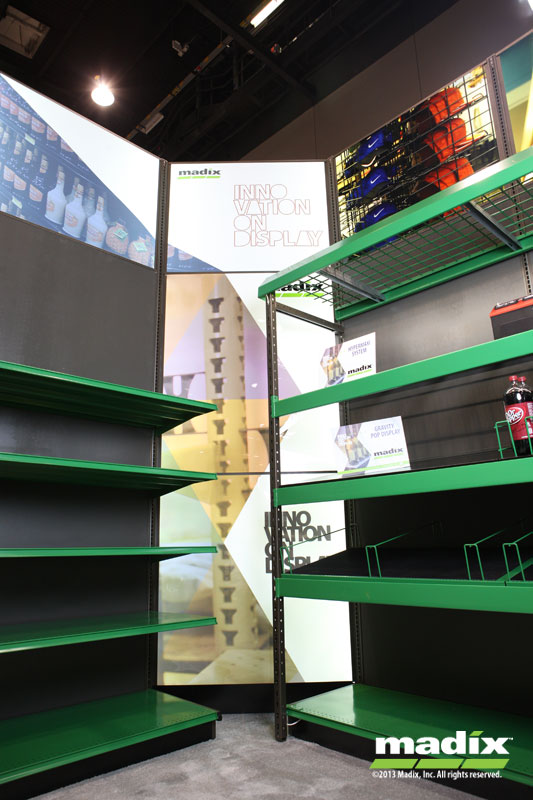

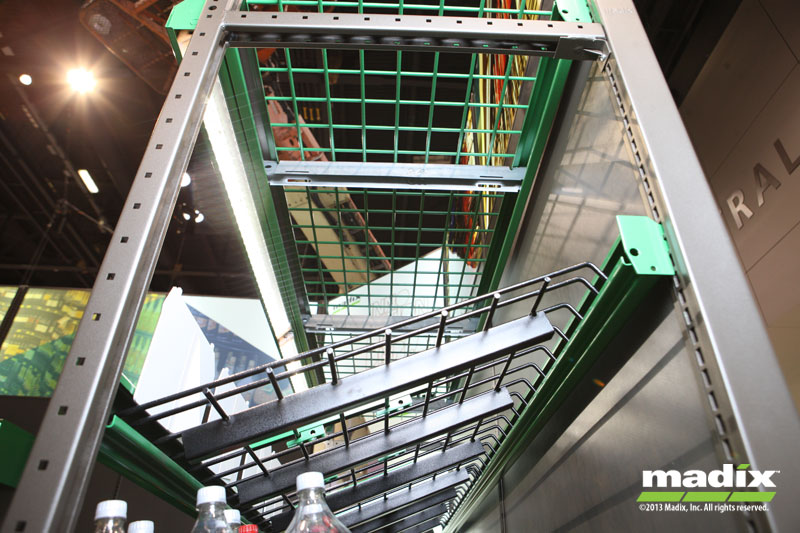

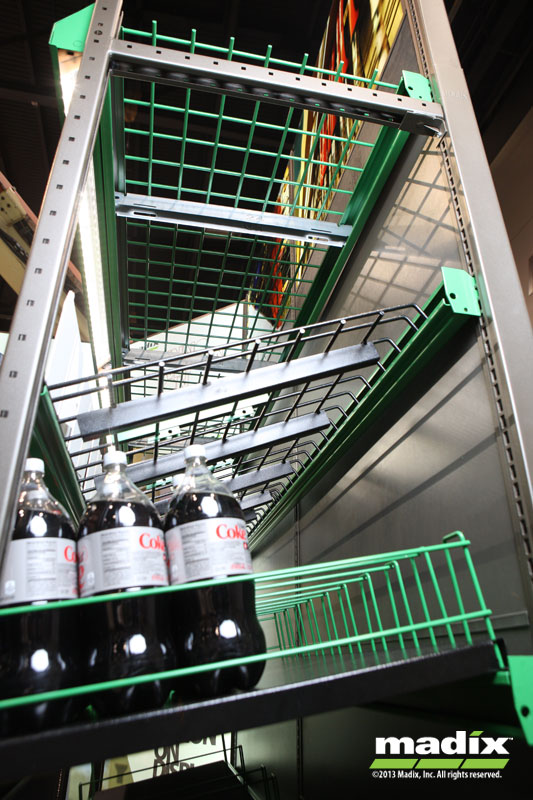

        Gravity Pop Shelf

        • Features downtilt positioning
        • Special finish allows soft drinks to gravity feed without rollers or other mechanical devices
        • Easy clean up, reducing maintenance cost
        • Gravity Pop Center and End Dividers ordered separately
        Part Number: GRAVITYPOPS(ND)(NW)WH
        • GRAVITYPOP...... Gravity Pop
        • S...... Shelf Only
        • ND...... Nominal Depth 24", 30", 32", 36", 42", 44", 48" (610 mm, 762 mm, 813 mm, 914 mm, 1067 mm, 1118 mm, 1219 mm)
        • NW...... Nominal Width 36", 48", 60", 72", 96" (914 mm, 1219 mm, 1524 mm, 1829 mm, 2438 mm)
        • WH......Width Hypermaxi
        GRAVITYPOPS(ND)(NW)WH-Gravity Pop Shelf

        Hypermaxi Sign Holder Frame

        • Unit mounts onto Maxi Line Gondola
        • Unit projects 2" (51 mm) past nominal depth of shelf, for flush front mounting with cover shelf, order top shelf 2" (51 mm) shorter
        • Provides graphic mounting and hides overstock
        • Nominal Signage Height 21.75" (552 mm)
        • Customer provides signage
        Part Number: WS(OPT1)SHF(NW)(NH)(OPT2)
        • WS..... Wide Span
        • OPT1..... Blank=Wide Span Length HM=Hypermaxi Length
        • SHF..... Sign Holder Frame
        • NW..... Nominal Width 48", 60", 96", 98", 120", 144" (1219 mm, 1524 mm, 2438 mm, 2489 mm, 3048 mm, 3658 mm)
        • NH..... Nominal Height 36" or 48" (914 mm or 1219 mm)
        • OPT2..... Mounting Options Blank=Beam Mount USM=Upper Shelf Mount
        WS(OPT1)SHF(NW)(NH)(OPT2)-Hypermaxi Sign Holder Frame
      Madix Inc.
