The Shelf that Sorts Itself

NEW @FRONT GEN 5 SYSTEM

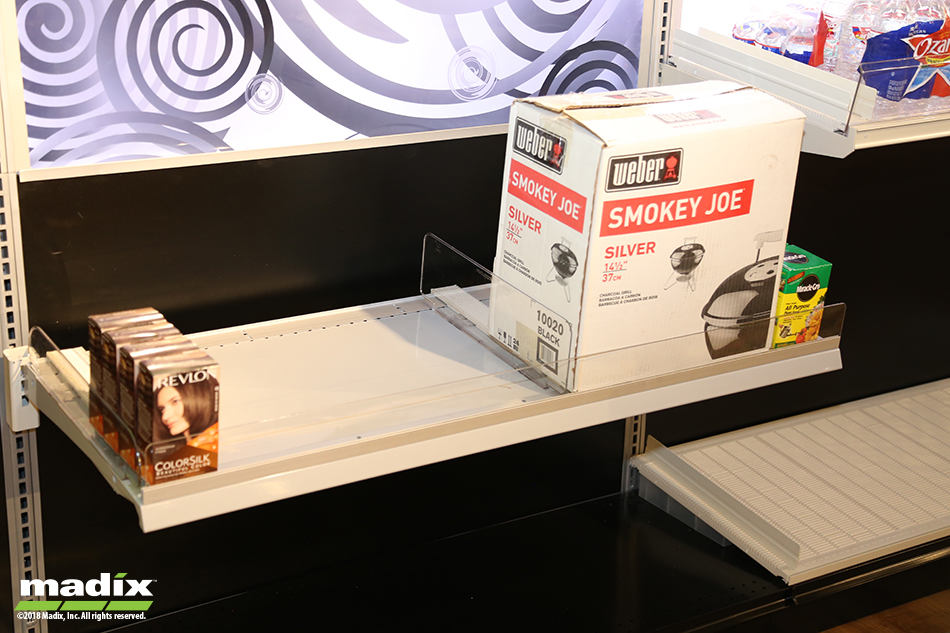

@Front Roller Shelf Generation 5

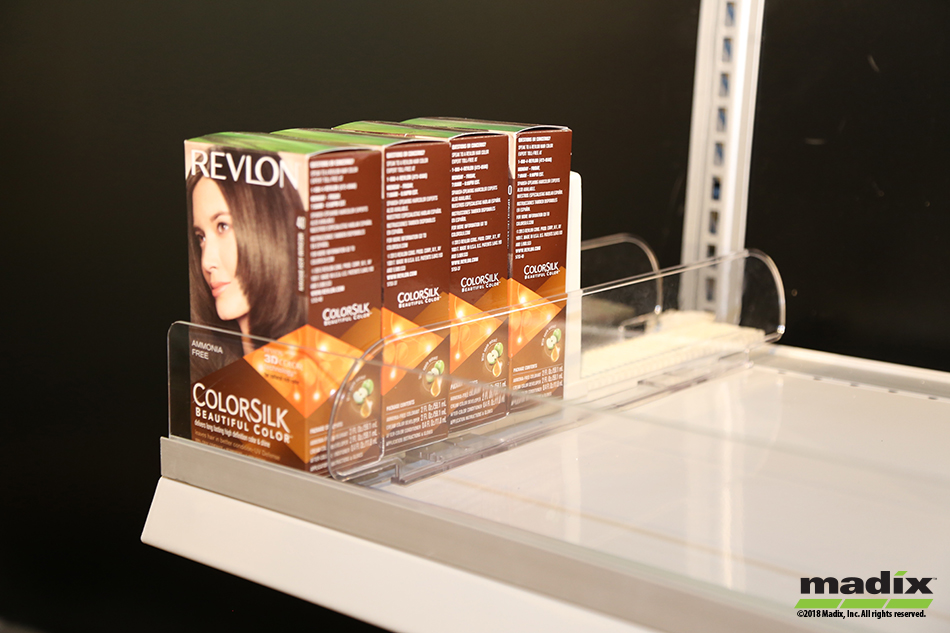

  • Roller systems are ideal for high volume or high margin merchandise; Madix @Front G5 is an economical alternative to full roller mats. @Front G5 converts Standard Upper Shelf [SUS-(NW)(ND)], Straight-in Insertion Three Position [STP(NW)(ND)], or other standard shelves to gravity feed, eliminating the labor expense of fronting shelves, making merchandise easily accessible to customers, and ensuring stock rotation while reducing out-of-stocks.

    Durable roller segments replaces spring pusher systems and reduce shrink, miss stocked items, and are flexible for merchandising changes.

    Order components for a complete system:

    @Front Pitch Converter: Required for Standard Upper Shelf[SUS-(NW)(ND)], Straight-in Insertion [STP(NW)(ND)] or other shelves to create a downtilt of 6°-7°. (Standard 15° downtilt is too steep for roller systems.)

    @Front G5 Rail Set: Front rail has slot for plastic front mounting, both front and rear have provisions for roller track snap-fit. Includes pine tree fasteners for attachment to standard shelf perforations.

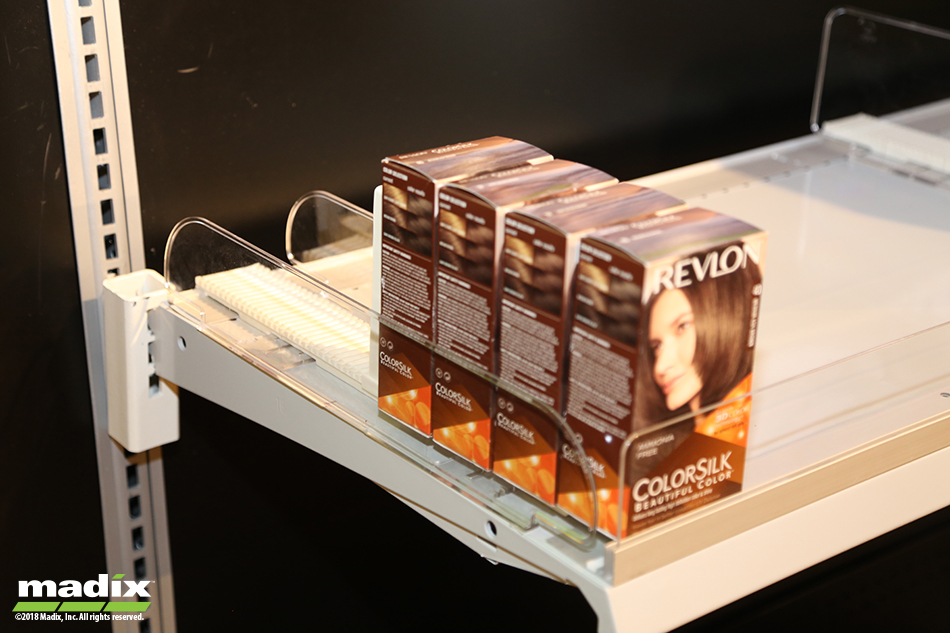

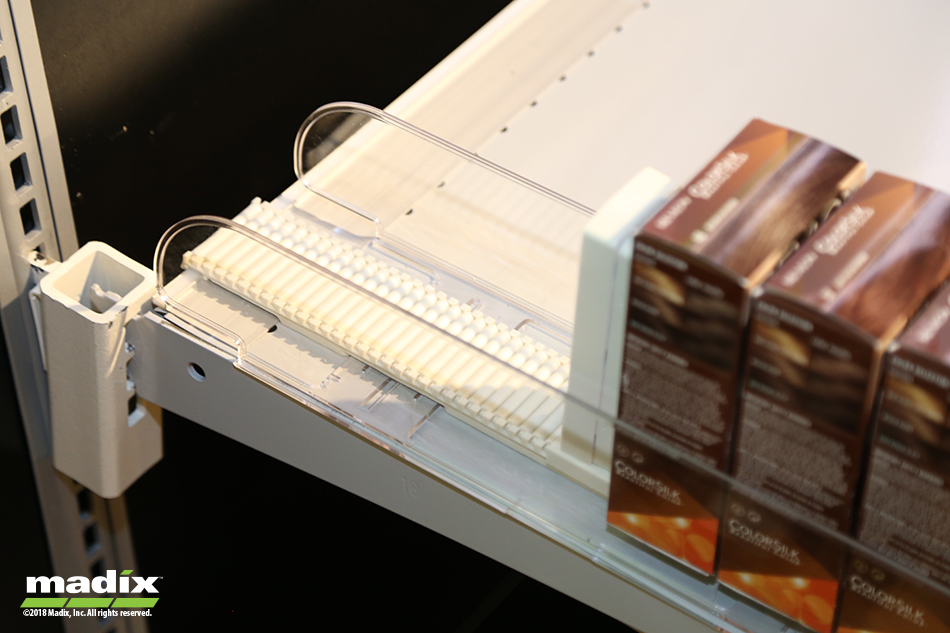

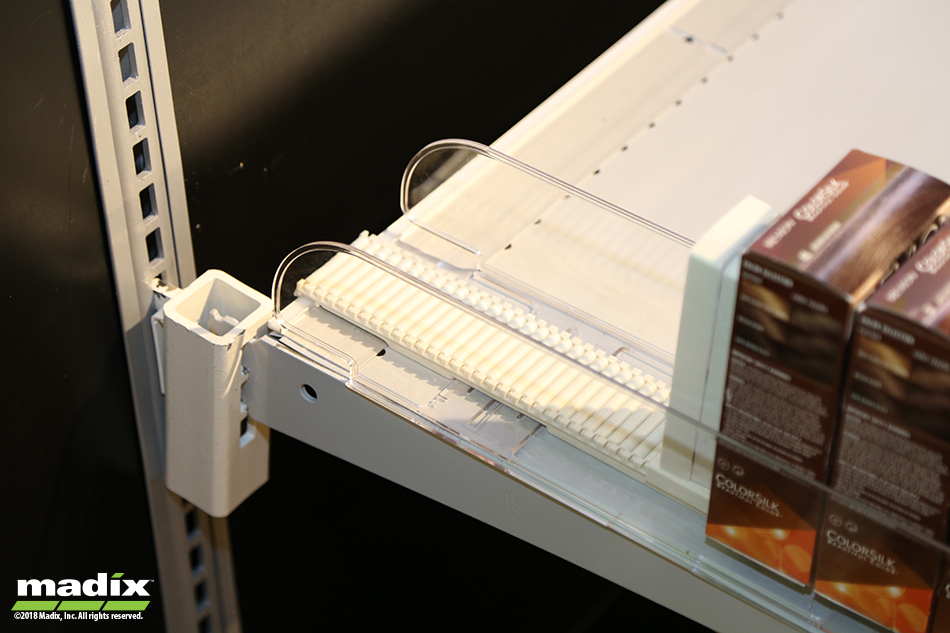

    @Front G5 Roller Track: Single strip of rollers for smaller merchandise, use two or more for larger or heavier applications.

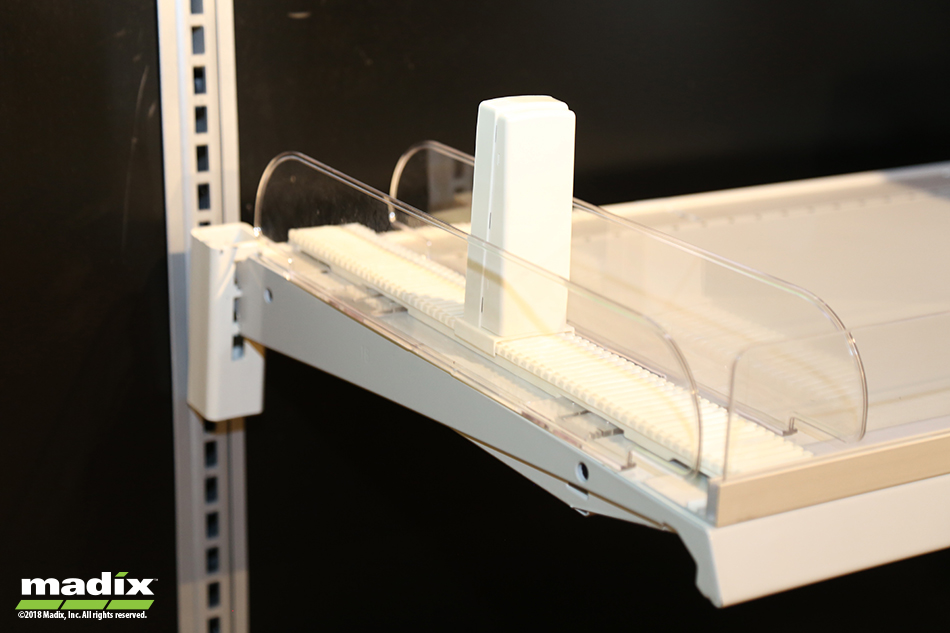

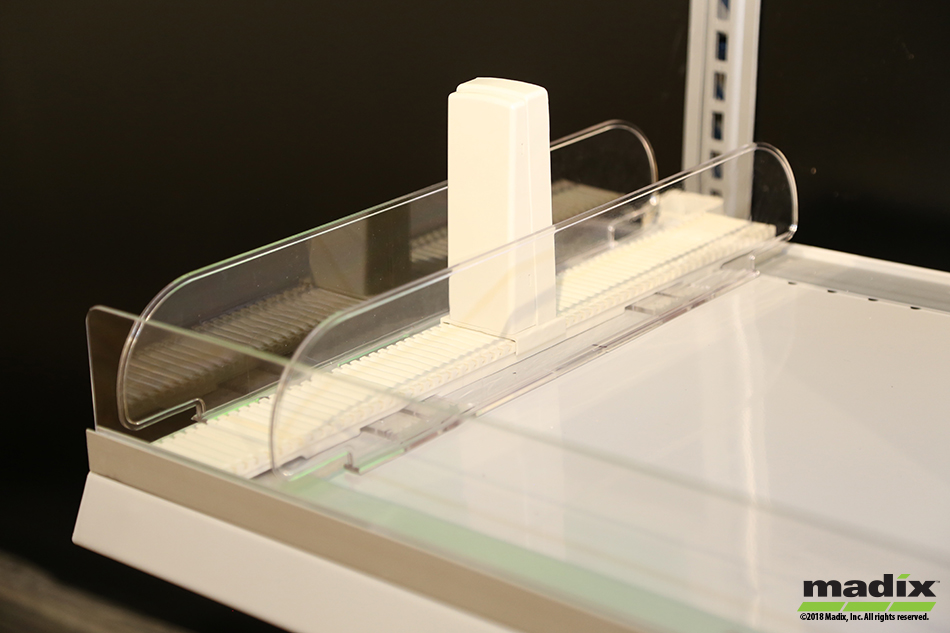

    @Front G5 Divider: Divider snaps into roller track to retain merchandise, adjusts left or right using integral ratchet. Order in same depth as Roller Track.

    @Front Plastic Front Retainer: Clear plastic front available in 2", 3", or 4" (51 mm, 76 mm, or 102 mm) heights.

  • GEN 5 Part Details

    @Front Gen5 Divider

    @Front Gen5 Divider

    AFG5D(NH)(ND)-(COLOR)

    @Front Gen5 Driver

    @Front Gen5 Driver

    AFG5DR-(COLOR)

    @Front Gen5 Rail Set (Front and Rear)

    @Front Gen5 Rail Set (Front and Rear)

    AFG5RS48

    @Front Gen5 Roller Track

    @Front Gen5 Roller Track

    AFG5RT(ND)-(COLOR)

    @Front Shelf Pitch Converter

    @Front Shelf Pitch Converter

    AFPC-(COLOR)

    @Front Shelf Plastic Front

    @Front Shelf Plastic Front

    AFRSPF(NH)48

    @Front Shelf Plastic Front

    @Front Shelf Plastic Front

    AFRSPF(NH)48H

    Downtilt Shelf 7°

    Downtilt Shelf 7°

    DTS7-(NW)(ND)

THE ORIGINAL @FRONT SHELF

  • @Front Roller Shelf

    The Shelf that Sorts Itself

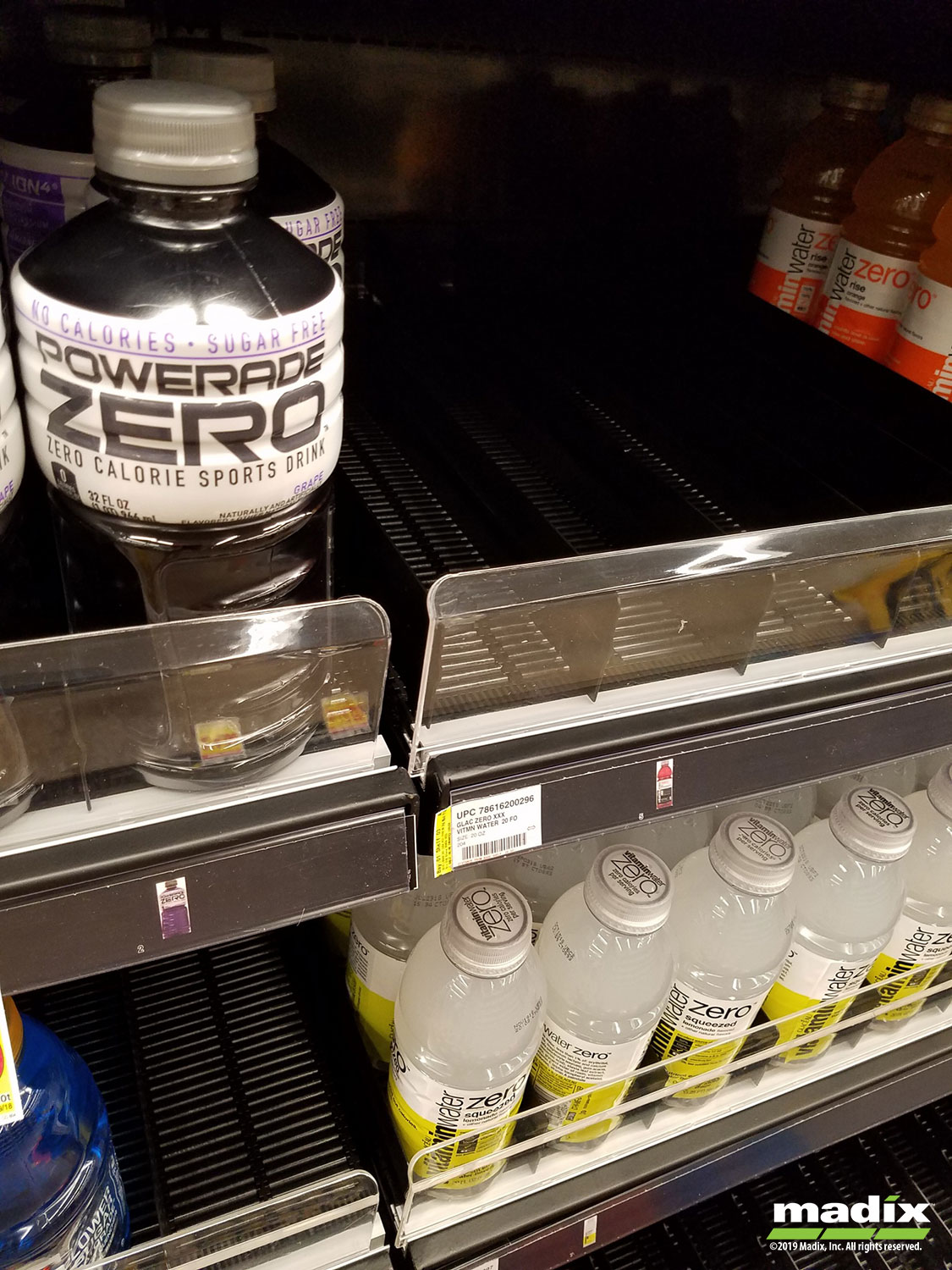

    Create the look of a perfectly stocked shelf instantly with @Front, Madix’s gravity-feed, roller-shelf system. @Front replaces traditional slip-mat and spring-pusher options, giving you a more efficient, user-friendly solution for auto facing, fronting, and filling your display.

    • Saves manual labor and time @Front works with gravity to automatically feed merchandise to the front of the shelf as it’s pulled.
    • Patented design Features plastic rollers fully integrated with shelf from top to bottom (spare rollers included).
    • Adjustable metal dividers available Perfect for bottled, canned, and boxed goods of all sizes and shapes.
    • Requires less space than slip-mat or spring-pusher systems
      • @Front = 5° downtilt
      • Spring-Pusher/Slip-Mat = 10° - 15° Downtilt
    • Easy to clean Wipe with damp cloth to remove light dust and debris or remove entire shelf for thorough washing.
    • Prevents damage to merchandise Customers can return unwanted merchandise back to the shelf with little to no resistance (no crumpling, crushing, tearing, or other damages to packaging).
    • Less “misplaced merchandise” No resistance also means customers are more likely to return unwanted merchandise back to its proper location.
    • @Front Shelf
    • @Front Shelf
      @Front Shelf
    • Madix's new @Front Gravity Feed Shelf System with Dividers and Fronts

  • Part Details

    @Front Deck

    @Front Deck

    AFRD(NW)(ND)

    @Front Shelf

    @Front Shelf

    AFRSF48(ND)

    @Front Shelf Mat

    @Front Shelf Mat

    AFRSM48(ND)-(COLOR)

    @Front Shelf Metal Divider

    @Front Shelf Metal Divider

    AFRSD(NH)(ND)

    @Front Shelf Plastic Front

    @Front Shelf Plastic Front

    AFRSPF(NH)48

    @Front Shelf Plastic Front (Heavy-duty)

    @Front Shelf Plastic Front (Heavy-duty)

    AFRSPF(NH)48H
