  • LEDge Light Box

    Constructed from light modules built by an LED industry leader, the LEDge Light Box illuminates your signage like no other. Each Light Box boasts over 400 lumens per square foot of signage while consuming less than 4 watts of power, providing stunning backlight for eye-catching graphics more efficiently than ever before.

    • Seamless integration with all LEDge Light products and accessories
    • Light box can be set flush to the face of the gondola, or used as a canopy when mounted on brackets
    • Can be daisy-chained to a single power supply
    • Plug ’n play connections– no electrician required (Class 2 system)
    • Ability to change graphics in seconds
    • Over 400 lumens per square foot of signage
    • Less than 4 watts of power consumption per square foot of signage
    • 7 year warranty, UL listed

  • Gallery

  • LEDge Light Box is compatible with all Madix LED shelf lighting

  • Components for LEDge Light Box

    Reveal/Hide Components

     LEDge Light Box

    • Seamless integration with all LEDge Light products and accessories
    • Light box can be set flush to the face of the gondola, or used as a canopy when mounted on brackets. Can be daisy-chained to a single power supply
    • Plug ’n play connections– no electrician required (Class 2 system)
    • Ability to change graphics in seconds. Over 400 lumens per square foot of signage.
    • Less than 4 watts of power consumption per square foot of signage. 7 year warranty. UL listed
    • True photographic/duratrans film may be used in front of panels to create illuminated signage (8 mil recommended)
    • Size for graphics: Nominal Height x Nominal Width - .188" (5 mm) Example: 12" x 47.812" (305 mm x 1214 mm)
    • Set viewable area of graphics with recommended 1" (25 mm) padding to avoid top and bottom lip of the light box. Graphics not provided by Madix.

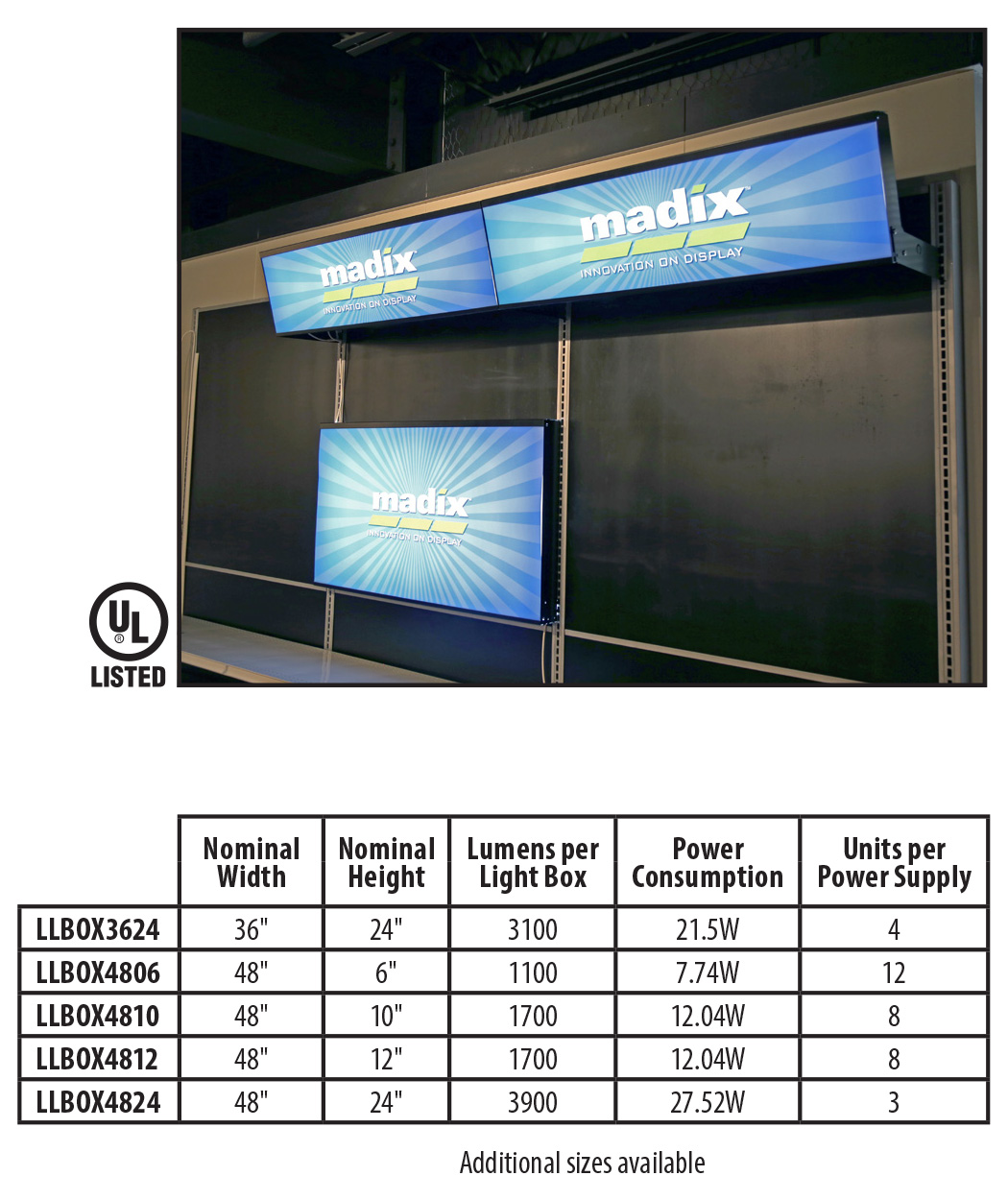

    Part Number: LLBOX(NW)(NH)
    • LLBOX..... LEDge Light Box
    • NW.....Nominal Width 36" or 48" (914 mm or 1219 mm)
    • NH.....Nominal Height 12" to 24" in 2" increments (305 mm to 610 mm in
    LLBOX(NW)(NH)-LEDge Light Box

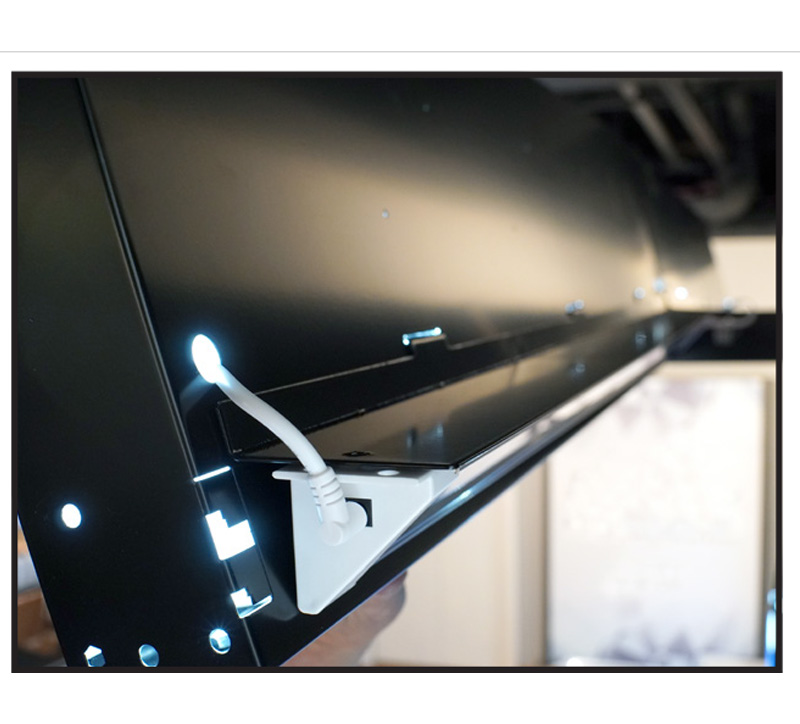

     LEDge Light Box Beam Light Mount

    • Additional bracket allows a Beam LED Canopy Light [LLB(NL)] to mount to the rear of the light box for use as a canopy light
    • Works in both vertical or at a 15 deg down-tilt canopy position
    Part Number: LLBOXBLM(NW)
    • LLBOX..... LEDge Light Box
    • BLM..... Beam Light Mount
    • NW.....Nominal Width 36" or 48" (914 mm or 1219 mm)
    LLBOXBLM(NW)-LEDge Light Box Beam Light Mount

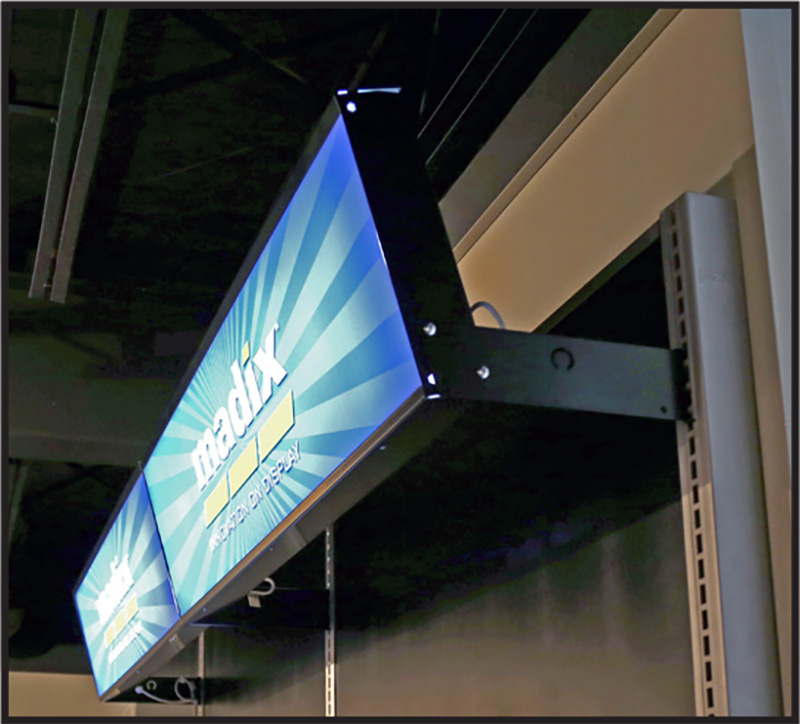

     LEDge Light Box Bracket

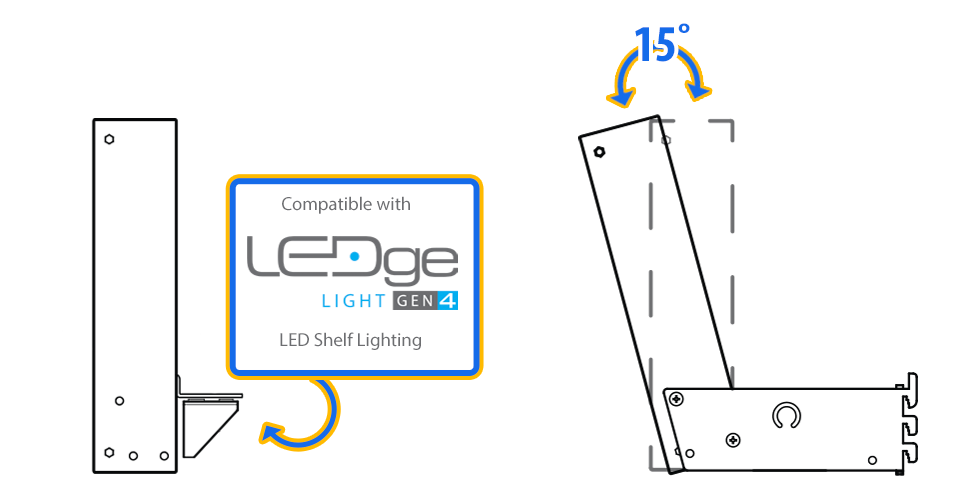

    • Canopy angle can be set perpendicular to the ground or at a 15 deg down-tilt position
    Part Number: LLBOXB(ND)
    • LLBOX..... LEDge Light Box
    • B..... Bracket
    • ND.....Nominal Depth 12" to 24" in 2" increments (305 mm to 610 mm in 51 mm increments)
    LLBOXB(ND)-LEDge Light Box Bracket
