FITTING ROOMS

Tube Line . Maxi Line

  • MAXIMIZE SALES FLOOR REAL ESTATE

    Madix offers several types of Fitting Rooms. Each style offers flexible size configurations, accommodates ADA requirements and allows for multiple bays. Madix's fitting rooms help maximize sales floor real estate. Each fitting room can be constructed to allow outside walls to display merchandise and enhance product display. Simple to install and dismantle, Madix's fitting room options can easily be removed or relocated within the store.

Fitting Rooms
  • Tube Line Fitting Room

    TUBE LINE FITTING ROOM

    Debuted at GlobalShop 2016, the Tube Line Fitting Room allows for modular assembly with interlocking panels. The specialized upright extensions allow for the use of hundreds of standard Maxi and Tube Line shelves and hanging accessories.

    Jump to Parts Detail

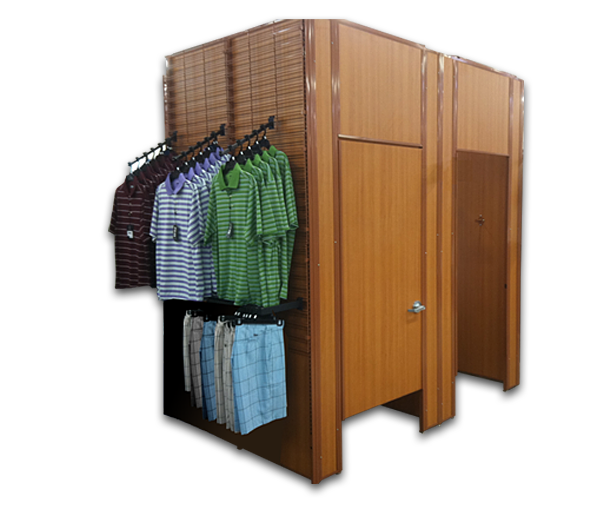

  • Maxi Line Fitting Room

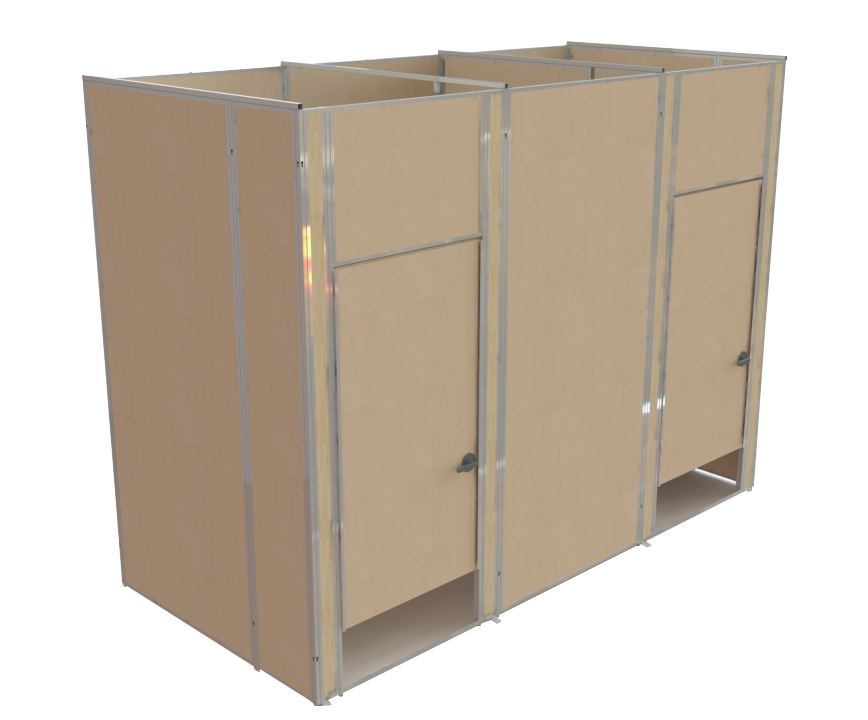

    MAXI LINE FITTING ROOM

    The Maxi Line Fitting Room is constructed from standard Madix parts to help maximize sales floor real estate. Each fitting room can be constructed to allow outside walls to display merchandise and enhance product display. Simple to install and dismantle, Madix's fitting room options can easily be removed or relocated within the store.

    Jump to Parts Detail

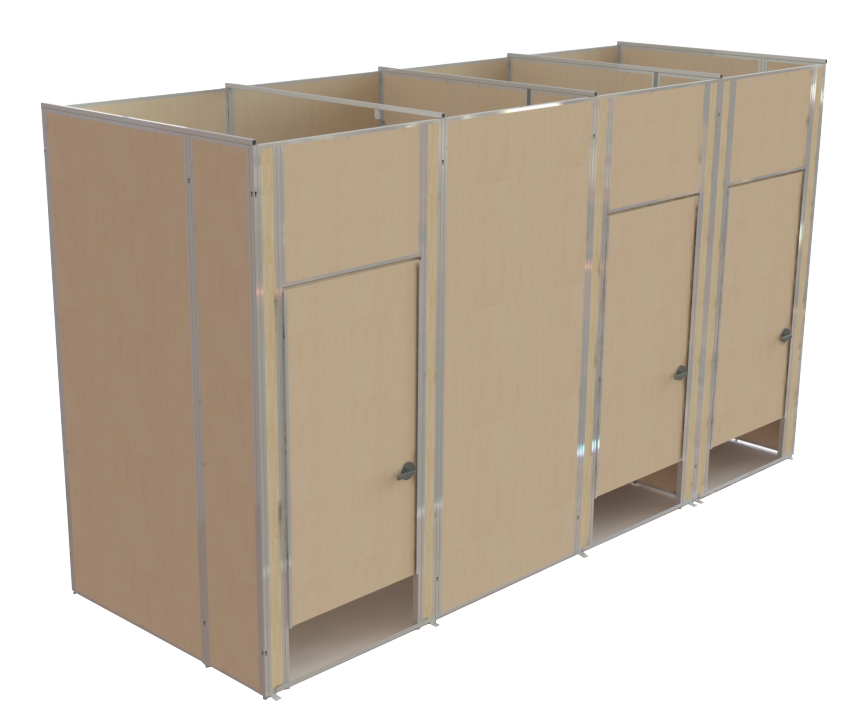

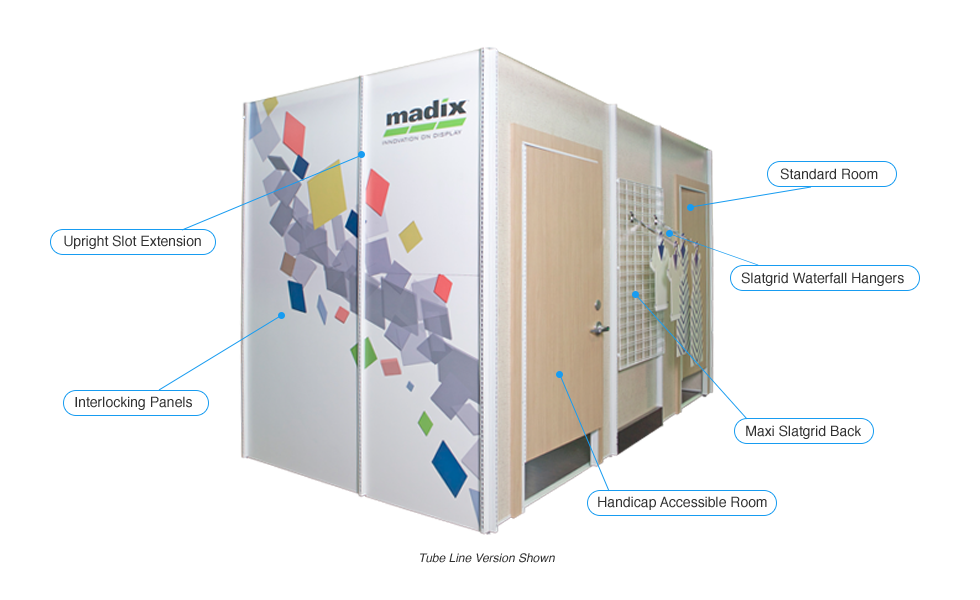

Fitting Room callout of features

    Parts Detail

    Tube Line Fitting Room

  • View sample assembly parts list

    Show/Hide Parts Detail

    No components available.

    Parts Detail

    Maxi Line Fitting Room

  • View sample assembly parts list

    Show/Hide Parts Detail
    Fitting Room
    Part Number Description Quantity
    A BU-96 Basic Upright 10
    B EU-24 Extension Upright 10
    C SL-4 Lower Spanner 4' 4
    D SL-5 Lower Spanner 5' 1
    E SS-4 Splicer Spanner 4' 12
    F SS-5 Splicer Spanner 5' 3
    G STL-4 Top Spanner 4' 6
    H STL-5 Top Spanner 5' 6
    I OBS-4 Open Back Stiffener 4' 4
    J OBS-5 Open Back Stiffener 5' 1
    K OBSKP-48 Open Back Kickplate 4' 4
    L OBSKP-60 Open Back Kickplate 5' 1
    M BH-436 Hardboard Back 48" x 36" 4
    N BH-536 Hardboard Back 60"x36" 1
    O BXH-430 Hardboard Back Extension 48"x36" 8
    P BXH-530 Hardboard Back Extension 60"x36" 2
    Q BXHL-424 Hardboard Back Extension Laminate 48"x36" 8
    R BXHL-524 Hardboard Back Extension Laminate 60"x36" 2
    S MEBP-4836 Metal Extension Pegboard 48"x36" 4
    T MEBP-6036 Metal Extension Pegboard 60"x36" 1
    U MEBP-4830 Metal Extension Pegboard 48"x30" 8
    V MEBP-6030 Metal Extension Pegboard 60"x30" 2
    W TLEG-16 T-Leg 6
    X DRTRS Dressing Room Top Rail Stabilizer 2
    Y DRUFC Dressing Room Upright Face Cover 120" 2
    Z DRICF Dressing Room Inside Corner Filler 120" 4
    AA DROCF Dressing Room Outside Corner Filler 120" 4
    BB DRUS Dressing Room Upright Spacer 4
    CC DRIA Dressing Room Inside Anchor 2
    DD DROA Dressing Room Outside Anchor 2
    EE SFA-RD-1 Seismic Floor Anchors 6
    FF SFA-EB-1 Seismic Floor Anchor Expansion Bolts 12
    GG DRDP-60 Dressing Room Door Panel 1
    HH DPS Dressing Panel Splicer 1
    II DRDPR-LH Dressing Room Door Panel Retainer - Left Hand 1
    JJ DRDPR-RH Dressing Room Door Panel Retainer - Right Hand 1
    KK DRDPS Dressing Room Divider Panel Stabilizer 2
    LL DR88HP Dressing Room Hardware Pack 1

     Back

    • Hardboard or pegboard available
    Part Number: B(TYPE)-(NW)(NH)
    • B..... Back
    • TYPE.....P=Pegboard H=Hardboard
    • NW..... Nominal Width 4' or 5' (1219 mm or 1524 mm)
    • NH..... Nominal Height 36" to 72" in 6" increments (914 mm to 1829 mm in 152 mm increments)
    B(TYPE)-(NW)(NH)-Back

     Back, Extension

    • Hardboard or pegboard available
    Part Number: BX(TYPE)-(NW)(NH)
    • BX..... Back Extension
    • TYPE..... P=Pegboard H=Hardboard
    • NW..... Nominal Width 4' or 5' (1219 mm or 1524 mm)
    • NH..... Nominal Height 36" to 72" in 6" increments (914 mm to 1829 mm in 152 mm increments)
    BX(TYPE)-(NW)(NH)-Back, Extension

     Basic Upright

    • Slotted 1" (25 mm) for flexibility plus maximum space
    • Compromised of heavy gauge, high tensile steel components welded into a single unit with a 15,000 inch-pound rating
    • All Basic Uprights have an integral leveler
    • Kickplates of either closed or open type (or reinforced base shoes) must be installed on shelving runs
    Part Number: BU-(AH)
    • BU..... Basic Upright
    • AH.....Actual Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
    BU-(AH)-Basic Upright

     Dressing Room Corner Crossbar

    • Connects interior wall between dressing rooms
    • Required for double dressing rooms
    Part Number: DRCCB
    • DRCCB..... Dressing Room Corner Crossbar
    DRCCB-Dressing Room Corner Crossbar

     Dressing Room Divider Panel Stabilizer

    • Connects interior walls
    Part Number: DRDPS
    • DRDPS..... Dressing Room Divider Panel Stabilizer
    DRDPS-Dressing Room Divider Panel Stabilizer

     Dressing Room Door Panel

    • Door customer-supplied
    Part Number: DRDP(NW)
    • DRDP..... Dressing Room Door Panel
    • NW..... Nominal Width 48" or 60" (1219 mm or 1524 mm)
    DRDP(NW)-Dressing Room Door Panel

     Dressing Room Door Panel Retainer

    • Use when installing double fitting rooms
    • Install left- and right-hand retainers into interior of walls
    Part Number: DRDPR-(HAND)
    • DRDPR..... Dressing Room Panel Retainer
    • HAND..... LH=Left-Hand RH=Right-Hand
    DRDPR-(HAND)-Dressing Room Door Panel Retainer

     Dressing Room Door Panel Splicer

    • Mounts above dressing room door
    Part Number: DPS-(NW)
    • DPS..... Door Panel Splicer
    • NW..... Nominal Width 48" (1219 mm) Blank=Standard 60" (1524 mm)
    DPS-(NW)-Dressing Room Door Panel Splicer

     Dressing Room Hardware Pack

    • Miscellaneous parts required for installation
    Part Number: DR88HP
    • DR88HP..... Dressing Room Hardware Pack
    No Image Available

     Dressing Room Inside Anchor

    • Bolts to floor when required
    Part Number: DRIA
    • DRIA..... Dressing Room Inside Anchor
    DRIA-Dressing Room Inside Anchor

     Dressing Room Inside Corner Filler

    • Covers slots to prevent line of sight in each corner
    • One for each inside corner
    Part Number: DRICF-(NH)
    • DRICF..... Dressing Room Inside Corner Filler
    • NH..... Nominal Height 96", 102", 108", 112" (2438 mm, 2591 mm, 2743 mm, 2845 mm) Blank=Standard 120" (3048 mm)
    DRICF-(NH)-Dressing Room Inside Corner Filler

     Dressing Room Outside Anchor

    • Bolts to floor when required
    Part Number: DROA
    • DROA..... Dressing Room Outside Anchor
    DROA-Dressing Room Outside Anchor

     Dressing Room Outside Corner Filler

    • Gives clean look to outside corners
    Part Number: DROCF-(NH)
    • DROCF..... Dressing Room Outside Corner Filler
    • NH..... Nominal Height 96", 102", 108", 112" (2438 mm, 2591 mm, 2743 mm, 2845 mm) Blank=Standard 120" (3048 mm)
    DROCF-(NH)-Dressing Room Outside Corner Filler

     Dressing Room Top Rail Stabilizer

    • Connects tops of outside wall sections
    Part Number: DRTRS
    • DRTRS..... Dressing Room Top Rail Stabilizer
    DRTRS-Dressing Room Top Rail Stabilizer

     Dressing Room Upright Face Cover

    • Covers slots to prevent line of sight when upright is exposed on wall section
    Part Number: DRUFC-(NH)
    • DRUFC..... Dressing Room Upright Face Cover
    • NH..... Nominal Height 96", 102", 108", 112" (2438 mm, 2591 mm, 2743 mm, 2845 mm) Blank=Standard 120" (3048 mm)
    DRUFC-(NH)-Dressing Room Upright Face Cover

     Dressing Room Upright Spacer

    • Four required for each outside corner
    • Secures two corner uprights
    Part Number: DRUS
    • DRUS..... Dressing Room Upright Spacer
    DRUS-Dressing Room Upright Spacer

     Extension Upright

    • Connector inserts easily into top of shelving section Upright
    • Set screws expand the connector, solidly aligning assembly
    Part Number: EU-(NH)
    • EU..... Extension Upright
    • NH...... Nominal Height 6" to 54" in 6" increments (152 mm to 1371 mm in 152 mm increments)
    EU-(NH)-Extension Upright

     Lower Spanner

    • "Snap-in" spanner secures uprights at equal spacing and supports back panels
    • Electrical knockouts
    • For 2' x 3': NW 18" (NW 457 mm)
    • For 3' x 4': NW 24" (NW 610 mm)
    Part Number: SL-(NW)
    • SL..... Lower Spanner
    • NW.....Nominal Width 2' (610 mm )
    SL-(NW)-Lower Spanner

     Metal Back Panel

    • Heavy-gauge metal panel
    • Coined perforations 1" (25 mm) OC
    • Durable
    Part Number: MBP-(NW)(NH)-(OPT)
    • MBP..... Metal Back Panel
    • NW..... Nominal Width 3' or 4' (914 mm or 1219 mm)
    • NH..... Nominal Height 36" to 72" in 6" increments (914 mm to 1829 mm in 152 mm increments)
    • OPT..... NP=Non-perforated Blank=Perforated
    No Image Available
    Requires the use of Slatwall spanners, SCS-(NW)

     Metal Extension Back Panel

    • Use above the lower panels in Maxi Line sections 78" (1981 mm) tall or taller
    Part Number: MEBP-(NW)(NH)-(OPT)
    • MEBP..... Metal Extension Back Panel
    • NW..... Nominal Width 36" or 48" (914 mm or 1219 mm)
    • NH..... Nominal Height 36", 42", 48", 54" (914 mm, 1067 mm, 1219 mm, 1372 mm)
    Options
    • OPT..... NP=Non-perforated Blank=Perforated
    MEBP-(NW)(NH)-(OPT)-Metal Extension Back Panel

     Open Back Stiffener

    • Electrical knockouts
    • Bolts in place adding stability
    Part Number: OBS-(NW)
    • OBS..... Open Back Stiffener
    • NW..... Nominal Width 4' or 5' (1219 mm or 1524 mm)
    OBS-(NW)-Open Back Stiffener

     Open Back Stiffener Kickplate

      Part Number: OBSKP-(NW)
      • OBSKP..... Open Back Stiffener Kickplate
      • NW..... Nominal Width 24", 30", 36", 48", 60" (610 mm, 762 mm, 914 mm, 1524 mm)
      OBSKP-(NW)-Open Back Stiffener Kickplate

       Seismic Floor Anchors Expansion Bolts

      • ICBO approved
      • 3/8"-16 x 3 ½"
      • Order two bolts per Seismic Floor Anchor, regular or heavy-duty
      Part Number: SFA-EB-1
      • SFA..... Seismic Floor Anchors
      • EB..... Expansion Bolt
      • 1..... 1 Pack
      SFA-EB-1-Seismic Floor Anchors Expansion Bolts

       Seismic Floor Anchors, Regular-Duty

      • For use when local building codes require anchoring Base Shoes and/or standard Uprights to floor
      • Level as required prior to anchoring floor
      • Requires two expansion bolts for each order
      • Galvanized only
      Part Number: SFA-RD-1
      • SFA..... Seismic Floor Anchors
      • RD..... Regular-Duty
      • 1..... 1 Pack
      SFA-RD-1-Seismic Floor Anchors, Regular-Duty

       Splicer Spanner

      • Splicer spanner joins two back panels in sections 78" (1981 mm) and above
      • Electrical knockouts
      Part Number: SS-(NW)
      • SS..... Splicer Spanner
      • NW..... Nominal Width 4' or 5' (1219 mm or 1524 mm)
      SS-(NW)-Splicer Spanner

       T-Leg

      • Slim design
      • Allows shelves to be mounted on outside of fitting room
      • Caster is not an option for Dressing Room
      • Load capacity of 10,000 lbs
      Part Number: TLEG-(NW)
      • TLEG..... T-Leg
      • NW..... Nominal Width 12" to 22" in 2" increments (305 mm to 559 mm in 51 mm increments)
      TLEG-(NW)-T-Leg

       Top Spanner

      • Snap-in spanner secures uprights at equal spacing, traps back panels, and trims top of section
      • Electrical and Telescoping Upright knockouts
      Part Number: STL-(NW)
      • STL..... Top Spanner
      • NW.....Nominal Width 3' or 4' (914 mm or 1219 mm)
      STL-(NW)-Top Spanner
