Madix NexGen Cooler Shelf System
  • NexGen Cooler Systems

    Increase the efficiency of your refrigerated displays with our NEXGEN racks for walk-in coolers. NEXGEN is perfect for grocery and C-store applications, designed to facilitate First In, First Out (FIFO) product rotation and easy clean up. All racks are completely freestanding, needing no anchoring to cooler walls, and no tools are required for assembly—so installation is a breeze!

    Unlike the competition’s cooler shelving, NEXGEN features ¾” or 19 mm on-center slotting (versus 1.5” or 38 mm) for optimized vertical spacing and more merchandising flexibility. The slots are also numbered to make shelf installation and adjustments—as well as planograms—fast and simple.

    Each shelf boasts double the number of prongs normally found on cooler-rack shelving (eight versus four) for added stability. The two-pronged anchor points prevent shelf tilting and collapse, which is common with single-prong designs. The front prongs are also longer than the rest to aid shelf alignment and insertion: Once the front prongs are in place, simply push the shelf forward to engage the other six prongs.

    Our NEXGEN cooler shelving options include single and double units, so the system is scalable to your specific refrigerated display needs. The single unit is also available as a mobile fixture with casters, which is ideal for holding merchandise prone to seepage (e.g. jugs of milk). Simply wheel the rack out and hose it down for a quick cleanup. The optional drip pan can also help contain any accidental leaks or spills.

    • Video

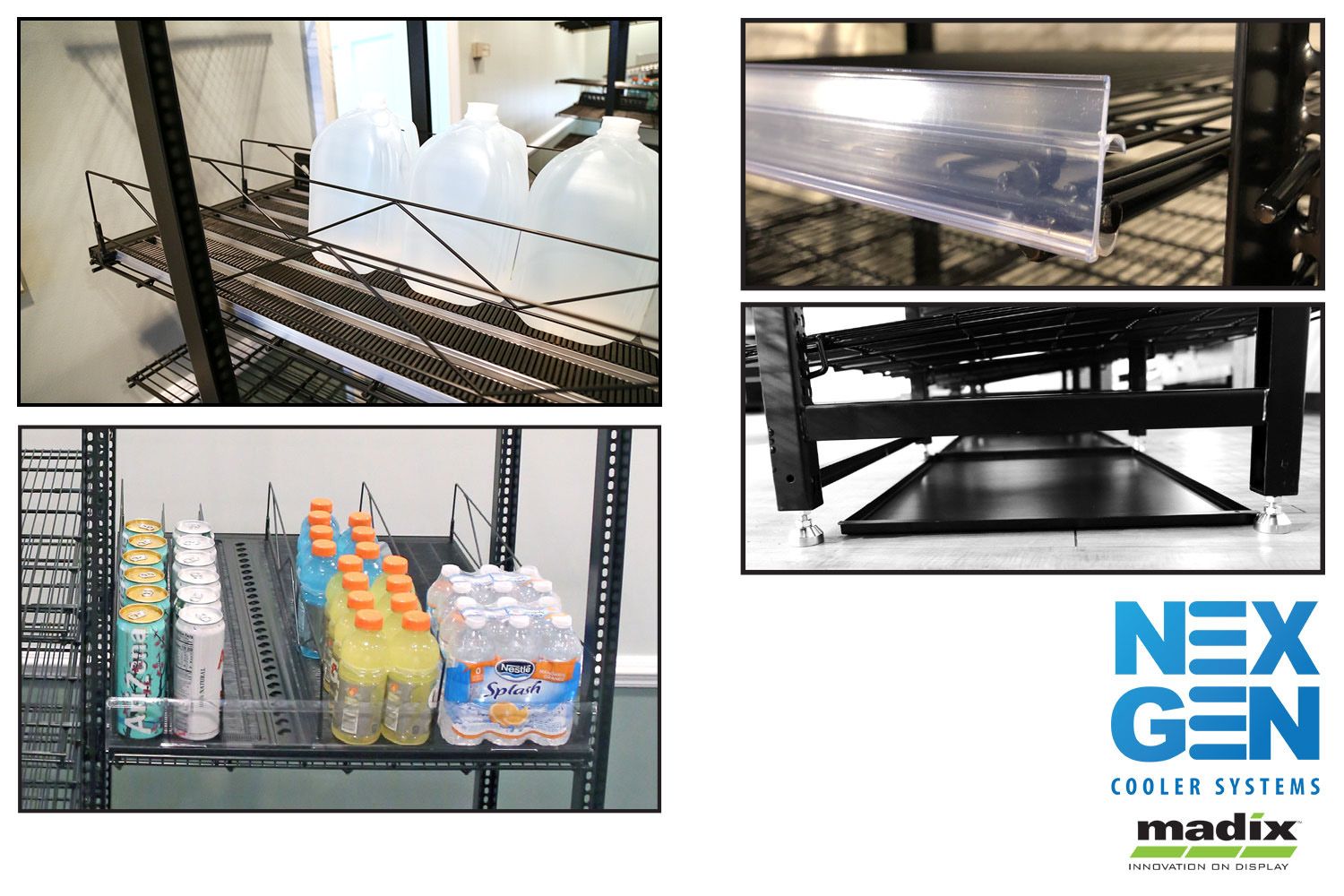

      Gallery

      • ¾" or 19 mm on-center slots for optimized use of vertical space
      • Numbered slots to simplify installation and planograms
      • Eight prongs per shelf instead of four for added stability
      • Uprights are a unitized, welded assembly for easy installation
      • Patent-pending, three-sided upright (the fourth side is left open for easy cleaning)
      • Designed to qualify for NSF certification (pending)
      • Freestanding - does not require any attachment to walls
      • Mobile and stationary units available
      • Scalable
      • Optional drip pan
      • Roller-shelf upgrade available (for auto-facing/fronting merchandise and reduced manual labor)
    • Components for NexGen Cooler Systems

      Reveal/Hide Components

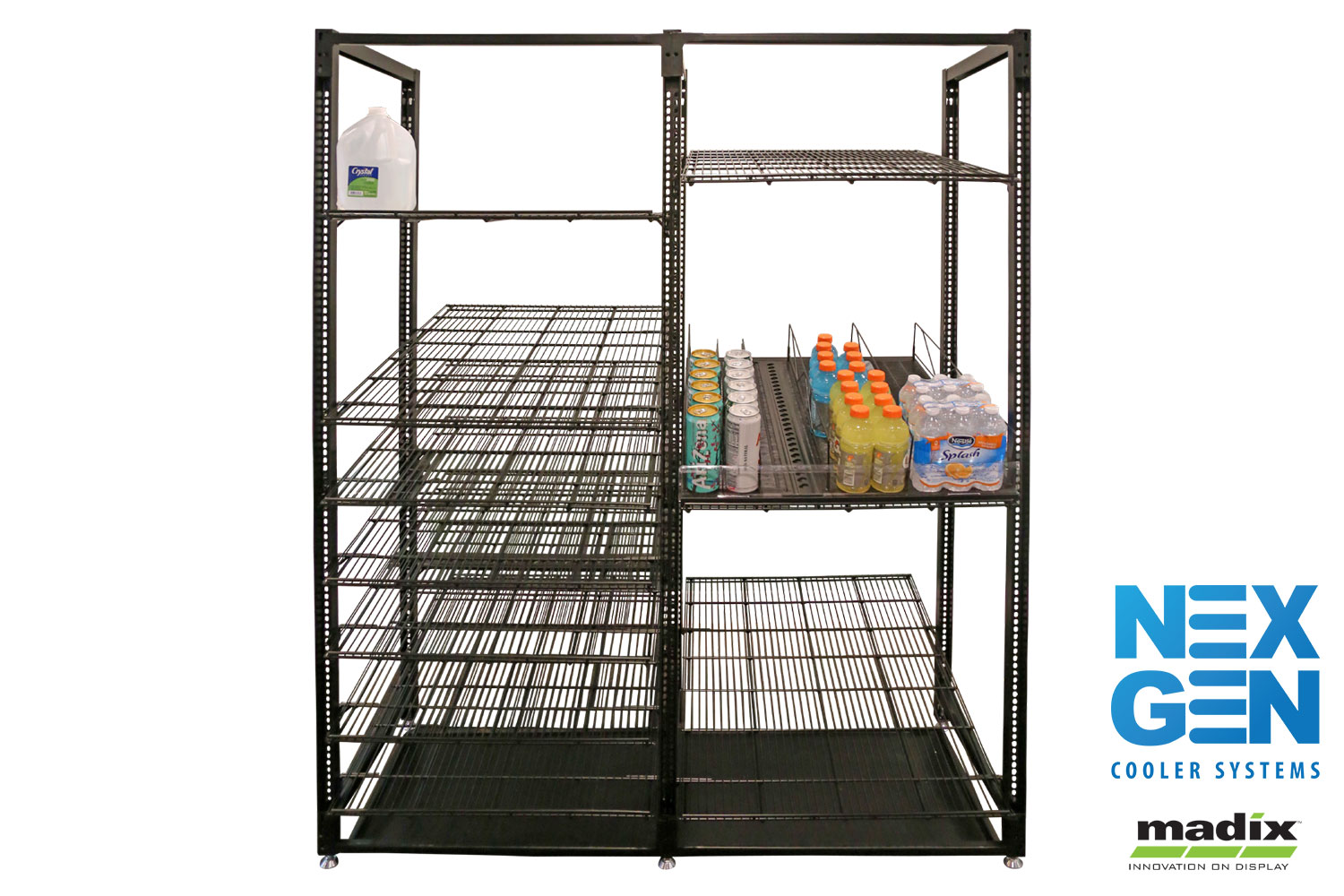

       NexGen Cooler Shelving 4 Door System

      • Includes:
        • 80" (2032 mm) uprights (5 qty)
        • 28 1/2 " x 36" (724 mm x 914 mm) wire shelves (28 qty)
        • Tie bars (8 qty)
      • 3/4" (19 mm) OC slots
      • Easy shelf alignment for faster installation
      • Unitized, welded assembly uprights
      Part Number: NGCOOL4DR-36
      • NG ....NexGen
      • COOL .... Cooler
      • 4DR .... 4 Door
      • 36 .... 36" Deep
      NGCOOL4DR-36-NexGen Cooler Shelving 4 Door System

       NexGen Cooler Shelving 5 Door System

      • Includes:
        • 80" (2032 mm) uprights (6 qty)
        • 28 1/2 " x 36" (724 mm x 914 mm) wire shelves (35 qty)
        • Tie bars (10 qty)
      • 3/4" (19 mm) OC slots
      • Easy shelf alignment for faster installation
      • Unitized, welded assembly uprights
      Part Number: NGCOOL5DR-36
      • NG ....NexGen
      • COOL .... Cooler
      • 5DR .... 5 Door
      • 36 .... 36" Deep (914 mm)
      NGCOOL5DR-36-NexGen Cooler Shelving 5 Door System

       NexGen Cooler @Front Roller Shelving 4 Door System (28 PK)

      • Includes:
        • 28 1/2 " x 36" (724 mm x 914 mm) @Front roller mat (28 qty)
        • 3" x 28 1/2 " (76 mm x 724 mm) clear plastic front fence (28 qty)
        • 2" x 36" (51 mm x 914 mm) dividers (280 qty)
      Part Number: NGCOOLROLL-36-28PK
      • NG ....NexGen
      • COOL .... Cooler
      • ROLL .... Roller Mat
      • 36 .... 36" Deep (914 mm)
      • 28 .... 28 Pack
      NGCOOLROLL-36-28PK-NexGen Cooler @Front Roller Shelving 4 Door System (28 PK)

       NexGen Cooler @Front Roller Shelving 5 Door System (35 PK)

      • Includes:
        • 28 1/2 " x 36" (724 mm x 914 mm) @Front roller mat (35 qty)
        • 3" x 28 1/2 " (76 mm x 724 mm) clear plastic front fence (35 qty)
        • 2" x 36" (51 mm x 914 mm) dividers (350 qty)
      Part Number: NGCOOLROLL-36-35PK
      • NG ....NexGen
      • COOL .... Cooler
      • ROLL .... Roller Mat
      • 36 .... 36" Deep (914 mm)
      • 35 .... 35 Pack
      NGCOOLROLL-36-35PK-NexGen Cooler @Front Roller Shelving 5 Door System (35 PK)

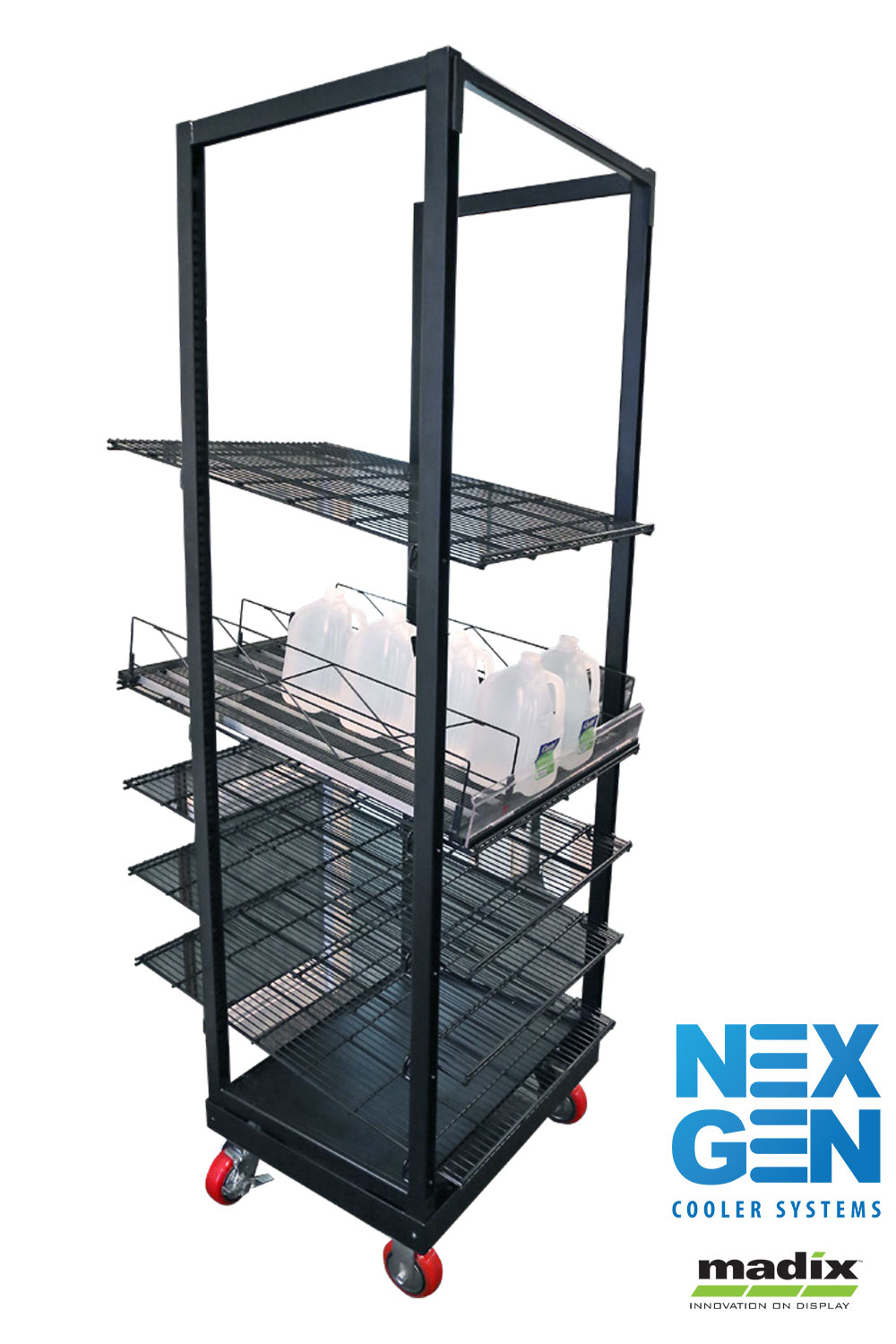

       NexGen Mobile Cooler Shelving System

      • Includes:
        • 80" (2032 mm) upright (8 qty)
        • 28 1/2 " x 36" (724 mm x 914 mm) wire shelves (20 qty)
        • Tie bars (4 qty)
        • Mobile base (4 qty)
        • NSF-listed casters, locking (8 qty)
        • NSF-listed casters, free (8 qty)
      • 3/4" (19 mm) OC slots
      • Easy shelf alignment for faster installation
      • Standard width for 30" (762 mm) C/C doors
      • Creates four freestanding, mobile units
      Part Number: NGMCOOL-36-4PK
      • NGM ....NexGen Mobile
      • COOL .... Cooler
      • 36 .... 36" Deep (914 mm)
      • 4PK .... 4 Pack
      NGMCOOL-36-4PK-NexGen Mobile Cooler Shelving System

       NexGen Cooler @Front Roller Shelving 4 Door System

      • Fullsized @Front full roller-mat system
      • Includes:
        • 28 1/2 " x 36" (724 mm x 914 mm) @ Front roller mat (20 qty)
        • 3" x 281/2 " (76 mm x 724 mm) clear plastic front fence (20 qty)
        • 2" x 36" (51 mm x 914 mm) dividers (200 qty)
      Part Number: NGCOOLROLL3620PK
      • NG ....NexGen
      • COOL .... Cooler
      • ROLL ....@Front Roller Mat
      • 36 .... 36" Deep (914 mm)
      • 20PK .... 20 Pack
      NGCOOLROLL3620PK-NexGen Cooler @Front Roller Shelving 4 Door System

       NexGen Mobile Cooler @Front Track Roller Shelving 4 Door System

      • System includes separate tracks for large size merchandise (e.g. milk and multipacks)
      • Includes:
        • Front/rear mounting tracks (40 qty)
        • 3" x 28" (76 mm x 711 mm) plastic fronts (20 qty)
        • 36"D (914 mm) roller tracks (20 qty)
        • 3"H (76 mm) dividers (100 qty)
      Part Number: NGCOOLRTRACK3620PK
      • NG ....NexGen
      • COOL .... Cooler
      • RTRACK .... Roller Track
      • 36 .... 36" Deep (914 mm)
      • 20PK .... 20 Pack
      NGCOOLRTRACK3620PK-NexGen Mobile Cooler @Front Track Roller Shelving 4 Door System

       NexGen Cooler Drip Pan

        Part Number: NGCOOLDP
        • NG.....NexGen
        • COOL..... Cooler
        • DP.....Drip Pan
        NGCOOLDP-NexGen Cooler Drip Pan

         NexGen Snap-On Tag Mold

        • Snap-on tag molding available in packs of 20, 28, and 35 each
        Part Number: NGPTMCOOL-(OPT)
        • NG.....NexGen
        • PTM..... Snap-On Tag Mold
        • COOL..... Cooler
        • OPT..... PK20=20 Pack PK28=8 Pack PK35=35 Pack
        NGPTMCOOL-(OPT)-NexGen Snap-On Tag Mold

         NexGen Wire Retainer

        • Wire retainer inserts into upright slots to provide product retention where shelf is downtilted and no @Front rollers are utilized
        Part Number: NGWR-20PK
        • NG.....NexGen
        • WR.....Wire Retainer
        • 20PK..... 20=20 Pack
