Luxe Queuing Solutions
  • Luxe Queuing Solutions

    Put method back into the madness of checkout lines! Madix’s Luxe Queuing Solution helps retailers boost sales by reducing wait time in the checkout area, improving customer satisfaction and strengthening brand loyalty. Our Luxe Queuing Solution feeds one line of customers to multiple registers in an orderly and efficient manner, minimizing customer frustration. And with the variety of configurations available, retailers have the flexibility to promote more impulse merchandise and services at a consistent exposure level. Our Luxe Queuing Solution offers almost all standard Madix shelves and accessories.

      View Complete Specialty Catalog »

      Downloads

    • With Luxe Queuing, you can achieve the following:
      Optimize merchandise visibility
      Increase impulse-item sales
      Regulate traffic flow
      Reduce wait times
      Improve customer satisfaction
      The optional Retractable Retainer allows retail associates to open and close off queuing lines by pulling and locking a strap to the upright.
    •      Optimize merchandise visibility
     Increase impulse-item sales
     Regulate traffic flow
     Reduce wait times
     Improve customer satisfaction

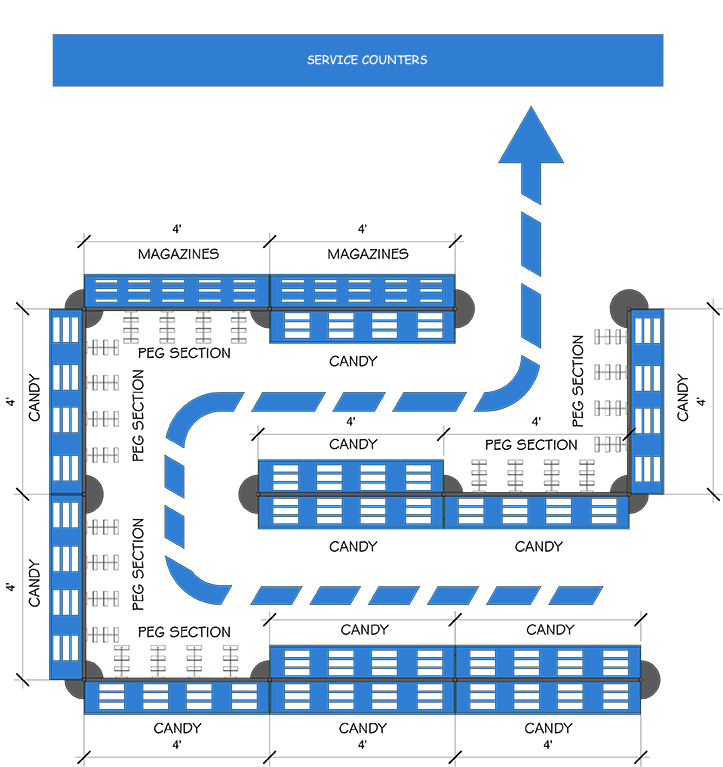

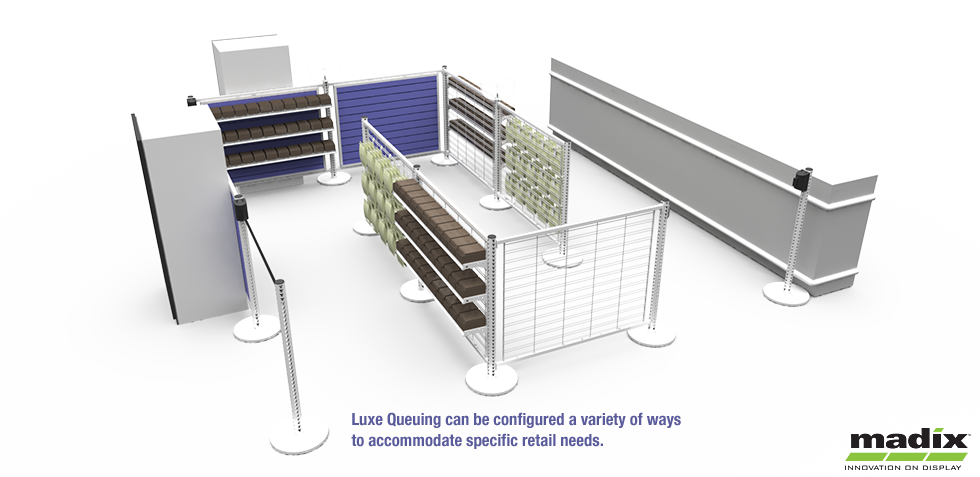

      Endless layout possibilities

    • Luxe Queuing can be configured a variety of ways to accommodate specific retail needs.

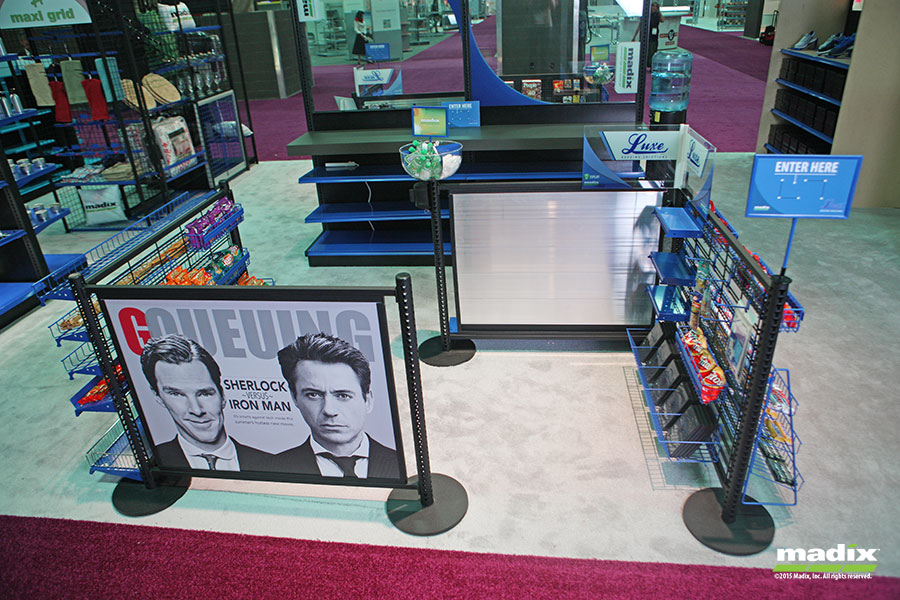

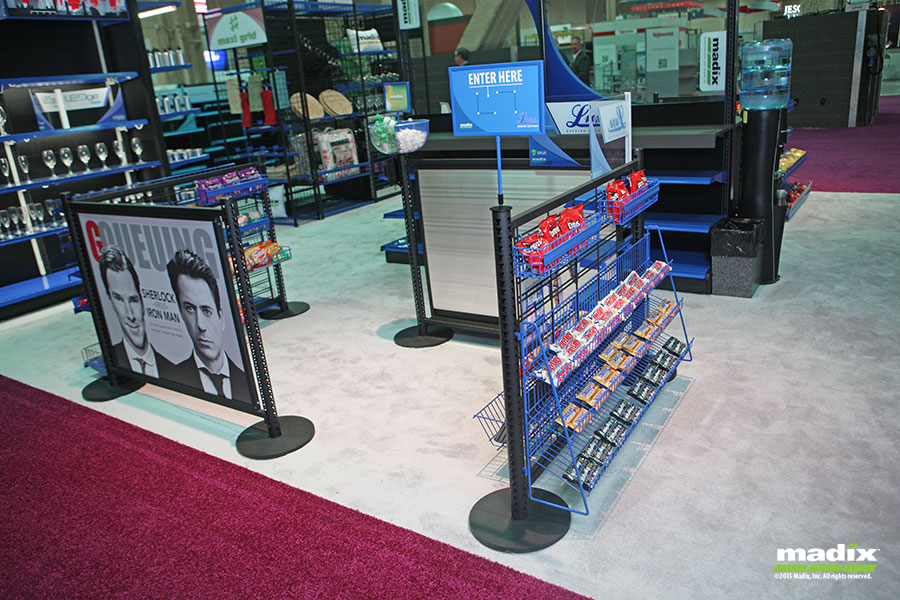

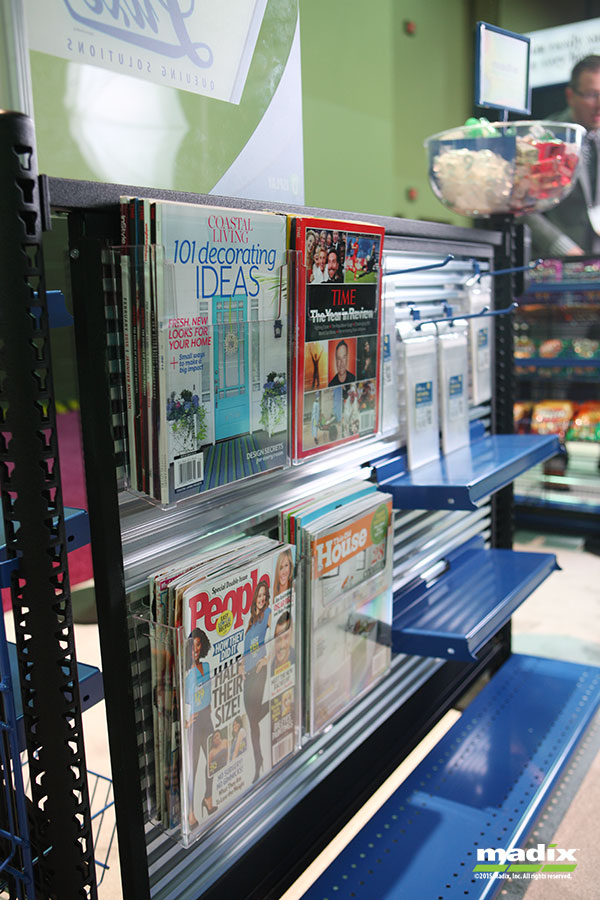

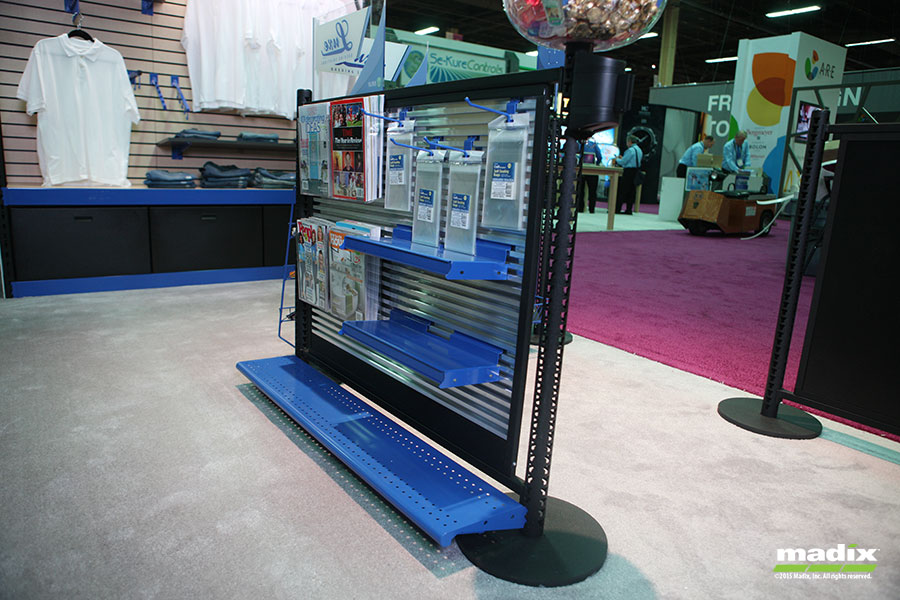

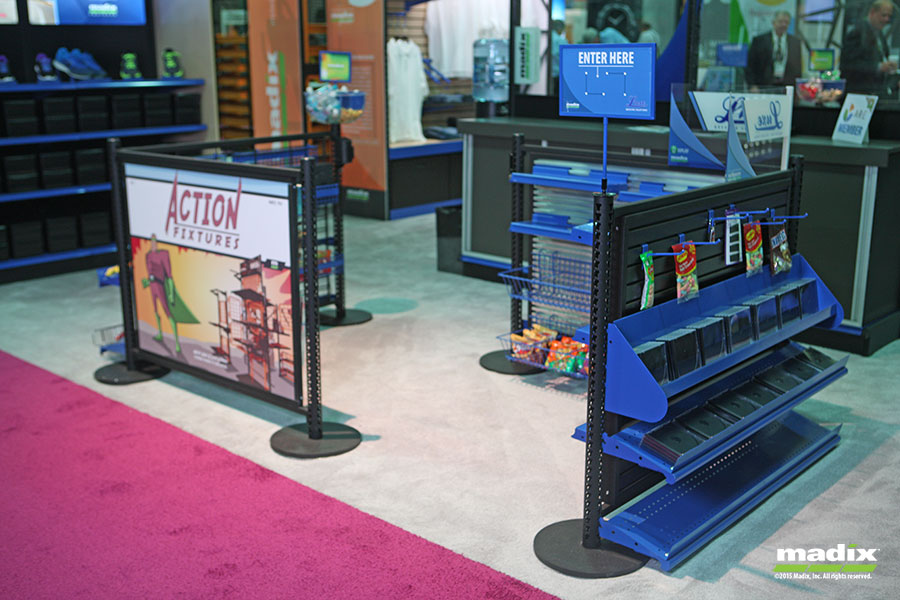

    • Gallery

    Revit/CAD Models

    Revit Model Guide »

    • Components for Luxe Queuing Solutions

      Reveal/Hide Components

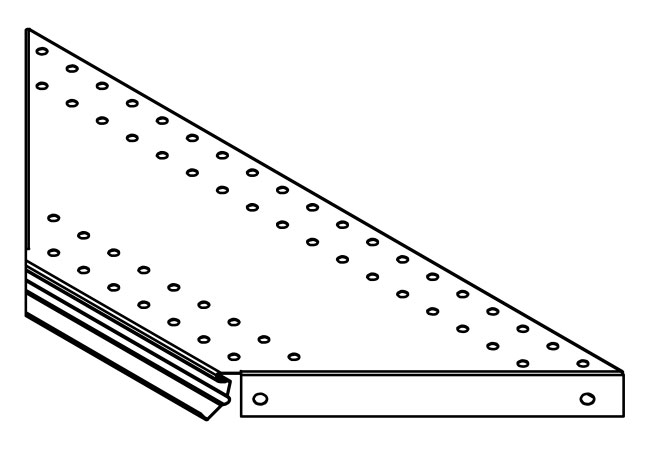

       Luxe 45° Corner Shelf

      • Maximum shelf depth is 10" (254 mm) only
      • Corner shelf bolts into adjacent shelves at the same level
      • Shelf does not come with brackets
      • Use with 10" (254 mm) Standard Upright Shelves [SUS-(NW)10] only
      Part Number: LUQSUS45-10
      • LUQ..... Luxe Queuing
      • SUS..... Standard Upper Shelf
      • 45..... 45°
      • 10.....Nominal Depth 10" (254 mm)
      LUQSUS45-10-Luxe 45° Corner Shelf

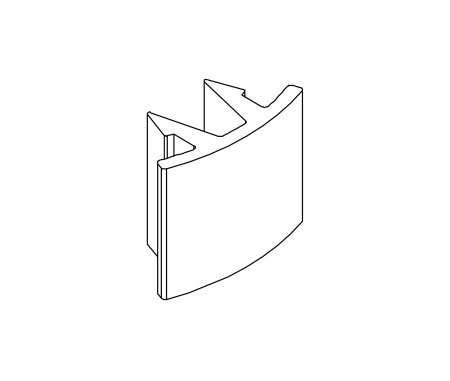

       Luxe Backing Locking Insert

      • All backs except LUQFPC(NW) include four (4) locking inserts
      • Pack of 8 inserts
      Part Number: LUXBLI-BLK
      • LUXBLI......Luxe Back Locking Insert
      • BLK......Black
      LUXBLI-BLK-Luxe Backing Locking Insert

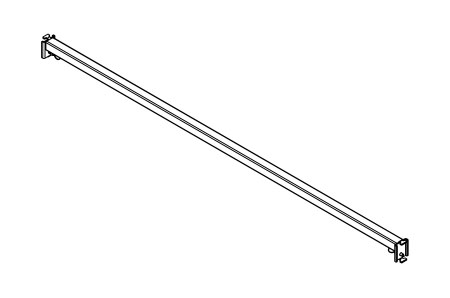

       Luxe Queuing Fixture Post Connector Rail

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Rails are installed across post where shelving and accessories are not needed
      • Produces an open look with greater merchandise visibility in the queuing area
      • Minimum of two (2) required per section (more can be added if required)
      Part Number: LUQFPCR(NW)(OPT)
      • LUQF......Luxe Queuing Fixture
      • PCR......Post Connector Rail
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • OPT......Blank=Locking NL=Non-Locking
      LUQFPCR(NW)(OPT)-Luxe Queuing Fixture Post Connector Rail
      Includes a locking plunger bolt on both ends of the Connector Rail if locking option selected.

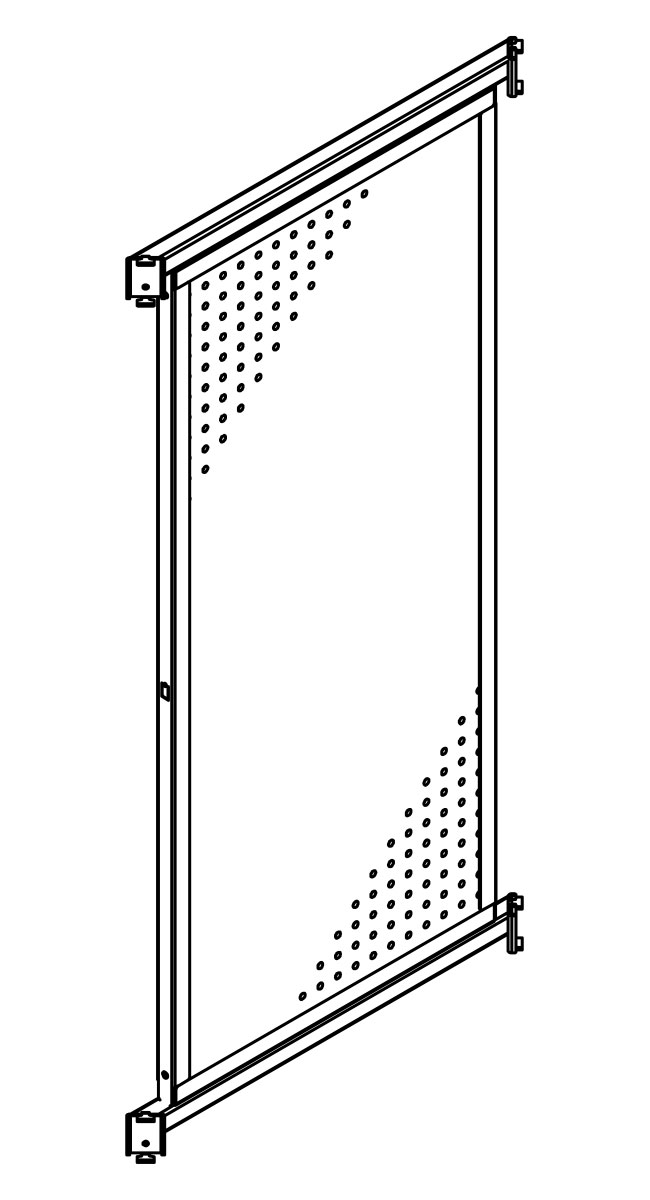

       Luxe Queuing Hardboard Back 45°

      • Nominal width is 24" (610 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Part Number: LUQB45(BACK1)(BACK2)DP(NW)(NH)
      • LUQB..... Luxe Queuing System Back
      • 45..... 45°
      • BACK1..... Interior Back H=Hardboard HL=Hardboard Laminated P=Pegboard PL=Pegboard Laminated
      • BACK2..... Exterior Back H=Hardboard HL=Hardboard Laminated P=Pegboard PL=Pegboard Laminated
      • DP.....Double Panel
      • NW.....Nominal Width 24" (640 mm)
      • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Finish
      • FIN1.....Metal FIN2..... Interior Back FIN3..... Exterior Back
      LUQB45(BACK1)(BACK2)DP(NW)(NH)-Luxe Queuing Hardboard Back 45°
      Nominal width of 18" (457 mm) available, largest depth of adjacent shelves is 8" (203 mm). No Luxe 45° Corner Shelf (LUQSUS45-10) available for 18" (457 mm) corner.

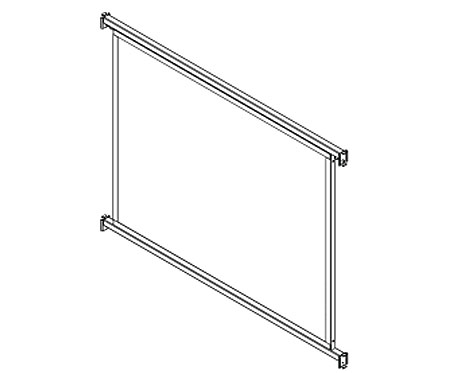

       Luxe Queuing Hardboard Backs on Two (2) Sides

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm or 1219 mm)
      • Available with hardboard backs on both sides, back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      • Also available with pegboard on one side and hardboard on the other
      Part Number: LUQB(OPT)DP(NW)(NH)
      • LUQB......Luxe Queuing System Back
      • OPT......HH=Hardboard Two Sides HP=Hardboard Back & Pegboard
      • DP......Double Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Options
      • OPT......HH=Hardboard Two Sides HP=Hardboard Back & Pegboard
      Finish
      • FIN1......Metal FIN2......Back One FIN3......Back Two
      LUQB(OPT)DP(NW)(NH)-Luxe Queuing Hardboard Backs on Two (2) Sides

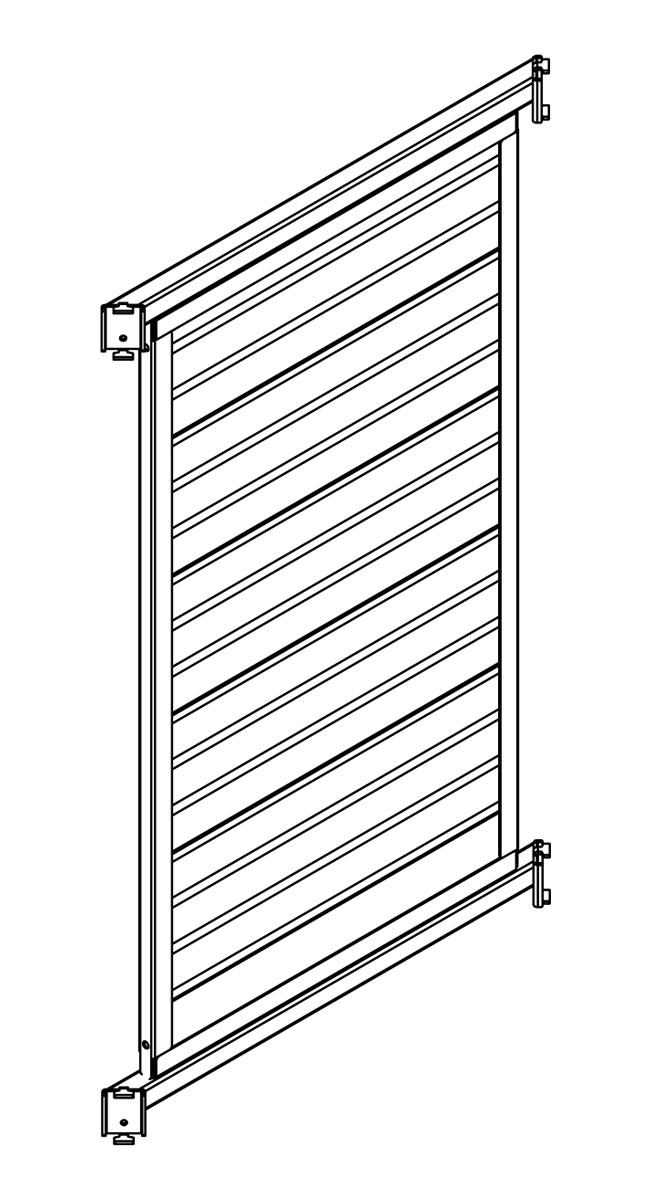

       Luxe Queuing MegaWall™ Back 45°

      • Nominal width is 24" (610 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Single-sided MegaWall™ back that is 2" OC and slotted on two sides
      Part Number: LUQB45MW(NW)(NH)
      • LUQB..... Luxe Queuing System Back
      • 45..... 45°
      • MW.....MegaWall™
      • NW.....Nominal Width 24" (640 mm)
      • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1219 mm, or 1524 mm)
      Finish
      • FIN1..... Frame FIN2.....MegaWall™
      LUQB45MW(NW)(NH)-Luxe Queuing MegaWall™ Back 45°
      Nominal width of 18" (457 mm) available, largest depth of adjacent shelves is 8" (203 mm). No Luxe 45° Corner Shelf (LUQSUS45-10) available for 18" (457 mm) corner.

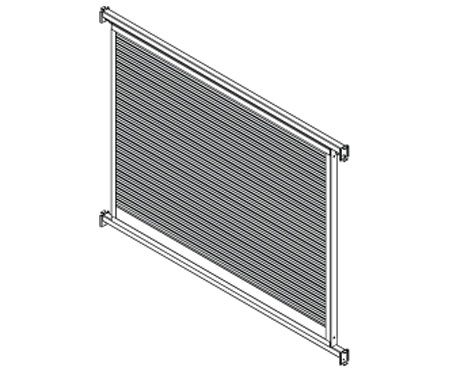

       Luxe Queuing MegaWall™ Backs on One (1) Side

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • MegaWall™ back on one side
      • Flat, no MegaWall™ on the other side
      • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      Part Number: LUQBMWSP(NW)(NH)
      • LUQB......Luxe Queuing System Back
      • MW......MegaWall™
      • SP......Single Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Finish
      • FIN1......Frame FIN2......MegaWall™ One (same color as side two) FIN3......MegaWall™ Two (same color as side one)
      LUQBMWSP(NW)(NH)-Luxe Queuing MegaWall™ Backs on One (1) Side

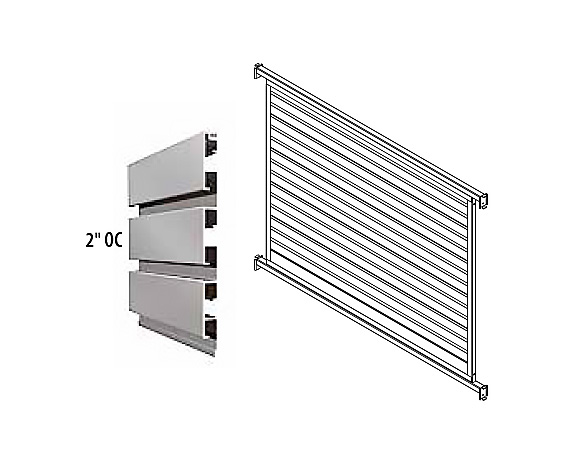

       Luxe Queuing MegaWall™ Backs on Two (2) Sides

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • MegaWall™ Back Panel Insert is slotted on two sides ONLY
      • MegaWall™ Backs are 2" OC slotting
      • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      Part Number: LUQBMW(NW)(NH)(OPT1)
      • LUQB......Luxe Queuing System Back
      • MW......MegaWall™
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Options
      • OPT1.....U=Unpainted (raw aluminium)
      Finish
      • FIN1......Frame FIN2......MegaWall™
      LUQBMW(NW)(NH)(OPT1)-Luxe Queuing MegaWall™ Backs on Two (2) Sides

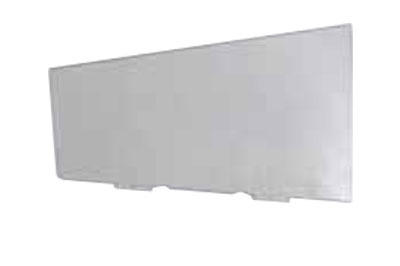

       Luxe Queuing Multi-Purpose Adjustable Bin Divider

      • Clear plastic dividers
      • Use for small and medium Multi-Purpose Adjustable Bins [LUQMPABIN-(OPT)]
      • Can accommodate up to three dividers
      • Order separately from bins
      Part Number: LUQMPBINDIV-(OPT)
      • LUQ......Luxe Queuing
      • PBINDIV......Multi-Purpose Adjustable Bin Divider
      • OPT......SM=Small MD=Medium
      LUQMPBINDIV-(OPT)-Luxe Queuing Multi-Purpose Adjustable Bin Divider

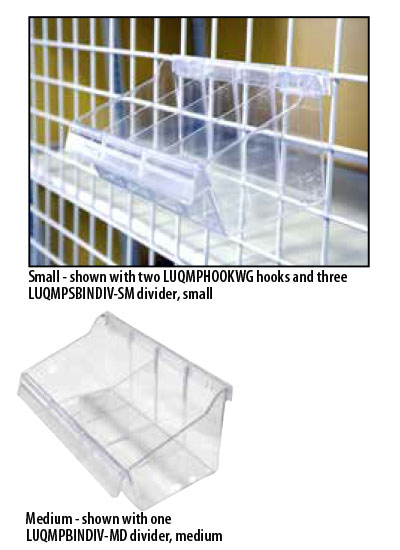

       Luxe Queuing Multi-Purpose Adjustable Bins

      • Clear plastic bins to merchandise small impulse items
      • Use two Luxe Queuing Multi-Purpose Hooks for Pegboard or Slatwall (LUQMPHOOKPSW) to attach to pegboard, MegaWall™, mini grid, slatgrid, or slatwall
      • Use two Luxe Queuing Multi-Purpose Hooks for Wire Grid (LUQMPHOOKWG) to attach bins to square wire grid patterns
      • Place up to three dividers to maximize your sales and profitability
      • Sizes available: ° Small Bin (7 1/2"L x 11 7/8"W x 5 7/8"H) ° Medium Bin (10 1/4"L x 11 7/8"W x 5 7/8"H)
      • 1 1/4" (32 mm) tag mold on front for pricing
      • Can accommodate up to three dividers
      • Order separately from dividers
      Part Number: LUQMPABIN-(OPT)
      • LUQ......Luxe Queuing
      • MPABIN......Multi-Purpose Adjustable Bins
      • OPT......SM=Small MD=Medium
      LUQMPABIN-(OPT)-Luxe Queuing Multi-Purpose Adjustable Bins

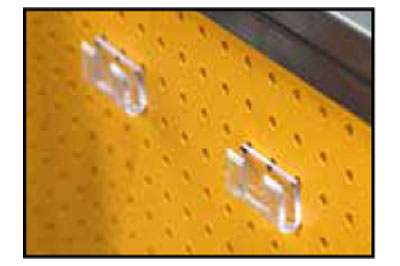

       Luxe Queuing Multi-Purpose Hook for Pegboard or Slatwall

      • Clear plastic hooks
      • Used to hang Luxe Queuing Multi-Purpose Adjustable Bins [LUQMPABIN-(OPT)] or Luxe Queuing Multi-Purpose Tray (LUQMPTRAY) on pegboard, MegaWall™, slatgrid, mini grid, or slatwall
      • Two required per bin
      • Order separately from bins or trays
      Part Number: LUQMPHOOKPSW
      • LUQ......Luxe Queuing
      • MP......Multi-Purpose
      • HOOK......Hook
      • PSW......for Pegboard or Slatwall
      LUQMPHOOKPSW-Luxe Queuing Multi-Purpose Hook for Pegboard or Slatwall

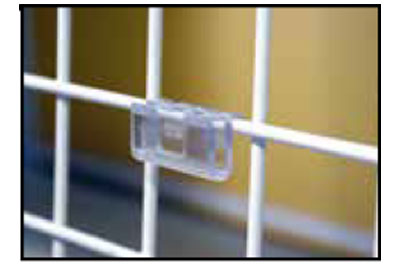

       Luxe Queuing Multi-Purpose Hook for Wire Grid

      • Clear plastic hooks
      • Used to hang Luxe Queuing Multi-Purpose Adjustable Bins [LUQMPABIN-(OPT)] or Luxe Queuing Multi-Purpose Tray (LUQMPTRAY) on wire grid
      • Two required per bin
      • Order separately from bins or trays
      Part Number: LUQMPHOOKWG
      • LUQ......Luxe Queuing
      • MP......Multi-Purpose
      • HOOK......Hook
      • WG......for Wire Grid
      LUQMPHOOKWG-Luxe Queuing Multi-Purpose Hook for Wire Grid

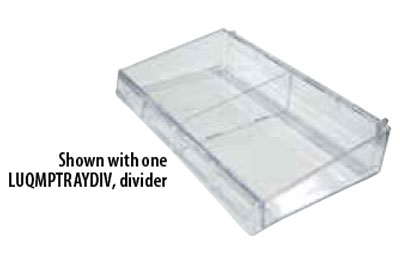

       Luxe Queuing Multi-Purpose Tray

      • Clear plastic trays to merchandise small impulse items
      • 9"D x 16"W x 3"H
      • 1 1/4" (32 mm) tag mold on front for pricing
      • Dividers ordered separately from trays
      Part Number: LUQMPTRAY
      • LUQ......Luxe Queuing
      • MP......Multi-Purpose
      • TRAY......Tray
      LUQMPTRAY-Luxe Queuing Multi-Purpose Tray

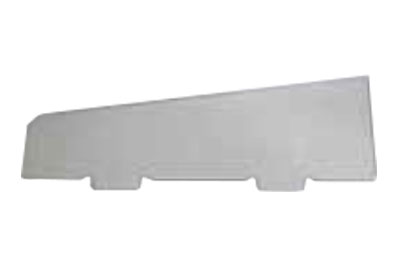

       Luxe Queuing Multi-Purpose Tray Divider

      • Clear plastic divider
      • Use with Luxe Queuing Multi-Purpose Tray (LUQMPTRAY)
      • One divider per bin
      • Dividers ordered separately from trays
      Part Number: LUQMPTRAYDIV
      • LUQ......Luxe Queuing
      • MP......Multi-Purpose
      • TRAY......Tray
      • DIV......Divider
      LUQMPTRAYDIV-Luxe Queuing Multi-Purpose Tray Divider

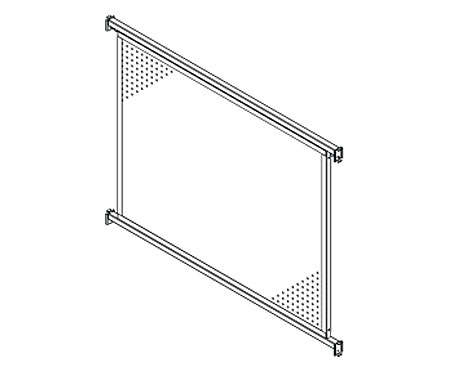

       Luxe Queuing Pegboard Backs on Two (2) Sides

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Pegboard backs on both sides, back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      • Also available with pegboard on one side and hardboard on the other
      Part Number: LUQB(OPT)DP(NW)(NH)
      • LUQB......Luxe Queuing System Back
      • OPT......PP=Pegboard Two Sides HP=Hardboard Back & Pegboard
      • DP......Double Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Options
      • OPT......PP=Pegboard Two Sides HP=Hardboard Back & Pegboard
      Finish
      • FIN1......Metal FIN2......Back One FIN3......Back Two
      LUQB(OPT)DP(NW)(NH)-Luxe Queuing Pegboard Backs on Two (2) Sides

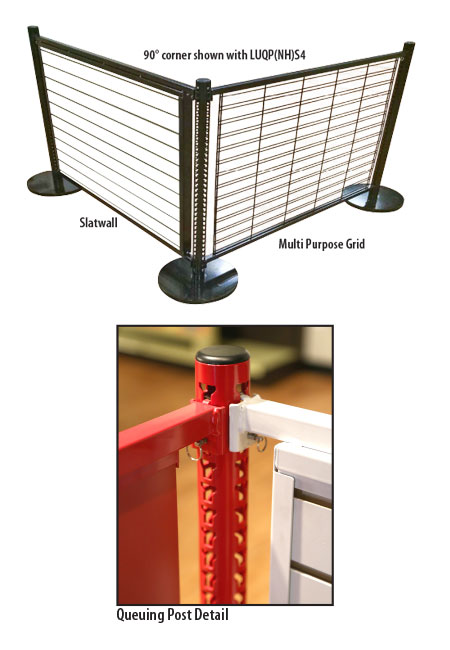

       Luxe Queuing Post Slotted on Four Sides

      • Especially designed for Maxi Shelves and Accessories (with brackets)
      • Provides the most flexibility for configurations—four slots allow for 90° turns in four different directions
      • Creates sharp, neat corners without need for filler panels
      • Base diameter of 13" (330 mm)
      • Maximum post height is 60". If you require taller posts, please contact your Madix sales representative.
      Part Number: LUQP(NH)S4
      • LUQP......Luxe Queuing System Post
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • S4......S4=Slotted 4-Sided
      LUQP(NH)S4-Luxe Queuing Post Slotted on Four Sides
      Luxe Queuing 13" Round Capacity

      Accessories must not exceed 6" (152 mm) deep.

      Do not exceed 142 lbs per section per side when using 6" accessories.

      If a higher weight capacity more than 142 lbs per section and deeper than 6" accessories are required please contact your Madix Sales Representative.

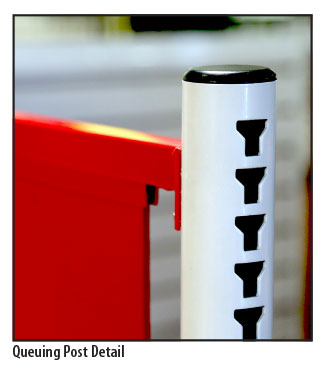

       Luxe Queuing Post Slotted on Two Sides

      • The section's back material (Pegboard, Grid, Slatwall, or Megawall) is used to support the shelves and accessories, not the posts' slots
      • Creates a clean look (no front-facing visible slots)
      • Base diameter of 13" (330 mm)
      • Maximum post height of 60" (1524 mm). If taller posts are required please call your Madix Sales Representative.
      Part Number: LUQP(NH)S2
      • LUQP......Luxe Queuing System Post
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • S2......Slotted 2-Sided
      LUQP(NH)S2-Luxe Queuing Post Slotted on Two Sides
      Luxe Queuing 13" Round Capacity

      Accessories must not exceed 6" (152 mm) deep.

      Do not exceed 142 lbs per section per side when using 6" accessories.

      If a higher weight capacity more than 142 lbs per section and deeper than 6" accessories are required please contact your Madix Sales Representative.

       Luxe Queuing Retractable Retainer

      • Retractable belt fits into the face of the post/stanchion
      • Housing and receiving clip easily hangs and is secured to the slots in the Luxe Post
      • Can be moved where needed
      • 5 1/2"H x 3"W x 3" D, retainer extends 7 1/2"
      Part Number: LUQRR
      • LUQRR......Luxe Queuing Retractable Retainer
      LUQRR-Luxe Queuing Retractable Retainer

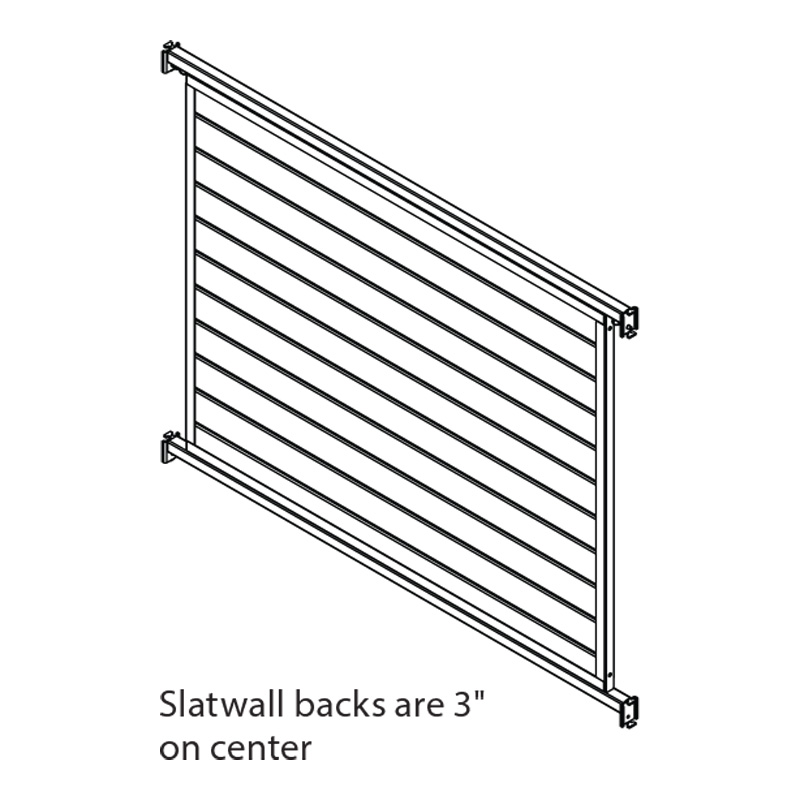

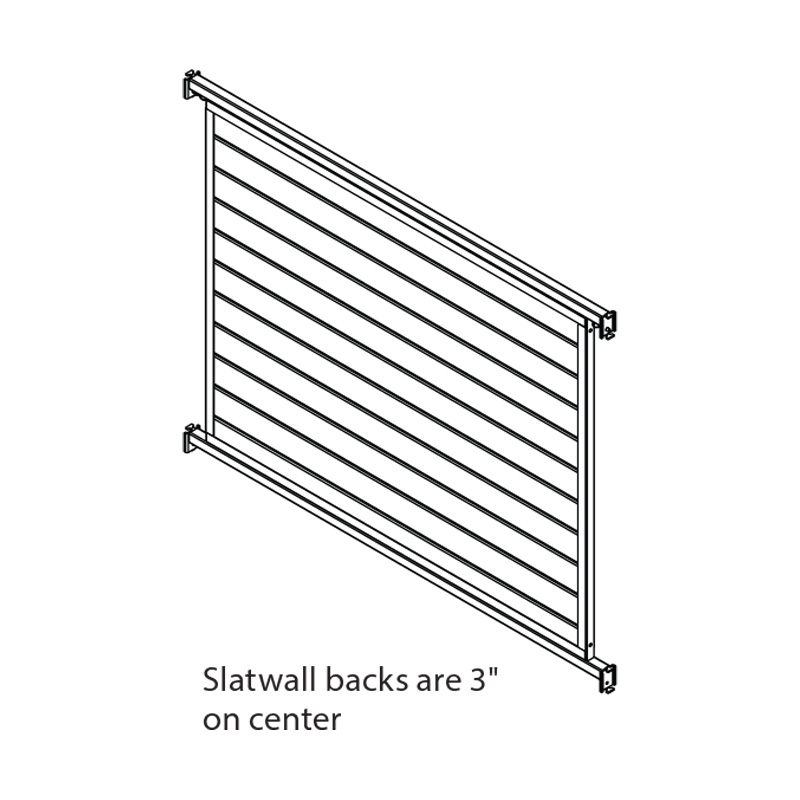

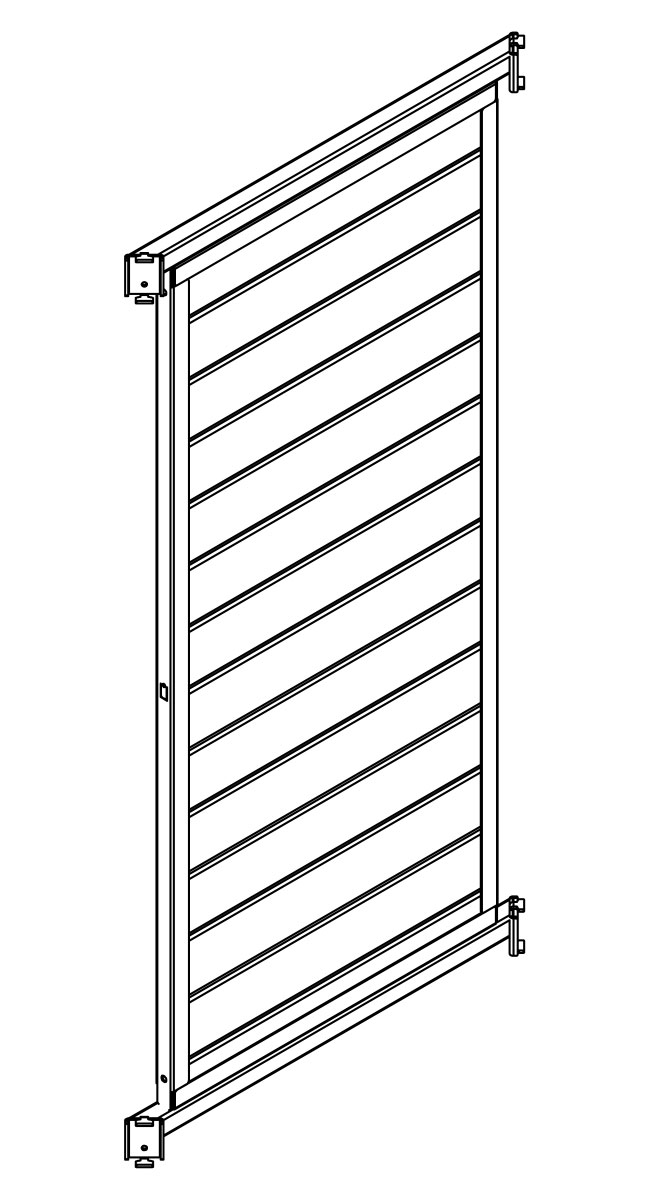

       Luxe Queuing Slatwall Back 45°

      • Nominal width is 24" (610 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Part Number: LUQB45(BACK1)(BACK2)(OPT)(NW)(NH)
      • LUQB..... Luxe Queuing System Back
      • 45..... 45°
      • BACK1..... Interior Back SWL=Slatwall Laminated SWP=Slatwall Painted SWM=Slatwall Melamine
      • BACK2..... Exterior Back SWL=Slatwall Laminated SWP=Slatwall Painted SWM=Slatwall Melamine Blank=Single-Sided
      • NW.....Nominal Width 24" (640 mm)
      • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Options
      • OPT..... SP=Single Panel DP=Double Panel
      LUQB45(BACK1)(BACK2)(OPT)(NW)(NH)-Luxe Queuing Slatwall Back 45°

       Luxe Queuing Slatwall Backs on One (1) Side

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Slatwall back on one side, flat on rear
      • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      • If the slatwall back is painted, the slatwall front and flat interior will be painted the same color
      • The flat interior side can be laminated, if the slatwall side (back one) is painted or laminated
      Part Number: LUQB(B1)SP(NW)(NH)
      • LUQB......Luxe Queuing System Back
      • B1......Back Option SWL=Slatwall Laminated SWP=Slatwall Painted
      • SP......Single Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Finish
      • FIN1......Metal FIN2......Back One (front & back same color only) FIN3......Inserts One FIN4......Interior Back (laminate option only)
      LUQB(B1)SP(NW)(NH)-Luxe Queuing Slatwall Backs on One (1) Side

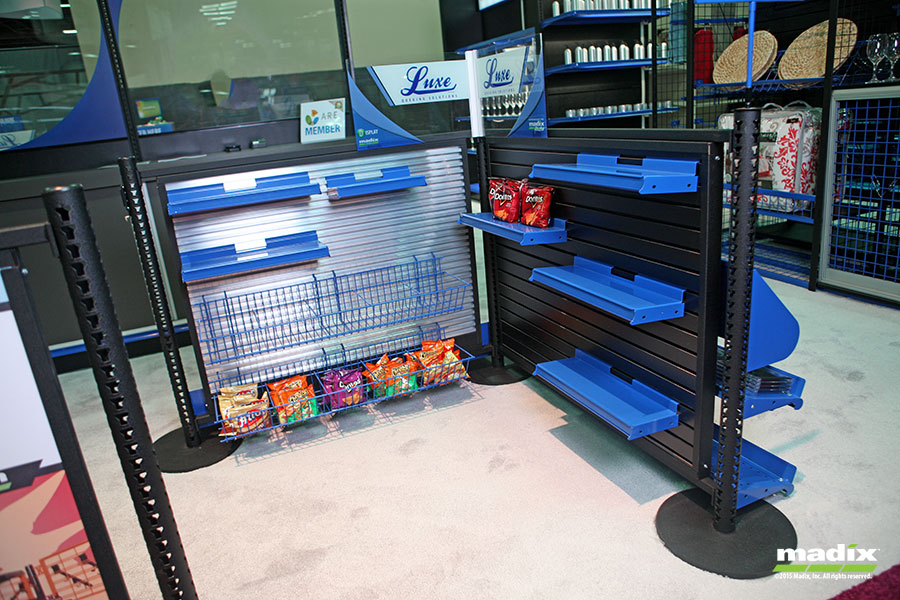

       Luxe Queuing Slatwall Backs on Two (2) Sides

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Slatwall backs on two sides
      • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      Part Number: LUQB(B1)(B2)DP(NW)(NH)
      • LUQB......Luxe Queuing System Back
      • B1......Back Option One SWL=Slatwall Laminated SWP=Slatwall Painted
      • B2......Back Option Two SWL=Slatwall Laminated SWP=Slatwall Painted
      • DP......Double Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      Finish
      • FIN1......Metal FIN2......Back One FIN3......Inserts One FIN4......Back Two FIN5......Inserts Two
      LUQB(B1)(B2)DP(NW)(NH)-Luxe Queuing Slatwall Backs on Two (2) Sides

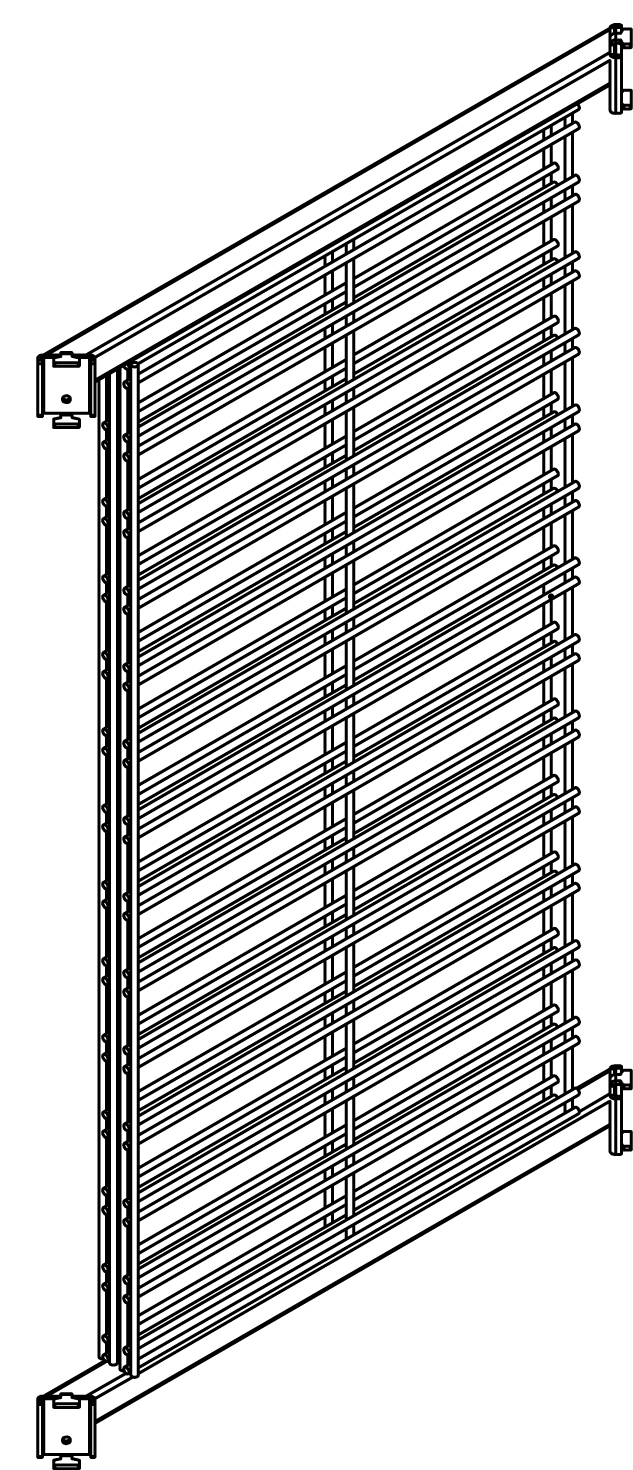

       Luxe Queuing Wire Grid Back 45°

      • Nominal width is 24" (610 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Double-sided back will have the same wire grid
      Part Number: LUQB45(TYPE)(OPT)(NW)(NH)
      • LUQB..... Luxe Queuing System Back
      • 45..... 45°
      • TYPE.....Wire Grid Type SG=Slat Grid MG=Mini Grid MPG=Multi Purpose Grid 2X2=2" x 2" Grid 3X3=3" x 3" Grid MSG=Modified Slat Grid MHG=Modified Harmonic Grid
      • NW.....Nominal Width 24" (640 mm)
      • NH.....Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1219 mm, or 1524 mm)
      Options
      • OPT..... SP=Single Sided DP=Double Sided
      LUQB45(TYPE)(OPT)(NW)(NH)-Luxe Queuing Wire Grid Back 45°

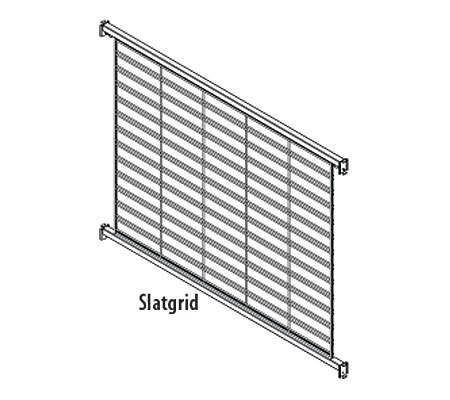

       Luxe Queuing Wire Grid Backs with One (1) Panel Per Section

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Wire Grid back is center mounted in each section
      • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      Part Number: LUQB(TYPE)SP(NW)(NH)
      • LUQB......Luxe Queuing System Wire Back
      • TYPE......Grid Type SG=Slatgrid MG=Mini Grid MPG=Multi-Purpose Grid 2X2=2x2 Grid 3X3= 3x3 Grid MSG=Modified Slatgrid MHG=Modified Harmonic Grid
      • SP......Single Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      LUQB(TYPE)SP(NW)(NH)-Luxe Queuing Wire Grid Backs with One (1) Panel Per Section

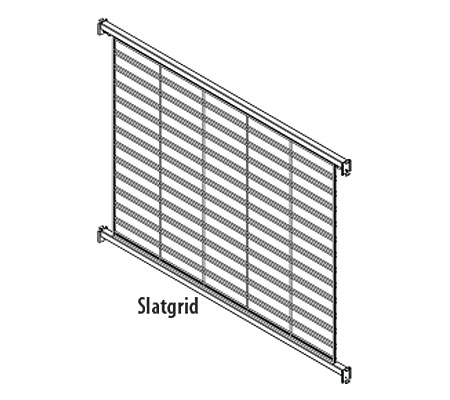

       Luxe Queuing Wire Grid Backs with Two (2) Panels Per Section

      • Nominal widths are 24", 36", and 48" (610 mm, 914 mm, and 1219 mm)
      • Nominal heights are 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      • Two Wire Grid backs are mounted in each section, allowing independent merchandising
      • Back is a one-piece unit and easily installs into side slots of the Luxe Queuing Post
      Part Number: LUQB(TYPE)DP(NW)(NH)
      • LUQB......Luxe Queuing System Wire Back
      • TYPE......Grid Type SG=Slatgrid MG=Mini Grid MPG=Multi-Purpose Grid 2X2=2x2 Grid 3X3= 3x3 Grid MSG=Modified Slatgrid MHG=Modified Harmonic Grid
      • DP......Double Panel
      • NW......Nominal Width 24", 36", or 48" (640 mm, 914 mm, or 1219 mm)
      • NH......Nominal Height 40", 48", 54", or 60" (1016 mm, 1219 mm, 1372 mm, or 1524 mm)
      LUQB(TYPE)DP(NW)(NH)-Luxe Queuing Wire Grid Backs with Two (2) Panels Per Section

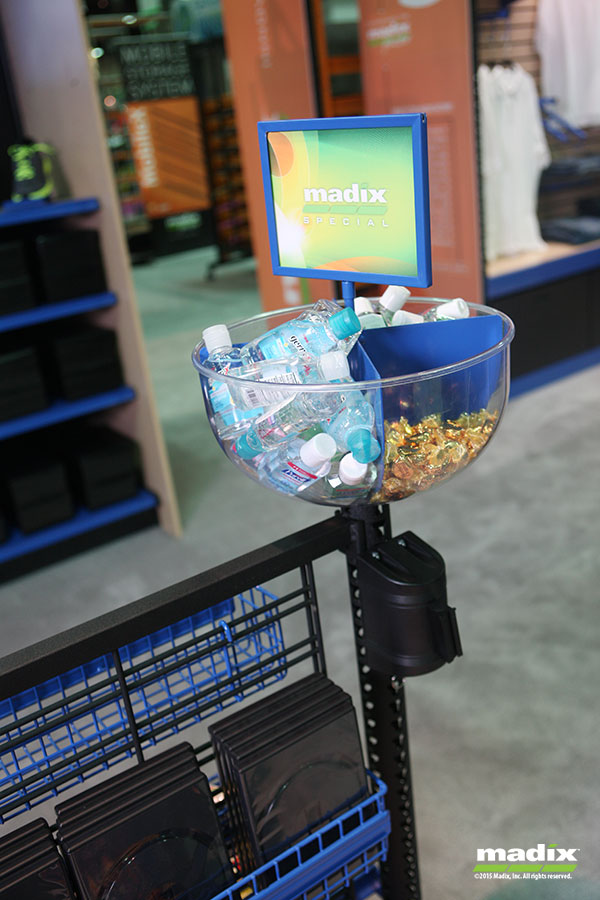

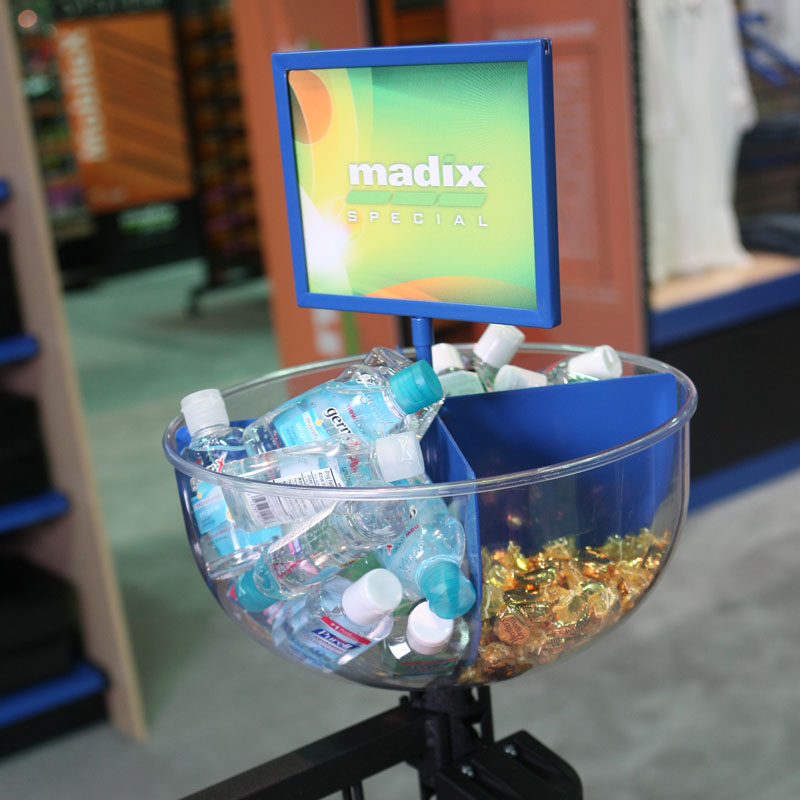

      A Queuing System Bowl

      • 12 1/4" diameter x 6" high (311 mm x 152 mm)
      Part Number: QSBOWL
      • QS....... Queuing System Bowl
      • BOWL.......Bowl
      QSBOWL-Queuing System Bowl

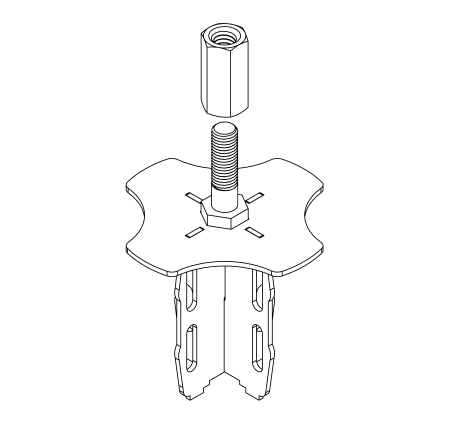

      B Luxe Upright Queuing System Post Accessory Mount

      • Required to be ordered when using Queuing System Bowl, Luxe Upright Queuing System, and Queuing Systems Sign Holder and Stem Post Accessory Mount
      Part Number: LUQPAM
      • LUQPAM....Luxe Upright Queuing System Post Accessory Mount
      LUQPAM-Luxe Upright Queuing System Post Accessory Mount

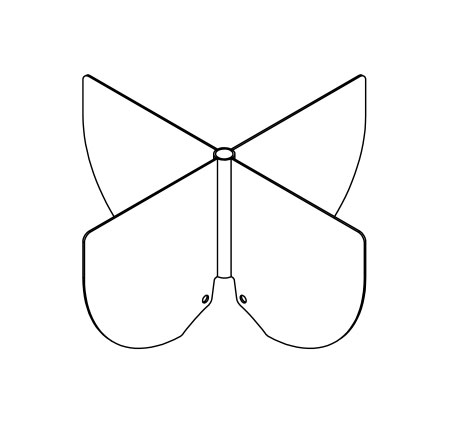

      C Tube Line T-Rack Queuing Acrylic Bowl, 4-Way Divider

      • Queuing Systems Sign Holder and Stem [QSSH(SIZE)] required to be ordered when using this divider
      Part Number: TLTRQAB4WD
      • TLTRQ......Tube Line T-Rack Queuing
      • AB4WD......Acrylic Bowl 4-Way Divider
      TLTRQAB4WD-Tube Line T-Rack Queuing Acrylic Bowl, 4-Way Divider

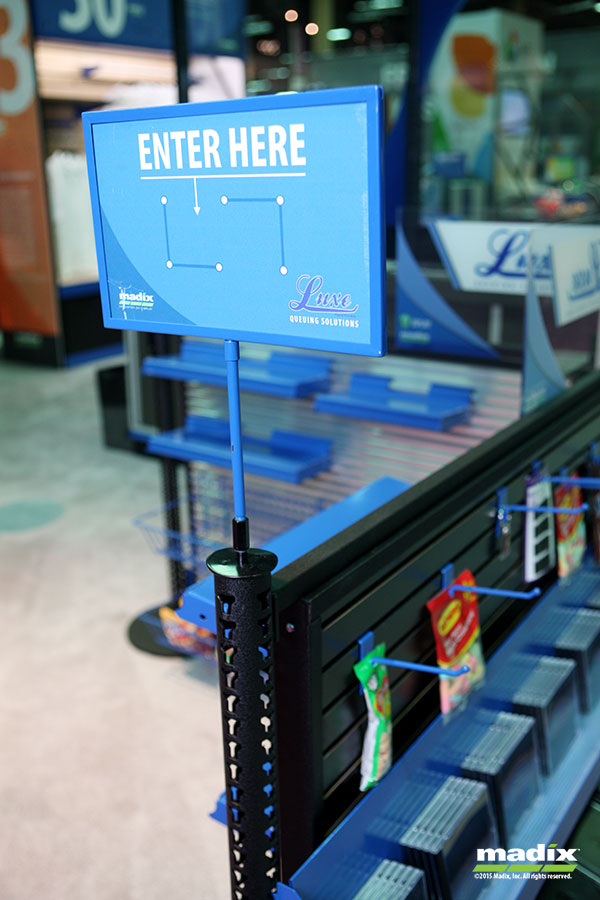

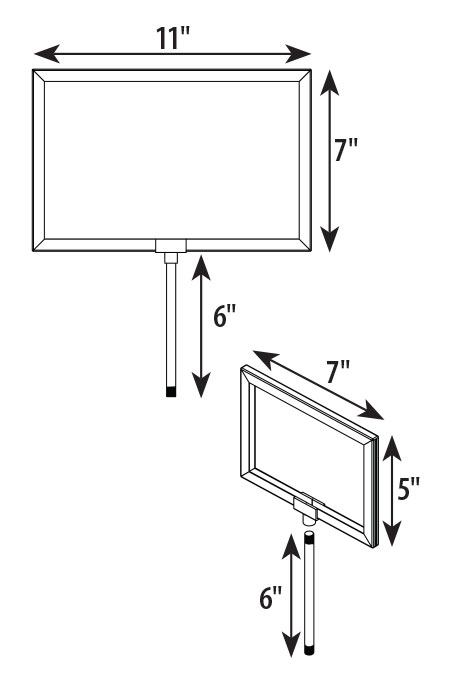

      D Queuing Systems Sign Holder and Stem

      • 5"H x 7"W (127 mm x 178 mm)
      • 7"H x 11"W (178 mm x 279 mm)
      • Required when ordering the Queuing System Bowl (QSBOWL)
      Part Number: QSSH(SIZE)
      • QSSH......Queuing Systems Sign Holder and Stem
      • SIZE......5X7 or 7X11
      QSSH(SIZE)-Queuing Systems Sign Holder and Stem
