Trailer Coupler and Jack Displays

Trailer Coupler and Jack Displays Trailer Coupler and Jack Displays

  • Parts List

    A Trailer Hitch Support Arm

    • Use for single trailer tongue
    • Jack can be attached as well
    • For each arm order one Trailer Hitch Bracket (THSB)
    Part Number: THSA(NL)
    • THSA......Trailer Hitch Support Arm
    • NL......Nominal Length 10" to 28" in 2" increments and 40" (254 mm to 711 mm in 51 mm increments and 1016 mm)

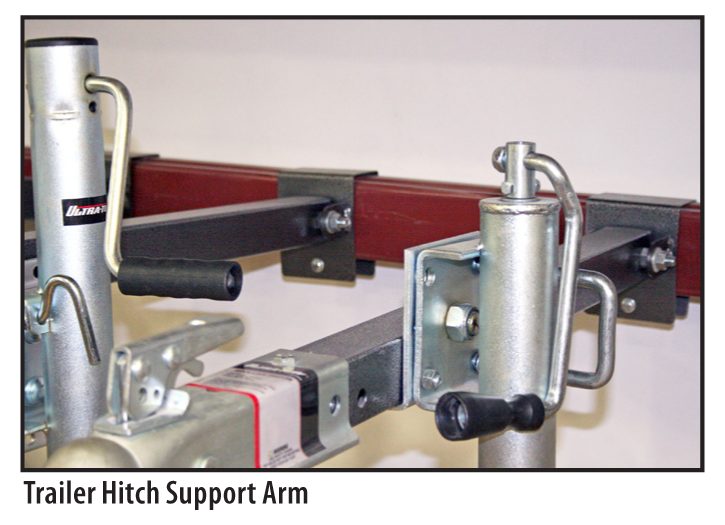

    THSA(NL)-Trailer Hitch Support Arm

    B A-Frame Trailer Coupler Angled

    • Use for A-frame trailer tongue
    • Two required when used with a-frame
    • For each arm order two Trailer Hitch Brackets (THSB)
    Part Number: AFTCA(NL)
    • AFTCA......A-Frame Trailer Hitch Coupler Angled
    • NL......Nominal Length Blank=16" (406 mm) 28=28" (711 mm)

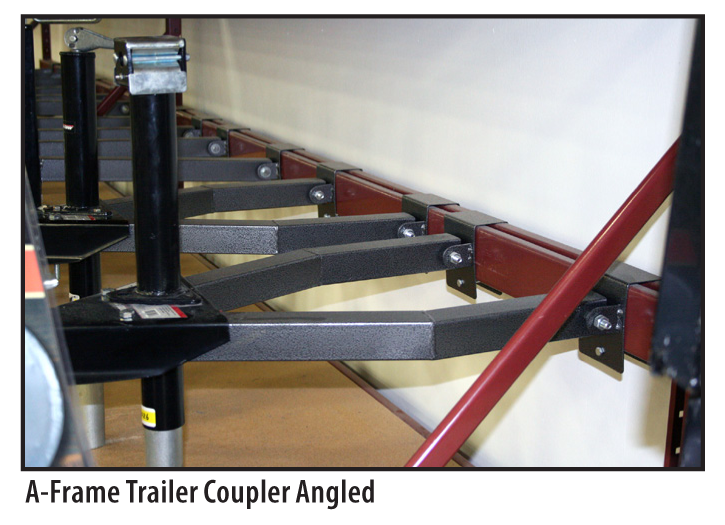

    AFTCA(NL)-A-Frame Trailer Coupler Angled

    C Trailer Hitch Support Bracket

    • Bracket saddles rear beam
    • Both arms attach to Trailer Hitch Support Bracket (THSB) with a bolt
    • For each arm order one Trailer Hitch Brackets (THSB)
    Part Number: THSB
    • THSB......Trailer Hitch Support Bracket
    THSB-Trailer Hitch Support Bracket

    D Adjustable Tire Beam

    • Use as rear beam for Trailer Hitch Support Arm [THSA(NL)]
    • Trailer Hitch Support Bracket (THSB) saddles Adjustable Tire Beam
    • Use 3.5 and 1 step beam for this application
    Part Number: Q10871-(NH)(NL)-2
    • Q10871......Wide Span Tire Display
    • NH......Nominal Beam Height 35=3.5" (89 mm) 50=5" (127 mm) 60=6" (152 mm)
    • NL......Nominal Length 36" to 144" and 150" (914 mm to 3658 mm and 3810 mm)
    Q10871-(NH)(NL)-2-Adjustable Tire Beam
Madix Inc.
