T-Rack Softlines

  • T-Rack Softlines

    T-Rack Softlines

    T-Rack Softlines fixture is created using snap-together Tube Line parts for quick installation. The typical T-Rack fixture includes a T-Rack Fashion Upright and End Frame, T-Rack Tie Bar, Top Cap Single Track, and Tube Line Metal Shelves. T-Rack configurations can be customized with a variety of accessories to accomodate any apparel applications.

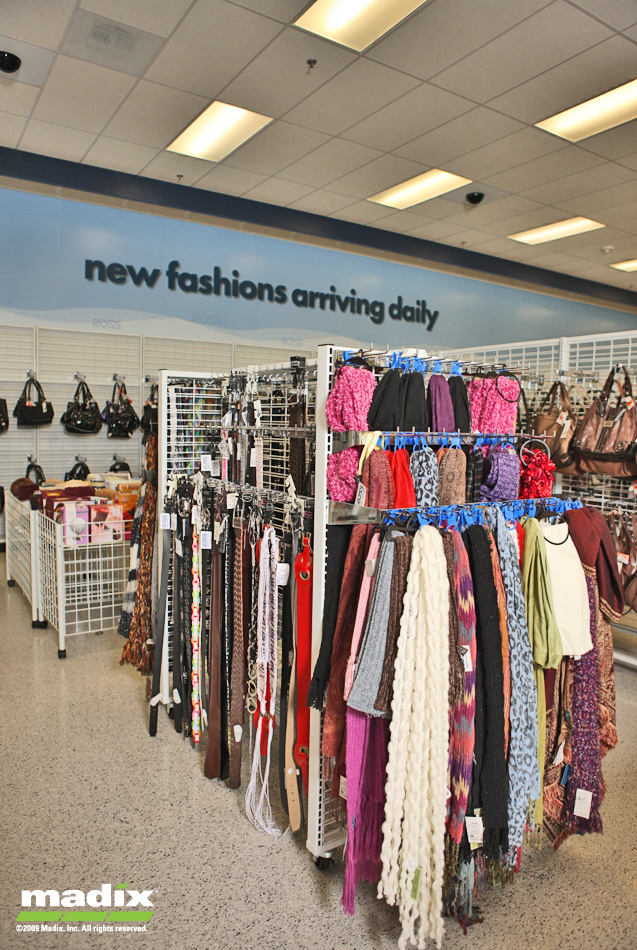

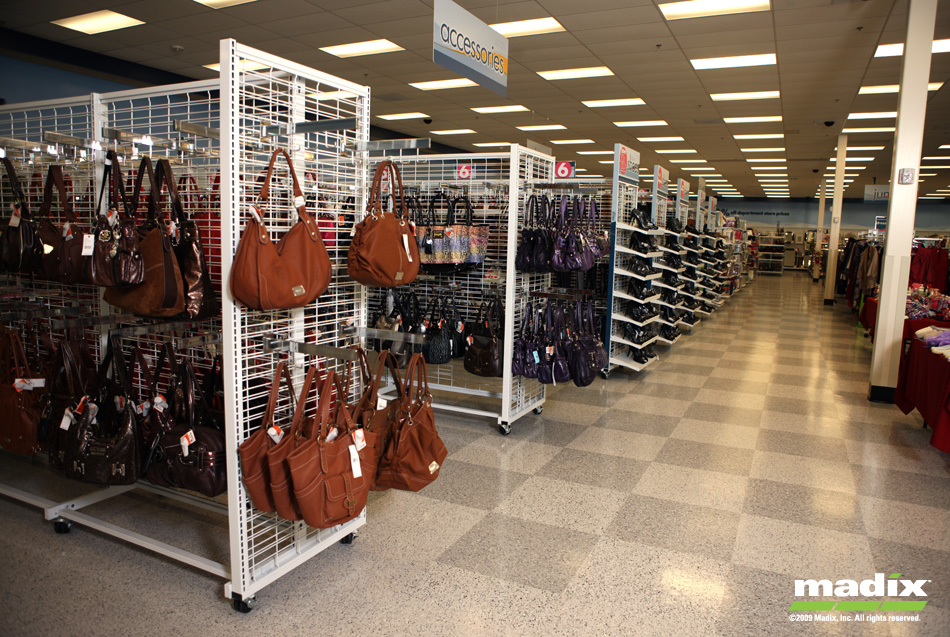

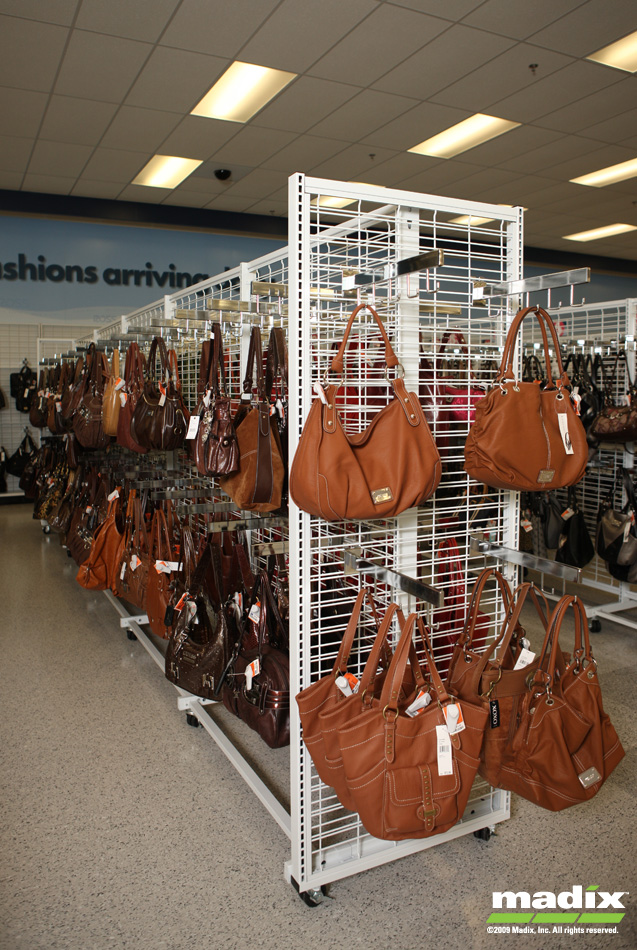

    • Gallery

    • Components for T-Rack Softlines

      Reveal/Hide Components

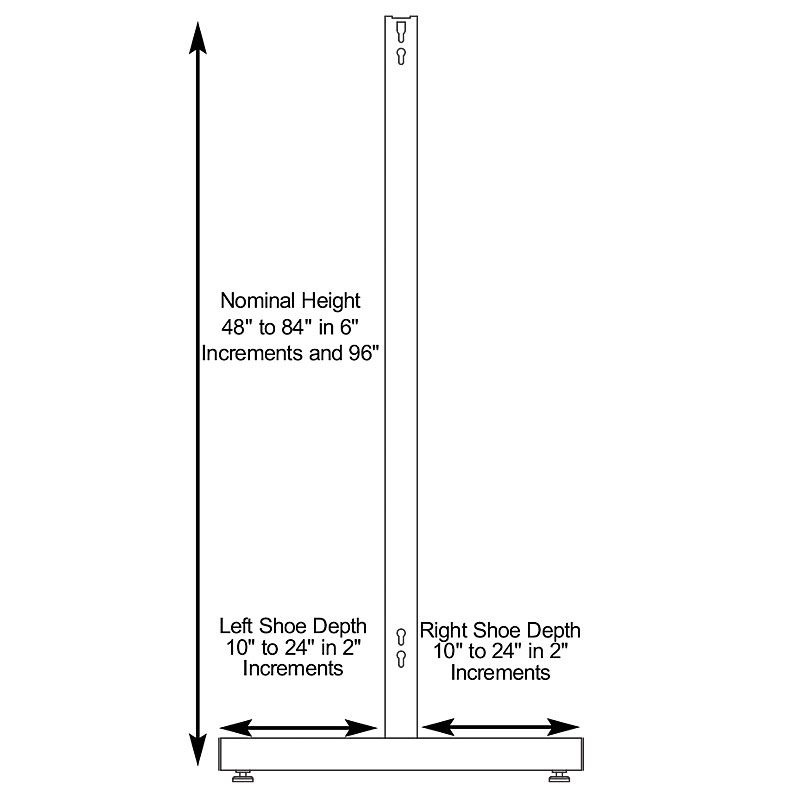

       T-Rack Counter Upright

        Part Number: TLTRCUS(NH)(LS)(RS)
        • TLTRCUS........T-Rack Counter Upright
        • NH .......Nominal Height 48" to 84" in 6" Increments and 96" ........(121.92 cm to 213.36 cm in 15.24 cm Increments and 243.84 cm)
        • LS........Left Shoe Depth 10" to 24" in 2" Increments ........(25.40 cm to 60.96 cm in 5.08 cm Increments)
        • RS.........Right Shoe Depth 10" to 24" in 2" Increments ........(25.40 cm to 60.96 cm in 5.08 cm Increments)
        TLTRCUS(NH)(LS)(RS)-T-Rack Counter Upright

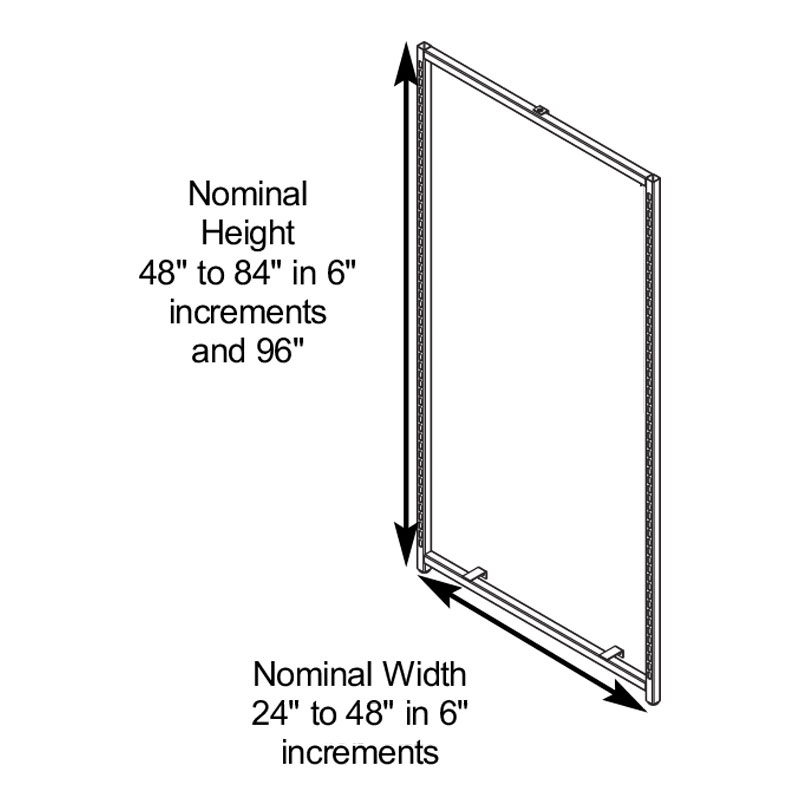

         T-Rack Fashion End Frame

          Part Number: TLTREFSF(NW)(NH)
          • TLTREFSF ......T-Rack Fashion End Frame
          • NW........Nominal Width 24" to 48" in 6" Increments ........(60.96 cm to 121.92 cm in 15.24 cm Increments)
          • NH ........Nominal Height 48" to 84" in 6" Increments and 96" ........(121.92 cm to 213.36 cm in 15.24 cm Increments and 243.84 cm)
          TLTREFSF(NW)(NH)-T-Rack Fashion End Frame

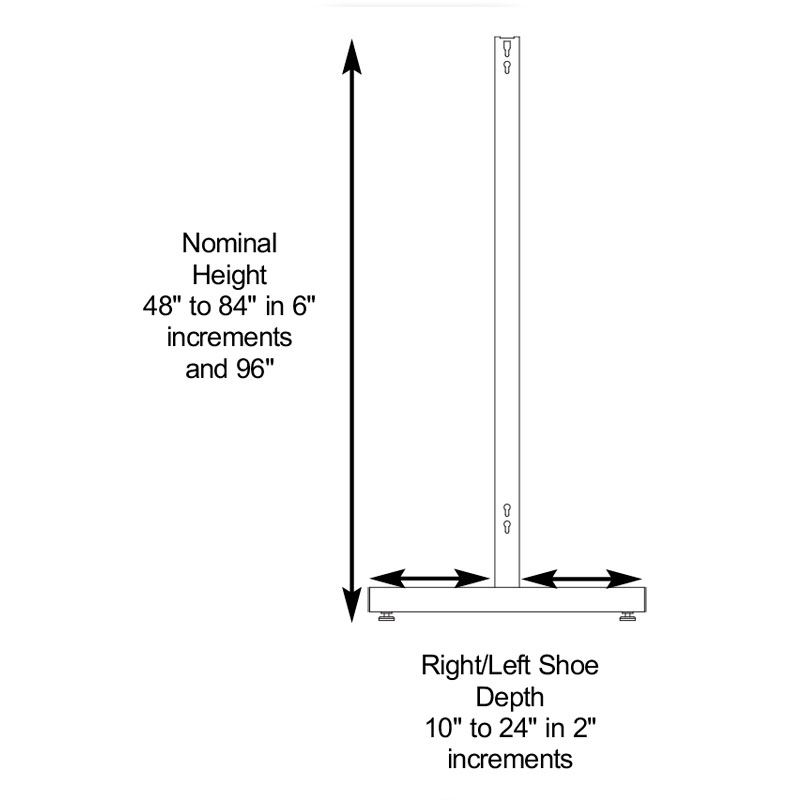

           T-Rack Fashion Upright

            Part Number: TLTRCUF(NH)(LS)(RS)
            • TLTRCUF........T-Rack Fashion Upright
            • NH .......Nominal Height 48" to 84" in 6" Increments and 96" ........(121.92 cm to 213.36 cm in 15.24 cm Increments and 243.84 cm)
            • LS........Left Shoe Depth 10" to 24" in 2" Increments ........(25.40 cm to 60.96 cm in 5.08 cm Increments)
            • RS.........Right Shoe Depth 10" to 24" in 2" Increments ........(25.40 cm to 60.96 cm in 5.08 cm Increments)
            TLTRCUF(NH)(LS)(RS)-T-Rack Fashion Upright
            TOTAL WIDTH OF UNIT EQUALS BOTH LEFT AND RIGHT SHOE DEPTHS PLUS 2.75".

             T-Rack Shoe End Frame

              Part Number: TLTREFSS(NW)(NH)
              • TLTREFSS......T-Rack Shoe End Frame
              • NW........Nominal Width 24" to 48" in 6" Increments ........(60.96 cm to 121.92 cm in 15.24 cm Increments)
              • NH........Nominal Height 48" to 84" in 6" Increments and 96" ........(121.92 cm to 213.36 cm in 15.24 Increments and 243.84 cm)
              TLTREFSS(NW)(NH)-T-Rack Shoe End Frame

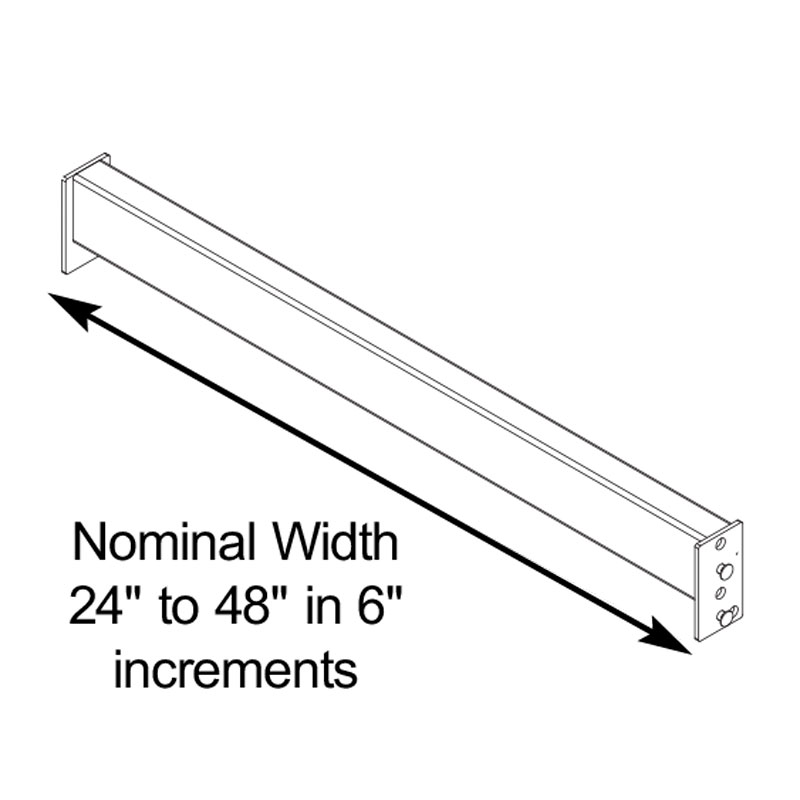

               T-Rack Tie Bar

                Part Number: TLTRTA(Z)(NW)
                • TLTRTA........Tube Line T-Rack Tie Bar
                • Z .......Tie Bar Type Z=No Back
                • NW........Nominal Width 24" to 48" in 6" Increments ........(60.96 cm to 121.92 cm in 15.24 cm Increments)
                TLTRTA(Z)(NW)-T-Rack Tie Bar

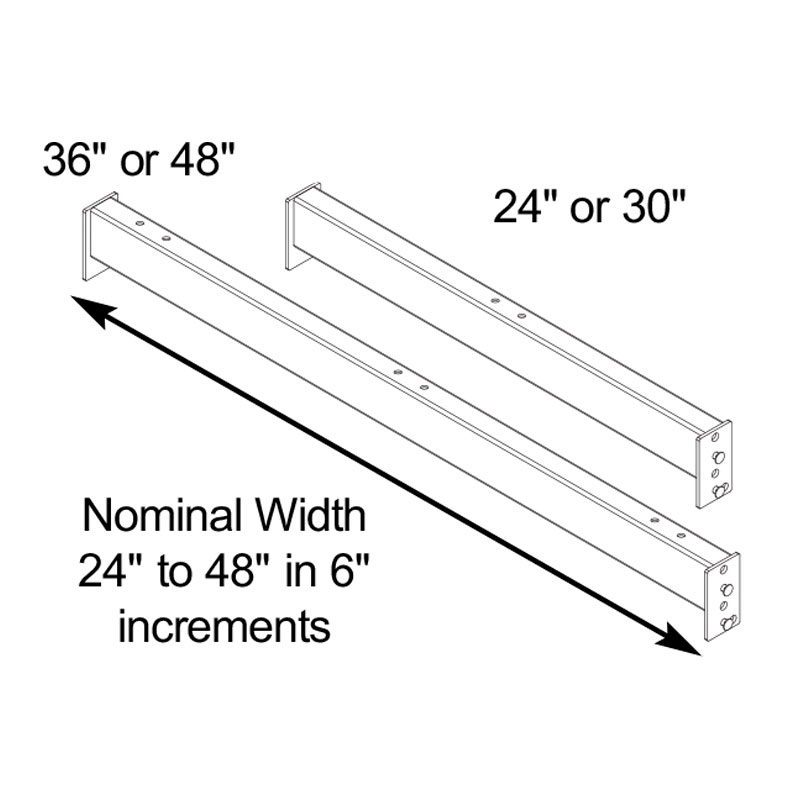

                 T-Rack Tie Bar Signage

                  Part Number: TLTRTASZ(NW)
                  • TLTRTA........Tube Line T-Rack Tie Bar “A” Type - No Back
                  • S........Signage
                  • Z .......Tie Bar Type Z=No Back
                  • NW........Nominal Width 24" to 48" in 6" Increments ........(60.96 cm to 121.92 cm in 15.24 cm Increments)
                  TLTRTASZ(NW)-T-Rack Tie Bar Signage

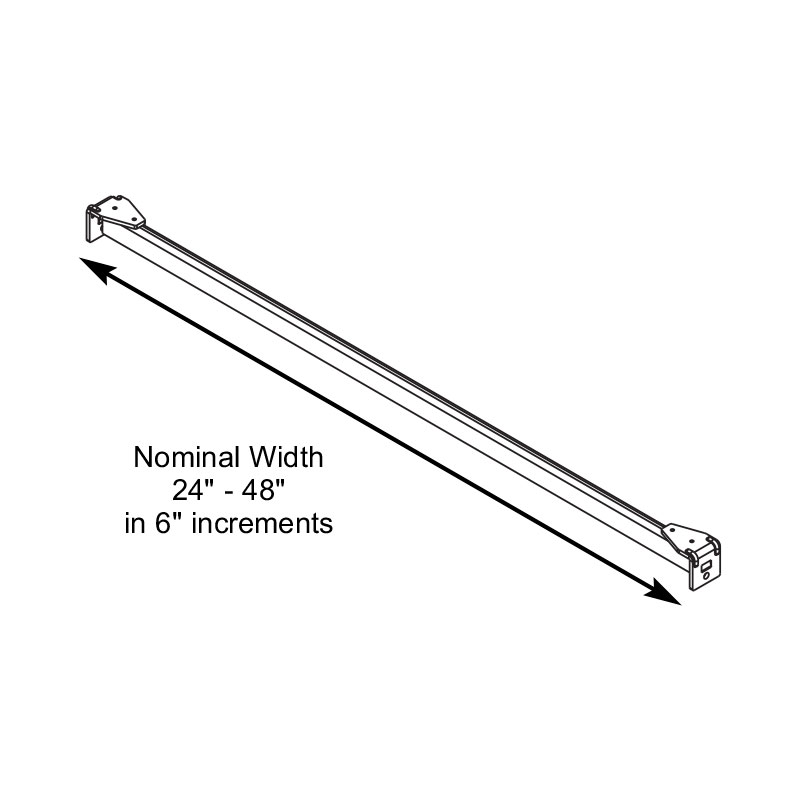

                   Top Cap Single Track

                    Part Number: TLTC1(NW)
                    • TLTC........Tube Line Top Track
                    • 1........Single Track
                    • NW........Nominal Width 24" to 48" in 6" Increments ........(60.96 cm to 121.92 cm in 15.24 cm Increments)
                    TLTC1(NW)-Top Cap Single Track

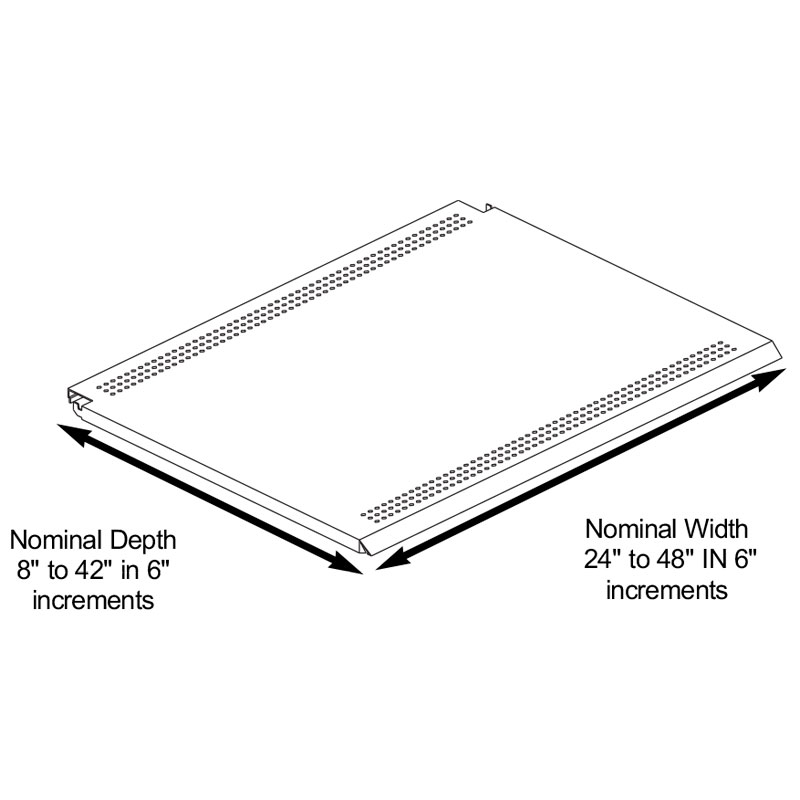

                     Tube Line T-Rack Side Deck

                      Part Number: TLSDTR(NW)(ND)
                      • TLSDTR........Tube Line T-Rack Side Deck
                      • NW .......Nominal Width 24" to 48" in 6" Increments ........(60.96 cm to 121.92 cm in 15.24 cm Increments)
                      • ND........Nominal Depth 8" to 42" in 2" Increments ........(20.32 cm to 106.68 cm in 5.08 cm Increments)
                      TLSDTR(NW)(ND)-Tube Line T-Rack Side Deck
