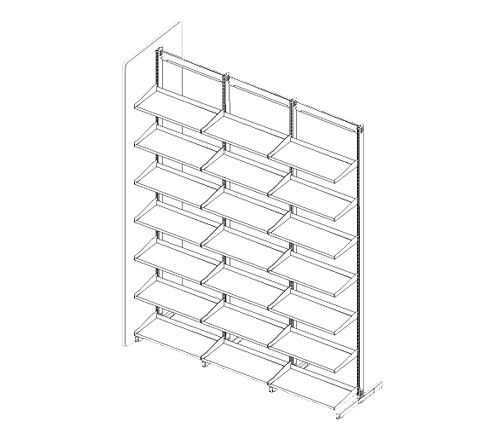

Tubular Pharmacy Shelving
- Incorporates many design features that accommodate today’s prescription area, facilitating any floor plan layout requirements
- A wide range of accessories adapt to this system, making this pharmacy shelving versatile
- Tubular uprights for greater stability
- 16" (406 mm) centers that adapt to building standards
- 8" (203 mm) deep x 16" (406 mm) wide shelves with two positions (0° or 12° downtilt shelves)
- Lock together structural components
- Open or closed back design
-
-

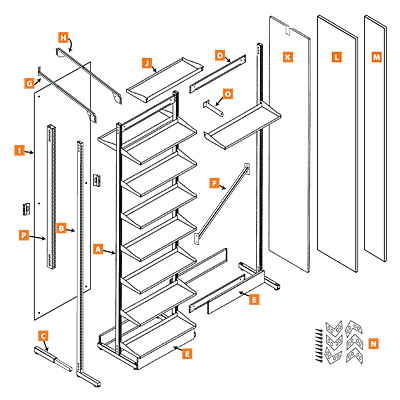

Tubular Pharmacy Shelving Part Description Part Number A Gondola Upright TRXUG(NH) B Wall Upright TRXUW(NH) C Wall Upright Shoe TRXUWSE D Bay Stretcher TRXSTB(NW) or TRXSTB(NW) E Kickplate TRXK(NW) or TRXK(NW) F Diagonal Stabilizer TRXD(NW) or TRXD(NW) G Wall Stretcher TRXSTW3054 H Aisle Stretcher TRXSTA3054 I Back with Stiffener Clips TRXB1684 or TRXB3284 J Shelf TRXSF1608 or TRXSF3208 K Double Bay Slotted End Panel TRXEPS(NW)(NH) L Double Bay End Panel TRXEP(ND)(NH) M Single Bay And Wall End Panel TRXEP(ND)(NH) N End Panel Hardware Kit for Building Corners TRXEPHC O Shelf Divider TRXSFD-08 P Upright Tube TRXUT(NH) -
-
Components for Tubular Pharmacy Shelving
Reveal/Hide ComponentsTubular Pharmacy Base Shelf End Cover, Wall Version
- Finishes off ends of pharmacy units
- Consists of a left-hand and right-hand pair;
- Standard finish: Satin Black
Part Number: TRXECBS(ND)
- TRX..... Tubular Pharmacy
- ECBS..... Base Shelf End Cover, Wall Version
- ND.....Nominal Depth 08", 12", 16", or 18' (203 mm, 305 mm, 406 mm, or 457 mm)
A Tubular Pharmacy Gondola Upright
- Allows for merchandising on both sides of run
- Upright is constructed of 1" x 1½" (25 mm x 38 mm) tubular steel with slotting on both sides
- Shoes are welded to the upright
- Leveling legs included
- Standard finish: Snow White
Part Number: TRXUG(NH)(NDND)
- TRXUG..... Tubular Pharmacy Gondola Upright
- NH..... Nominal Height 84" (2133 mm)
- NDND..... Nominal Depth/Nominal Depth 0812=08"/12" (203 mm/305 mm) 1212=12"/12" (305 mm/305 mm) 1616=16"/16" (406 mm/406 mm) 1818=18"/18" (457 mm/457 mm)
B Tubular Pharmacy Wall Upright
- Allows for merchandising on one side of run, but can be made into a Gondola Upright by adding the Wall Upright Shoe Extension
- Upright is constructed of 1" x 1½" (25 mm x 38 mm) tubular steel with slotting on both sides
- Shoes are welded to the upright
- Leveling legs included
- Standard finish: Snow White
Part Number: TRXUW(NH)(ND)
- TRXUW..... Tubular Pharmacy Wall Upright
- NH.....Nominal Height 48" to 84" in 6" increments (1219 mm to 2133 mm im 152 mm increments)
- ND.....Nominal Depth Blank=8", 12", 14", 16" or 18" (203 mm, 305 mm, 356 mm, 406 mm or 457 mm)
C Tubular Pharmacy Wall Upright Shoe Extension
- Adjustable to convert a Pharmacy Wall Upright into a Gondola Upright
- Available in one size only
- Standard finish: Snow White
Part Number: TRXUWSE
- TRXU..... Tubular Pharmacy Upright
- WSE.....Wall Shoe Extension
D Tubular Pharmacy Bay Stretcher
- Used to attach one upright to another
- Use one Stretcher at top and bottom of each bay
- Standard finish: Snow White
Part Number: TRXSTB(NW)
- TRXSTB..... Tubular Pharmacy Bay Stretcher
- NW..... Nominal Width 14", 16", 24", 28", 30", 32", 36",42" or 48" (356 mm, 406 mm, 610 mm, 711 mm, 762 mm, 813 mm, 914 mm, 1067 mm or 1219 mm)
E Tubular Pharmacy Kickplate
- Used as bottom filler between floor and shelf
- Standard finish: Satin Black
Part Number: TRXK(NW)
- TRXK..... Tubular Pharmacy Kickplate
- NW..... Nominal Width 14", 16", 24", 28", 30", 32", 36", 42" or 48" (356 mm, 406 mm, 610 mm, 711 mm, 762 mm, 813 mm, 914 mm, 1067 mm or 1219 mm)
F Tubular Pharmacy Diagonal Stabilizer
- Adds stability to pharmacy unit when back panels are not being used
- Only one required per gondola run
- Standard finish: Snow White
Part Number: TRXD(NW)
- TRXD..... Tubular Pharmacy Diagonal
- NW..... Nominal Width 14", 16", 24", 28", 30", 32", 36", 42" or 48" (356 mm, 406 mm, 610 mm, 711 mm, 762 mm, 813 mm, 914 mm, 1067 mm or 1219 mm)

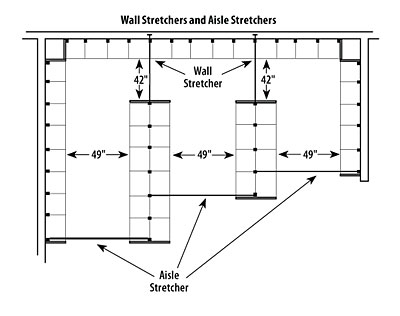

H Tubular Pharmacy Aisle Stretcher
- Used overhead to stabilize bays
- Tabs on Aisle Stretchers lock into uprights of opposite runs
- Standard finish: Snow White
Part Number: TRXSTA(OPT)
- TRXSTA..... Tubular Pharmacy Aisle Stretcher
- OPT..... 3054=Adjustable Width 30" to 54" (762 mm to 1371 mm) 3062=Adjustable Width 30" to 62" (762 mm to 1575 mm) 4078=Adjustable Width 40" to 78 " (1016 mm to 1981 mm)
I Tubular Pharmacy Back
- Optional for both Wall and Gondola units
- 3/16" (5 mm) painted hardboard–same color both sides
- Requires six TRXBR-30PK clips per back
- Standard finish: Snow White
Part Number: TRXBP(NW)(NH)
- TRXBP..... Tubular Pharmacy Back Panel
- NW..... Nominal Width 16", 32", 48" (406 mm, 813 mm, 1219 mm)
- NH..... Nominal Height 84" (2133 mm)
J Tubular Pharmacy Back Clips
- Six required for TRXBP(NW)(NH)
- Clear plastic clips
- Packs of thirty (for five backs)
Part Number: TRXBR-30PK
- TRXBR..... Tubular Pharmacy Back Clips
- 30PK..... Pack of 30
K Tubular Pharmacy Shelf
- Two position shelf with integral brackets has 30 lb (14 kg) weight capacity
- Shelves may be installed flat, downtilt 12° or upside-down for a smooth display surface
- Optional Shelf Dividers may be used, except in upside-down position
- Accepts acrylic front [TRXSFAF(NW)(NH)]
- Standard finish: Snow White
Part Number: TRXSF(NW)(ND)
- TRXSF..... Tubular Pharmacy Shelf
- NW..... Nominal Width 14", 16", 24", 28", 30", 32", 36", 42" or 48" (356 mm, 406 mm, 610 mm, 711 mm, 762 mm, 813 mm, 914 mm, 1067 mm or 1219 mm)
- ND..... Nominal Depth 8" to 18" in 2" increments (203 mm to 457 mm in 51 mm increments)
Upside-down position only applies
to 8", 10" and 12" ND.
14", 16" and 18" ND does not use the upside-down position.L Tubular Pharmacy Shelf Divider
- Used with the Tubular Pharmacy Shelf [TRXSF(NW)(ND)] to provide product organization
- Dividers cannot be used when shelf is installed in the upside-down position
- Standard finish: Snow White
Part Number: TRXSFD-(ND)
- TRXSFD..... Tubular Pharmacy Shelf Divider
- ND..... Nominal Depth Nominal Depth 8" to 18" in 2" increments (203 mm to 457 mm in 51 mm increments)
M Tubular Pharmacy Shelf Acrylic Front
- Used with the Tubular Pharmacy Shelf [TRXSF(NW)(ND)] to provide product organization
Part Number: TRXSFAF(NW)(NH)
- TRXSFAF.... Tubular Pharmacy Shelf Acrylic Front
- NW..... Nominal Width 14", 16", 24", 28", 30", 32", 36", 42" or 48" (356 mm, 406 mm, 610 mm, 711 mm, 762 mm, 813 mm, 914 mm, 1067 mm or 1219 mm)
- NH..... Nominal Height 1.5", 2", 2.5", 3", 3.5", 4" (38 mm, 51 mm, 64 mm, 76 mm, 90 mm, 102 mm)
N O Tubular Pharmacy End Panel
- Used as finished trim to close off ends of runs
- Slotted Pharmacy End Panel is used in conjunction with Pharmacy Wall Stretcher for attachment to upright
- Constructed of 5/8" (16mm) particle board
- Can be ordered as Melamine or Laminate, with both sides and all edges in same finish
Part Number: TRXEP(OPT)(ND)(NH)
- TRXEP .... Tubular Pharmacy End Panel
- OPT..... S=Slot Blank=No Slot
- ND..... Nominal Depth 10"=Wall (254 mm) 18"=Gondola (457 mm)
- NH..... Nominal Height 84" (2133 mm)
Options
- OPTION .... S=Slot Blank=No Slot ND .... Nominal Depth 10"=Wall (254 mm) 18"=Gondola (457 mm) NH .... Nominal Height 84" (2133 mm)
Finish
- MSW ....Melamine Snow White LSW .... Laminate Snow White
Slot option used with Wall
Stretcher, TRXSTW(NW).P Tubular Pharmacy End Panel Hardware Kit for Corners
- Used for building corners
- Order one hardware kit for each corner required
Part Number: TRXEPHC
- TRXEP ....Tubular Pharmacy End Panel
- HC ....Hardware Kit for Corners
Q Tubular Pharmacy Upright Tube
- May be anchored to wall, opening up more floor space
- Uprights may be installed without use of Tubular Pharmacy Bay Stretchers, TRXSTB(NW), sold separately
- Bay Stretchers determine spacing and allow for optimal anchoring that will not interfere with shelf placement
- Constructed of 1" x 1½" (25 mm x 38 mm) tubing
- Standard finish: Snow White
Part Number: TRXUT(NH)
- TRXUT .... Tubular Pharmacy Upright Tube
- NH .... Nominal Height 12" to 48" in 6" Increments (304 mm to 1219 mm in 152 mm Increments)
-
Accessories for Tubular Pharmacy Shelving
Reveal/Hide AccessoriesPharmacy Wire Grid Shelf
- Designed for use as prescription ready rack within Tubular Pharmacy System
- Available in widths of 16" (406 mm), 32" (813 mm), 48" (1219 mm) x 6" (152 mm) deep, 2" (51 mm) front lip and 5" (127 mm) back height
- Load capacity 30 lbs (14 kg)
- Hooks into upright slots with welded-on clips, no additional brackets needed
- Sold in packs of 25
- Standard finishes: Powder Chrome and Snow White
Part Number: RXWGS-(NW)
- RXWGS..... Pharmacy Wire Grid Shelf
- NW..... Nominal Width 16", 32", 48" (406 mm, 813 mm, 1219 mm)
Pharmacy Wire Grid Shelf Divider
- Sold in packs of 25
Part Number: PWGSD-25PK
- PWGSD..... Pharmacy Wire Grid Shelf Divider
- 25PK..... 25 Pack
RX Ready Rack
- Use in Maxi Line Shelving and Pharmacy Departments
- Consists of four tiers
- Nominal Width 36" (914 mm) or 48" (1219 mm) x 15½" (394 mm) High x 14" (356 mm) Deep
- Standard finish: Snow White
Part Number: RXRR-(NW)-4
- RXRR..... RX Ready Rack
- NW..... Nominal Width 36" or 48" (914 mm, 1219 mm)
Tubular Pharmacy Base Shelf
- Replaces standard shelf and kickplate for a cleaner look
- Reduces number of parts
- 32" (8913 mm) and 48" (1219 mm) can be used on 16" (406 mm) center uprights
- Standard finish: Snow White
Part Number: TRXBS(NW)(ND)
- TRXBS..... Tubular Pharmacy Base Shelf
- NW..... Nominal Width 16", 24", 28", 30", 32", 36", 42" or 48" (406 mm, 610 mm, 711 mm, 762 mm, 813 mm, 914 mm, 1067 mm or 1219 mm)
- ND..... Nominal Depth 08" or 10" (203 mm or 254 mm)
Tubular Pharmacy End Frame
- Used to increase storage at ends of Pharmacy Gondola runs
- Frame hooks over top and into legs of Pharmacy Gondola Upright
- Accepts all 16" (406 mm) wide Tubular Pharmacy accessories
- Load capacity is 800 inch-lbs evenly distributed
- Standard finish: Snow White
Part Number: TRXEF(NH)(NW)
- TRXEF..... Tubular Pharmacy End Frame
- NH..... Nominal Height 84" (2133 mm)
- NW..... Nominal Width 16" (406 mm)
Tubular Pharmacy Shelf, Multi-Function
- Includes angled phone surface with phonebook storage underneath, pencil holder, small envelope holder, large envelope holder, GEM clip holders and prescription pad holder
- Standard finish: Snow White
Part Number: TRXSFM(NW)
- TRXSFM..... Tubular Pharmacy Shelf–Multi-Function
- NW..... Nominal Width 16" (406 mm
Tubular Pharmacy Will Call Bar
- Hangs in standard pharmacy uprights
- Projects 5" (127 mm), 6" (152 mm) or 8" (203 mm) from face of uprights
- Will call bags and clips not included
Part Number: TRXWCB(NW)(ND)
- TRX..... Tubular Pharmacy
- WCB.....Will Call Bar
- NW..... Nominal Width 16", 32", 48" (406 mm, 813 mm, 1219 mm)
- ND..... Nominal Depth 5", 6", 8" (127 mm, 152 mm, 203 mm)
-
