Suspended Maxi System

  • Suspended Maxi System

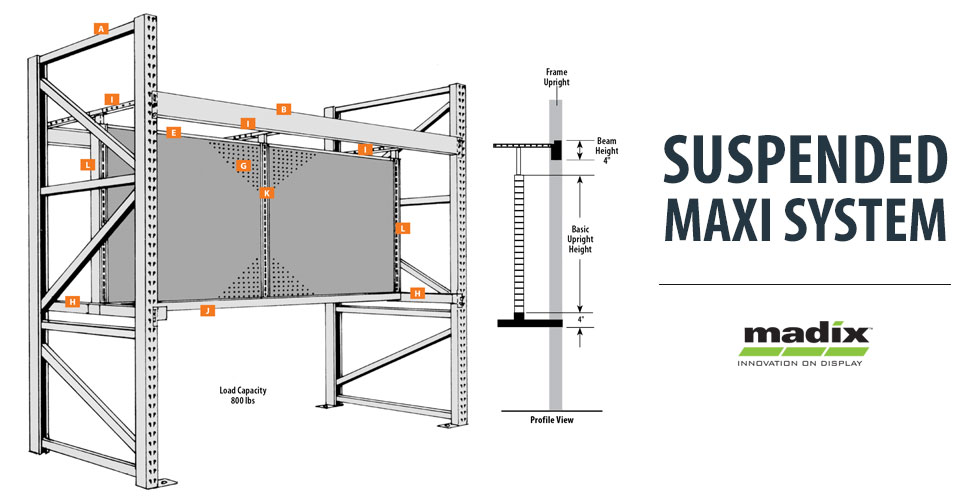

    Designed to merchandise pegged or shelved products in a Pallet Rack section, Suspended Maxi may be used in any section height greater than 72" and with all beam lengths. The system is depth adjustable and accepts most Maxi Line accessories.

      Order the required number of backs for designated units; order separately Hardboard BXH-(NW)(NH) or Pegboard BXP-(NW)(NH)
  • Suspended Maxi System

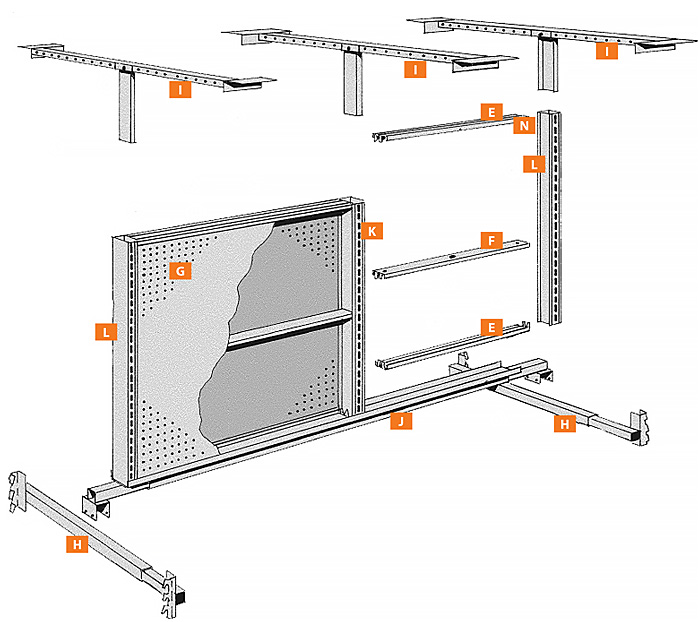

    Part Description Part Number QTY
    A Pallet Rack Frames PR2(TYPE)F(ND)(NH) As Required
    B Pallet Rack Beams PR2B(NH)(NL)2 2
    C* Pallet Rack Deck Supports MPRDS-(ND) As Required
    D* Pallet Rack Decks Various Decks to choose from As Required
    E Top Spanner STL-(NW) 4
    F* Center Spanner SC-(NW) 2
    G Extension Back Panels, pegboard or hardboard BX(TYPE)-(NW)(NH) 4
    H Pallet Rack Basic Upright Support, frame depth PRBUNDS-(ND) 1 Pair
    I Basic Upright Support Bracket, Modified Omega MOUSB-(ND)-F 3
    J Pallet Rack Basic Upright Support, beam length PRBUNWS-(NL) 1
    K Pallet Rack Basic Upright PRBU-(NH) 1
    L Pallet Rack Basic Upright, flush side PRFSBU-(NH) 2
    M* STL Clip STLCLIP 1 Pair

    *Not shown
