• Omega Merchandising System

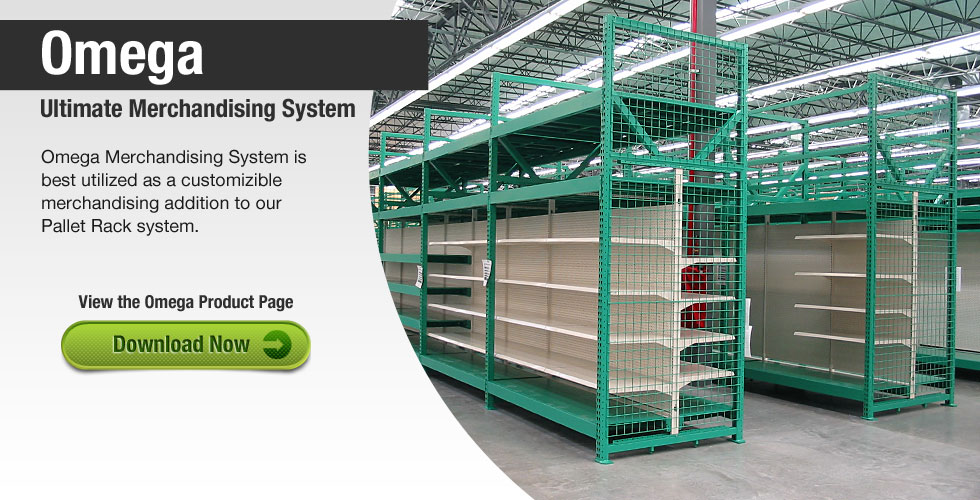

  Ultimate Merchandising System

  Omega Merchandising System is best utilized as a customizible merchandising addition to our Pallet Rack system. The Omega Merchandising System adds functionality and efficiency, as an innovative solution in mass merchandising operations.

• Downloads

  • Heavy-Duty Systems Catalog »

Wood and Wire Decks Molding Racks

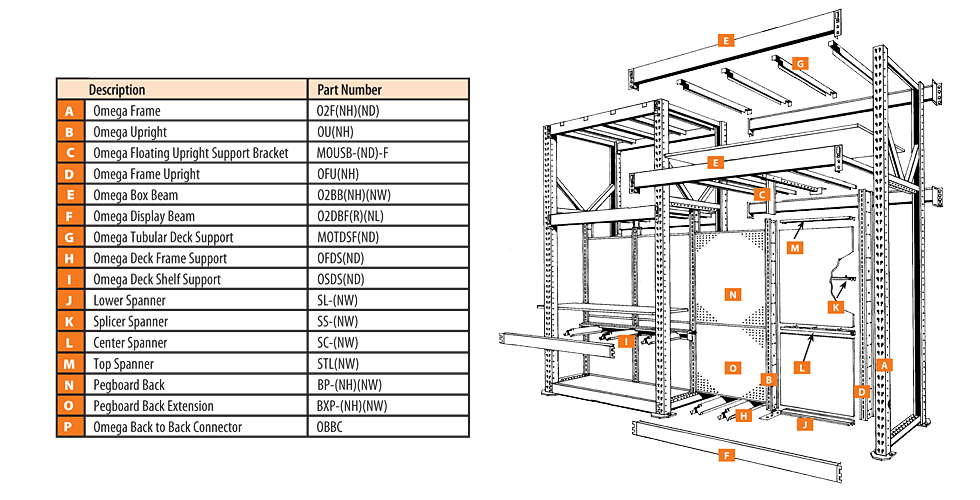

• Components for Omega Merchandising System

  Reveal/Hide Components

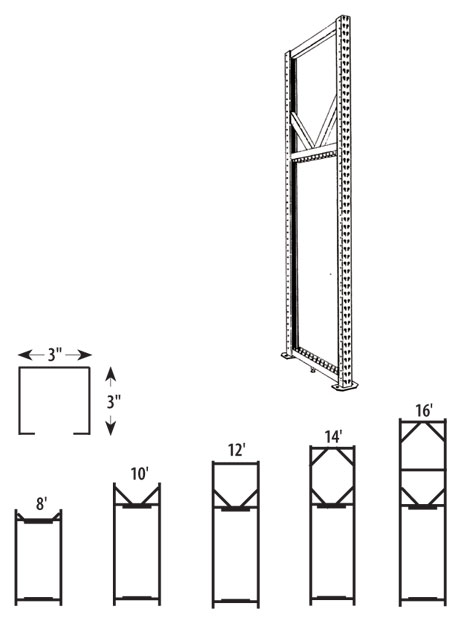

   Omega Frame

  • Slotted for beam adjustment in 2" (51 mm) increments
  • Welded construction
  • Upper and Lower channels accept Omega Upright with 1" (25 mm) adjustments
  • Heavy duty diagonals and footplates

  Part Number: O2F(NH)(ND)

  • O2F......Omega Frame
  • NH......Nominal Height 96" to 192" in 24" increments (2438 mm to 4877 mm in 610 mm increments)
  • ND......Nominal Depth 36" to 48" in 6" increments (914 mm to 1,219 mm in 152 mm increments)



  To preclude overturning, the frame depth x 6 cannot exceed the height of the topmost loaded beam pair, unless all the frames are properly anchored or braced externally

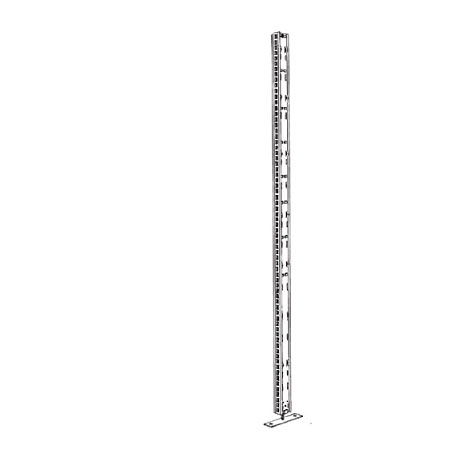

   Omega Upright

  • Supports backs, spanners, and standard shelving and accessories
  • Must be used with Omega Upright Support Bracket
  • Must be anchored to the floor

  Part Number: OU(NH)

  • OU......Omega Upright
  • NH......Nominal Height 78" to 90" in 6" increments (1,981 mm to 2286 mm in 152 mm increments)

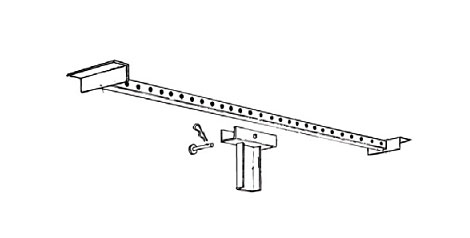

   Omega Floating Upright Support Bracket

  • Supports backs, spanners, and standard shelving and accessories
  • Must be used with Omega Upright

  Part Number: MOUSB-(ND)-F

  • MOUSB......Omega Floating Upright Support Bracket
  • (ND)-F......Nominal Depth 36" to 48" in 6" increments (914 mm to 1219 mm in 152 mm increments)

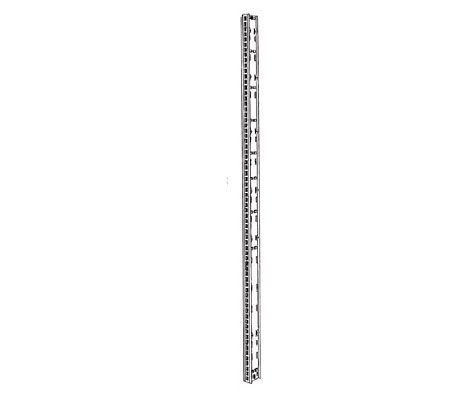

   Omega Frame Upright

  • Use with Omega Frame when standard shelving, backs or accessories are used

  Part Number: OFU(NH)

  • OFU......Omega Frame Upright
  • NH......Nominal Height 78" to 90" in 6" increments (1981 mm to 2286 mm in 152 mm increments)

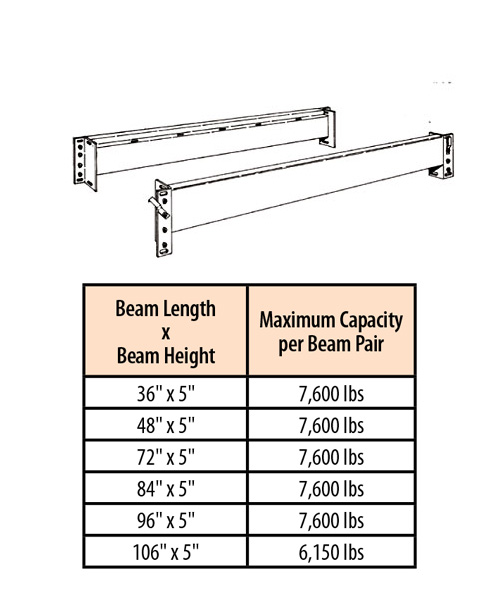

   Omega Box Beam

  • Can accommodate particle board, Wire Grid Deck, or 2" (51 mm) dimensional board decking
  • Use only with Omega Tie Bars and Omega Deck Top

  Part Number: O2BB(NH)(NW)

  • O2BB......Omega Box Beam
  • NH......Nominal Height 50" (1270 mm)
  • NW......Nominal Width 36" to 108" in 12" and 24" increments (1981 mm to 2743 mm in 152 mm increments)

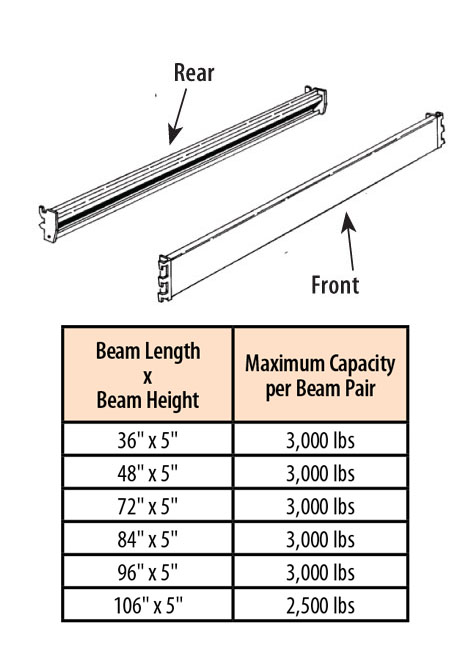

   Omega Display Beam

  • Uses Omega Deck Supports
  • Accepts Wire Grid Decks or particle board decks

  Part Number: O2DB(OPT)(NL)HD

  • O2DB......Omega Display Beam 2" OC (51 mm)
  • OPT......F=Front R=Rear
  • NL......Nominal Length 0447=4' (1219 mm) 0687=6' (1829 mm) 0807=7' (2134 mm) 0927=8' (2438 mm) 1047=9' (2743 mm)
  • HD......Heavy-Duty

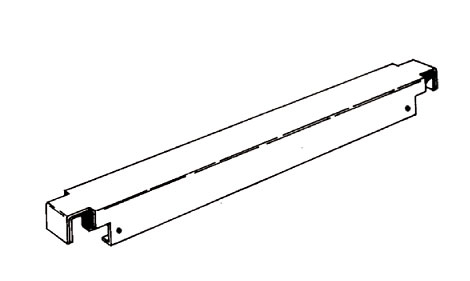

   Omega Tubular Deck Support

  • Load-bearing pallet support
  • Fits flush with top of beam
  • Rests on top of beam step
  • One pair required per pallet to be used
  • Load capacity is 5,000 lbs per pair

  Part Number: MOTDSF(ND)

  • MOTDSF.....Omega Tubular Deck Support
  • F......Flush
  • ND......Nominal Depth 36", 42", & 48" (914 mm, 1066 mm, & 1219 mm)

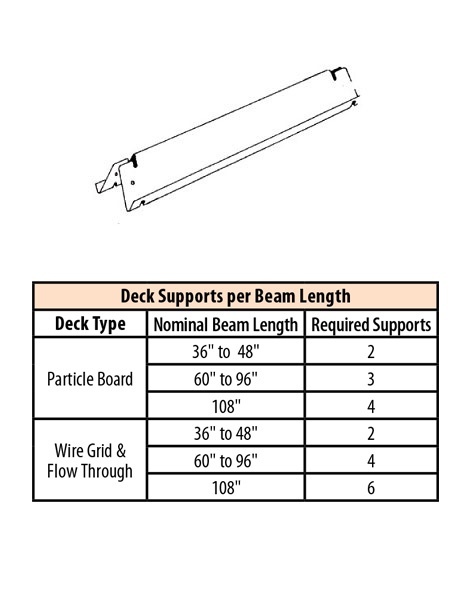

   Omega Deck Frame Support

  • To be used with full frame depth Decks and two front display beams only

  Part Number: OFDS(ND)

  • OFDS......Omega Deck Frame Support
  • ND......Nominal Depth 36" to 48" in 6" increments (914 mm to 1066 mm in 152 mm increments)

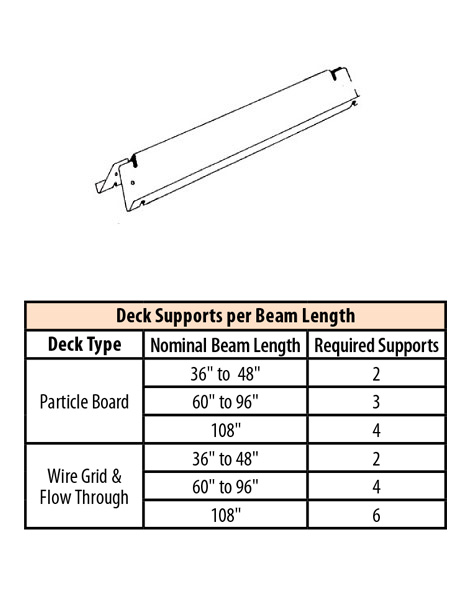

   Omega Deck Shelf Support

  • Use only with Omega Deck Shelf
  • Use only with a front and rear-display beam

  Part Number: OSDS(ND)

  • OSDS......Omega Deck Shelf Supports
  • ND......Nominal Depth 18" to 34" in 2" increments (457 mm to 864 mm in 51 mm increments)



   Lower Spanner

  • "Snap-in" spanner secures uprights at equal spacing and supports back panels
  • Electrical knockouts

  Part Number: SL-(NW)

  • SL......Lower Spanner
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)

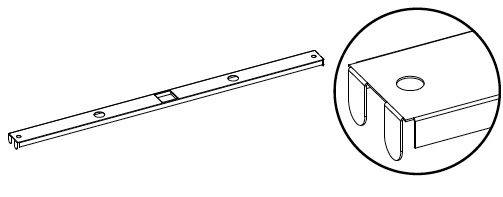

   Splicer Spanner

  • Splicer spanner joins two back panels in sections 78" (1981 mm) and above
  • Electrical and Telescoping Upright knockouts

  Part Number: SS-(NW)

  • SS......Splicer Spanner
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)

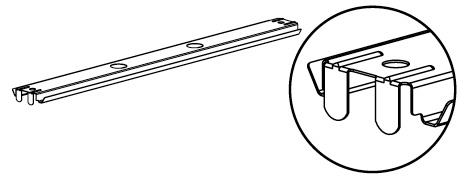

   Center Spanner

  • Galvanized "snap-in" spanner assures back panel rigidity
  • Electrical and Telescoping Upright knockouts
  • Galvanized only

  Part Number: SC-(NW)

  • SC......Center Spanner
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)

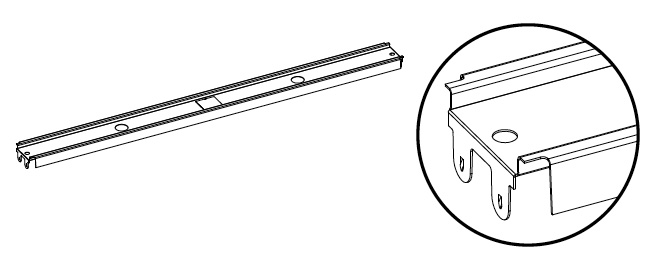

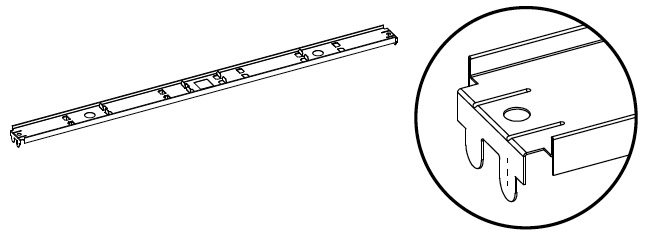

   Top Spanner

  • "Snap-in" spanner secures uprights at equal spacing, traps back panels and trims top of section
  • Electrical and Telescoping Upright knockouts

  Part Number: STL-(NW)

  • STL......Top Spanner
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)



   Pegboard Back

  • Back nominal height (NH) should match Basic Upright height

  Part Number: BP-(NW)(NH)

  • B......Back
  • P......Pegboard
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
  • NH......Nominal Height 36" to 72" in 6" increments (914 mm to 1829 mm in 152 mm increments)

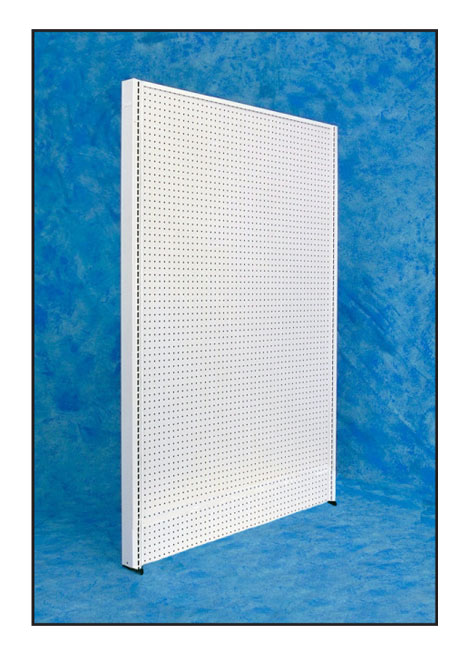

   Pegboard Back Extension

  Part Number: BXP-(NW)(NH)

  • BX......Extension Back
  • P......Pegboard
  • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
  • NH......Nominal Height 6" to 54" in 6" increments (152 mm to 1372 mm in 152 mm increments)



   Omega Back-to-Back Connector

  • Keeps back to back runs spaced properly
  • Use two connectors on frames 96" (2438 mm) high and three on taller units
  • Includes all hardware

  Part Number: OBBC-(SPACING)

  • OBBC......Omega Back to Back Connector
  • SPACING.....Spacing 6" to 12" in 1" increments (152 mm to 305 mm in 25 mm increments)



• Accessories for Omega Merchandising System

  Reveal/Hide Accessories

  No accessories found.

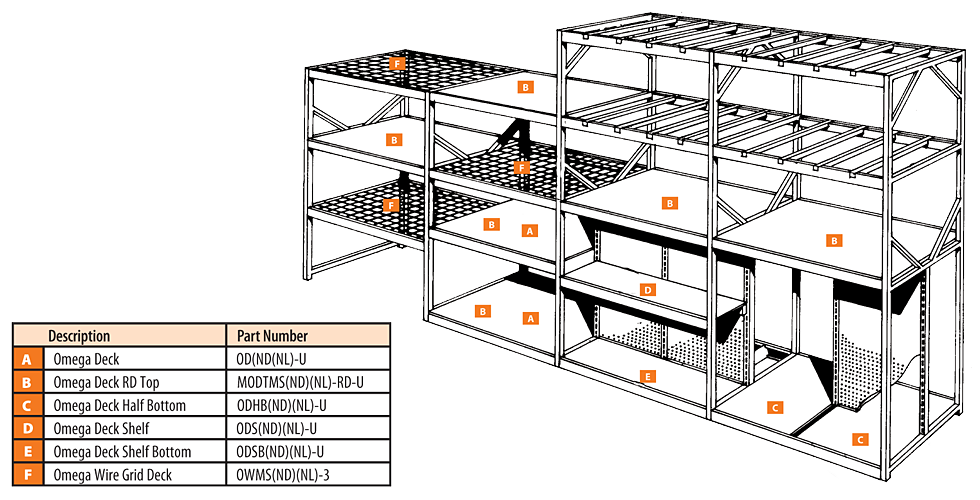

Omega Wood and Wire Decks

• Omega Wood and Wire Decks Components

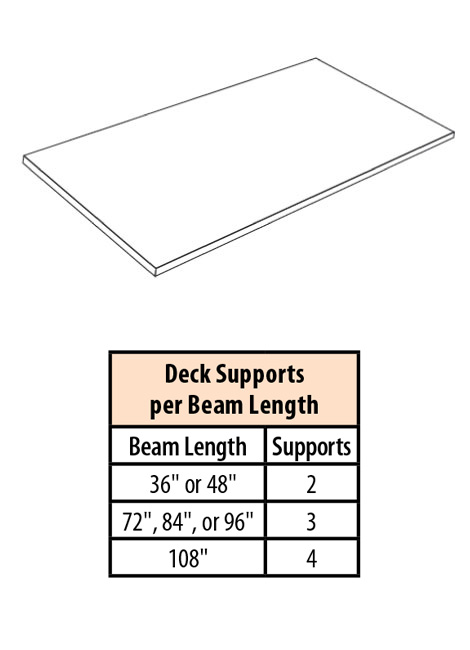

  Omega Frame Deck

  • Use as a full frame depth deck at the bottom or intermediate level
  • Use only with two Omega Display Beams, Front and Omega Deck Supports
  • Cannot be used in sections where backs are used

  Part Number: OD(ND)(NL)-(TYPE)

  • OD......Omega Deck
  • ND......Nominal Frame Depth 34", 40", 46" (914 mm, 1016 mm, 1168 mm)
  • NL......Nominal Beam Length 36", 48", 72", 84", 96", 108" (914 mm, 1219 mm, 1829 mm, 2438 mm, 2743 mm
  • TYPE......U=Unsealed S=Sealed



  Deck Supports are NOT included! Order Omega Deck Support [OFDS-(ND)]

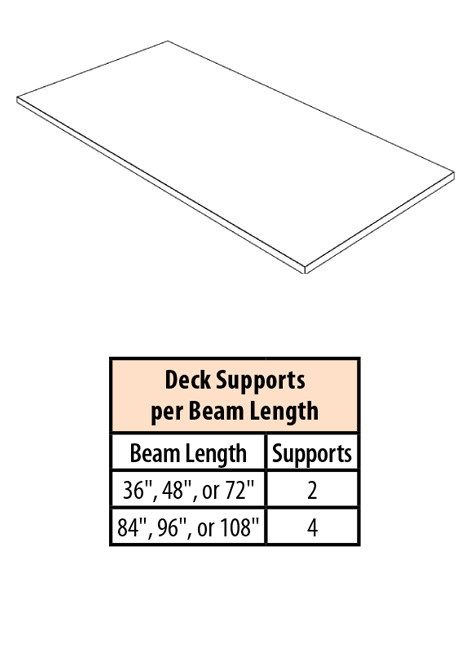

  Omega Deck Regular-Duty Top

  • Full-frame-width deck for use only with Omega Box Beams and Tie Bars
  • Industrial-grade 5/8" particle board
  • Uses Pallet and Omega Deck Rack Support [DSRPO-(ND)-1]

  Part Number: MODTMS(ND)(NL)-RD-(TYPE)

  • MODTMS...Omega Deck Top
  • ND......Nominal Frame Depth 34", 40", 46" (914 mm, 1016 mm, 1168 mm)
  • NL......Nominal Beam Length 36", 48", 72", 84", 96", 108" (914 mm, 1219 mm, 1829 mm, 2438 mm, 2743 mm
  • RD...... Regular-Duty
  • TYPE......U=Unsealed S=Sealed



  Deck Supports are NOT included! Order Pallet & Omega Rack Deck Supports [DSRPO-(ND)-1].

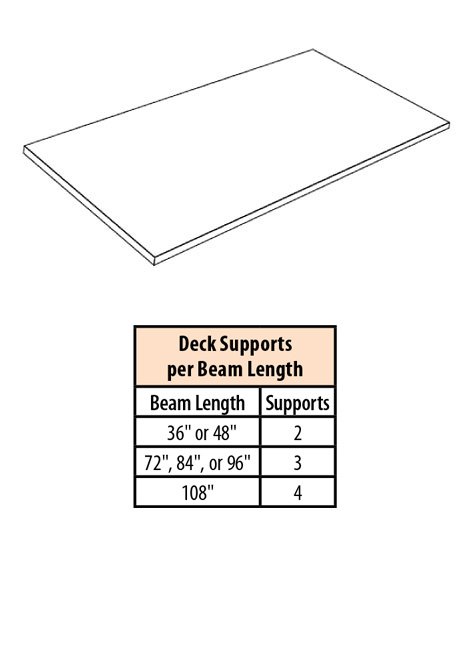

  Omega Deck Half Bottom

  • Full-frame-depth deck on two Omega Front Beams and the OFDS(ND)-HD Deck Support
  • Fits between the Omega Frame Upright and the Omega Upright
  • Use with or without back panels
  • Uses Omega Deck Frame Support [OFDS(ND)]

  Part Number: ODHB(ND)(NL)-(TYPE)

  • ODHB......Omega Deck Half Bottom
  • ND......Nominal Frame Depth 34", 40", 46" (914 mm, 1016 mm, 1168 mm)
  • NL......Nominal Beam Length 36" or 48" (914m or 1219 mm)
  • TYPE......U=Unsealed S=Sealed



  Deck Supports are NOT included! Order Omega Deck Support [OFDS(ND)].

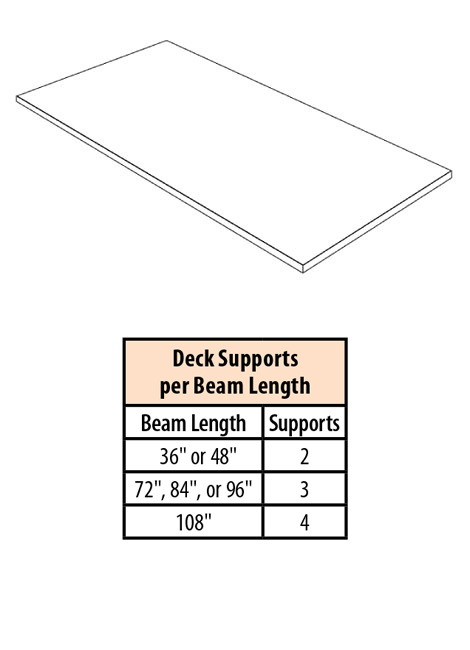

  Omega Deck Shelf

  • Partial-frame-depth deck fits one Omega Beam Front Display and one Omega Beam Rear Display plus Omega Shelf Deck Support
  • Only use at intermediate levels
  • Fits between Aisle Display Beam, Omega Upright, and back panel
  • Uses Omega Deck Frame Support [OFDS(ND)]

  Part Number: ODS(ND)(NL)-(TYPE)

  • OD......Omega Deck
  • S......Shelf
  • ND......Nominal Frame Depth 18" to 34" in 2" increments (457 mm to 864 mm in 51 mm increments)
  • NL......Nominal Beam Length
  • TYPE......U=Unsealed S=Sealed



  Deck Supports are NOT included! Order Omega Deck Support [OSDS(ND)].

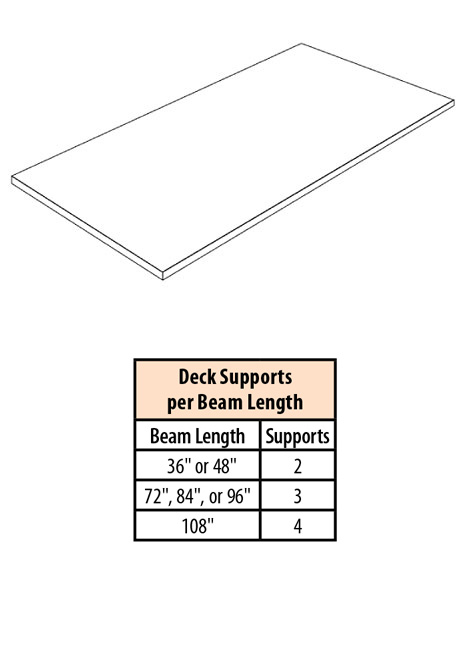

  Omega Deck Shelf Bottom

  • Partial-frame-depth Deck
  • Use with two Omega Front Beams and Omega Deck Frame Support
  • Fits between Aisle Display Beam, Omega Uprights, and back panel
  • Uses Omega Deck Frame Support [OFDS(ND)]

  Part Number: ODSB(ND)(NL)-(TYPE)

  • OD......Omega Deck
  • SB......Shelf Bottom
  • ND......Nominal Frame Depth 18" to 34" in 2" increments (457mm to 864 mm in 51 mm increments)
  • NL......Nominal Beam Length 36" or 48" (914m or 1219 mm)
  • TYPE......U=Unsealed S=Sealed



  Deck Supports are NOT included! Order Omega Deck Support [OFDS(ND)].

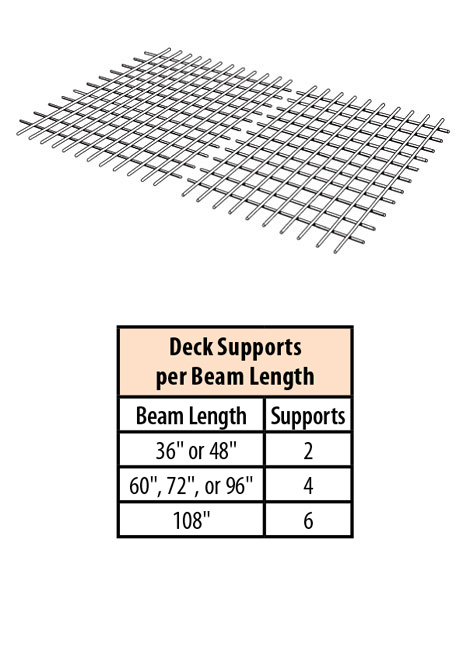

  Omega Wire Grid Decks

  • Pieced for ease of handling
  • 5/16" (8 mm) sturdy gauge wire welded on 3" (76 mm) grid centers
  • Standard finishes: Silver Vein, Sahara, or Blue Gray
  • Order deck supports separately
  • Both 72" (1829 mm) and 108" (2743 mm) decks come as four pieces
  • Uses Pallet and Omega Deck Rack Support [DSRPO-(ND)-1]

  Part Number: OWMS(ND)(NL)-3

  • O......Omega
  • WMS......Wire Grid Deck
  • ND......Nominal Frame Depth 36", 42", 48" (914 mm, 1067 mm, 1219 mm)
  • NL......Nominal Piece Length 24", 36", 48", 60", 72", 96", or 10" (610 mm, 914 mm, 1220 mm, 508 mm, 1829 mm, 2438 mm, or 2743 mm)
  • 3......Grid Size 3" OC (76 mm)



  Deck Supports are NOT included! Order Pallet Rack Deck Support [DSRPO-(ND)-1].

Omega Molding Rack

• Omega Molding Rack Components

  Omega Molding Rack Beams

  • Standoffs are predetermined for optimum product angle

  Part Number: O2FMRB(NL)-(OPT)

  • O2......Omega 2" OC (51 mm)
  • FMRB......Molding Rack Beams
  • NL......Nominal Width 0327=36" (914 mm) 0447=48" (1219 mm) 0687=72" (1829 mm) 0807=84" (2134 mm) 0927=96" (2438 mm) 1047=108"(2743mm)
  • 02......Standoff 02 = 2" (51 mm) 08 = 8" (203 mm) 14 = 14" (356 mm)



  Omega Retainer Beam

  • Install into the Omega uprights
  • Helps prevent merchandise from falling off shelf

  Part Number: O2DBF(NL)-LD

  • O2......Omega 2" OC (51 mm)
  • DBF......Retainer Beam
  • NL......Nominal Beam Length 3', 4', 6', 7', 8', 9' (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm, 2743 mm)
  • LD......Light-Duty



  Omega Molding Rack Beam Kit (not shown)

  • Beam Kits include top, middle, bottom and front beams
  • Mount front beam one slot higher than rear beam for a sloped deck, adding a front retainer beam keeps molding in place
  • Secure beams by bolting through frames in all situations
  • Individual Beams: Top Beam - 2" standoff Middle Beam - 8" standoff Bottom Beam - 14" standoff
  • Standard finishes: Sahara or Blue Gray

  Part Number: O2FMRK(NL)

  • O2......Omega 2" OC (51 mm)
  • FMRK......Molding Rack Beam Kit
  • NL......Nominal Beam Length 3', 4', 6', 7', 8', 9' (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm, 2743 mm)



  Vertical Divider Arms

  • Attaches straight in to the crossbar, or can be affixed at a 45° angle in either direction
  • Regular-Duty Divider Arms 3/8" (10 mm) diameter with red neoprene safety tip
  • Heavy-Duty Divider Arms 1" (25 mm) square tubing with vinyl safety cap
  • Standard finishes: Sahara or Blue Gray

  Part Number: VDA-(NL)(TYPE)

  • VDA......Vertical Divider Arms
  • NL......Nominal Divider Length R=10"-18" (254 mm-457 mm) H=20"-30" (508 mm-762 mm)
  • TYPE......R=Regular-Duty H=Heavy-Duty



  Threaded Vertical Divider Arms

  • Mounts straight out from the Vertical Divider Bar, or can be affixed at a 45° angle in either direction
  • Arms may be mounted to front and/or rear of standoff bars
  • Regular-duty divider arms .40" (10 mm) diameter with red neoprene safety tip
  • Heavy-duty arms 1" (25 mm) square tubing with vinyl safety cap
  • Threaded option locks arm, prevents accidental dismounting
  • Standard finishes: Sahara or Blue Gray

  Part Number: TVDA-(NL)(TYPE)

  • TVDA......Threaded Vertical Divider Arm
  • NL.....Regular-Duty: 06" to 20" in 2" increments (152 mm to 508 mm in 51 mm increments) Heavy-Duty: 12" to 30" in 2" increments (305 mm to 762 mm in 51 mm increments)
  • TYPE......R=Regular-Duty H=Heavy-Duty



  Omega Garden Tool Front Beam

  • Heavy-Duty Beam Body
  • Keyhole Slotting to fit Wide Span Garden Display Hook

  Part Number: O2GTFB-(NW)

  • O2GTFB......Omega Garden Tool Front Beam
  • NW......Nominal Width 0327=36" (914 mm) 0447=48" (1219 mm) 0567=60" (1524 mm) 0687=72" (1829 mm) 0807=84" (2134 mm) 0927=96" (2438 mm) 1047=108" (2743 mm)



  Garden Tool Hook (Single)

  • Wide Span accessory can be used with Omega

  Part Number: WSSHD-24

  • WSSHD......Garden Tool Hook (Single)
  • 24......24" (610 mm)



  Garden Tool Hook (Double)

  • Wide Span accessory can be used with Omega

  Part Number: WSGTDH-24

  • WSGT......Garden Tool
  • DH......Double Hook
  • 24......24" (610 mm)



  Omega Light Mounting Kit

  • Attaches light can to Omega Box Beam

  Part Number: OLMK-2

  • OLMK-2......Omega Light Mounting Kit



  Sign Holder

  • 7" x 11" (178 mm x 279 mm) sign holder
  • Accepts standard cardstock
  • Stem-mounting bracket fits over beam step and may be secured to beam
  • Standard finishes: Sahara or Blue Gray

  Part Number: SHBBM-(NL)

  • SHBBM......Sign Holder With Box Beam Mount
  • NL......Nominal Stem Length 3", 6", or 12" (76 mm, 152 mm, or 305 mm)



  Omega Wall Frame

  • For use against a wall or back-to-back with another Frame (must use Omega Back to Back Connector OBBC)
  • Offset to the back to gain merchandise space
  • The shelf size formula applies when the frame upright is mounted in the rear position
  • The adjustment channel is punched on 2" (51 mm) centers
  • The smallest upper shelf size on all frames is 8" (203 mm)

  Part Number: OWF(NH)(ND)

  • O......Omega 2" OC (51 mm)
  • WF......Wall Frame
  • NH......Nominal Frame Height 96", 120", 144" (2438 mm, 3048 mm, 3658 mm)
  • ND......Nominal Frame Depth 24" to 42" in 2" increments (610 mm to 1067 mm in 51 mm increments)
