Roll Goods Rack

Roll Goods Rack

Contact Us Today

  • Roll Goods Rack

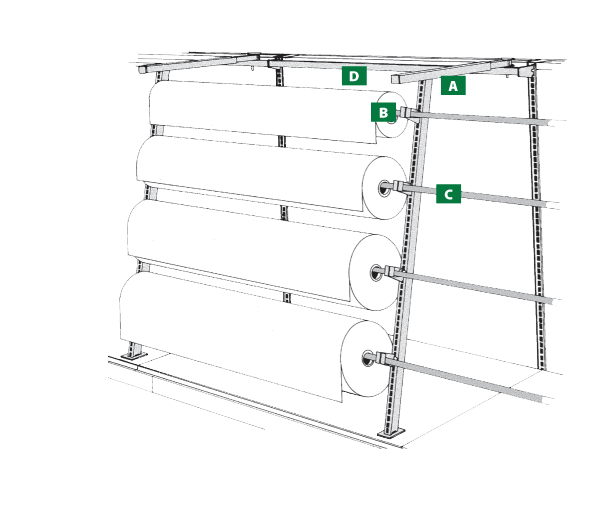

    Specially designed to accommodate longer roll goods such as polyethylene, vinyl and shading films, lightweight laminates, screening and fencing. Not recommended for spool goods since common spindle hole diameter is 3/4" (19 mm).

    If load is resting on two Base Shelves, divide load by 2

  • Frame Loading

    Base Shelf Recommendations
    Load Weight (lbs) Base Shelf Part Number
    < 200 Standard Base Shelf SBS-(NW)(ND)
    200 - 400 Reinforced Base Shelf SBSR-(NW)(ND)
    400 - 600 Reinforced Base Shelf plus Base Load Leveler SBSR(NW)(ND)BLLL-(ND)

  • Arms of Roll Goods Upright should not project beyond Base Shelf:

  • Components for Roll Goods Rack

    Reveal/Hide Components

     Roll Goods Bracket

    • Unique bracket features lift out cup on both sides, accepts all tubing/pipe diameters up to 1 1/4" (32 mm)
    • Use as a center or end piece on a continuous tubing run

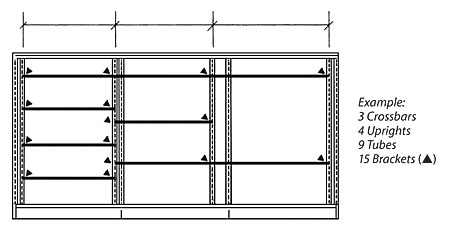

    • Due to varying roll diameters, tubing may be staggered and any end without tubing will require a bracket
    Part Number: RGB-1
    • RGB...... Roll Goods Bracket
    • 1......1 Pack
    RGB-1-Roll Goods Bracket

     Roll Goods Tube

    • Sturdy 1" (25 mm) diameter tubing, ¾ " (19 mm) galvanized pipe
    • 5' (1524 mm) tube should be field-cut at end of roll goods run to avoid interference with following shelving section
    • Load capacity: NL 36" or 48"=200 lbs; NL 60"=150
    Part Number: RGT-(NW)
    • RGT...... Roll Goods Tube
    • NW......Nominal Width 36", 48", or 60" (914 mm, 1219 mm, or 1524 mm)
    No Image Available
    Brackets lap ½" (13 mm) onto each end of tube. Order longer tube if actual roll goods length is 36" or 48" (914 mm or 1219 mm). 36" (914 mm) tube: 35" (889 mm) usable length, 48" (1219 mm) tube: 47" (1194 mm) usable length.

     Roll Goods Upright

    • High tensile steel upright slotted 1" (25 mm) OC for vertical adjustment of roll goods
    • Upright is welded to adjustable horizontal telescoping bar that locks to Base Shelves 18" to 30" (457 mm to 762 mm)
    Part Number: RGU-(NH)
    • RGU...... Roll Goods Upright
    • NH......Nominal Height 54" to 72" in 6" increments (1372 mm to 1829 mm in 152 mm increments)
    RGU-(NH)-Roll Goods Upright

     Vertical Divider Bar

    • 1" (25 mm) square tubing has 3/8" (10 mm) diameter holes 1" (25 mm) OC to accept roll goods upright
    • Includes heavy-duty bracket to attach to basic fixture upright
    • One crossbar required per section
    Part Number: VDB-(NW)02
    • VDB...... Vertical Divider Bar
    • NW......Nominal Width 3' or 4' (914 mm or 1219 mm)
    • 02......2" (51 mm) Standoff
    VDB-(NW)02-Vertical Divider Bar
