Curved Maxi Line | Spacer System for Curved Gondola

  • Curved Maxi Line

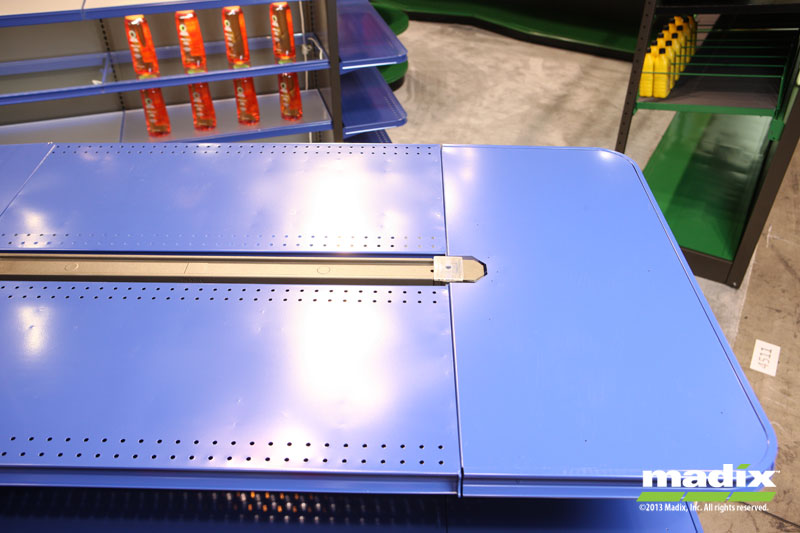

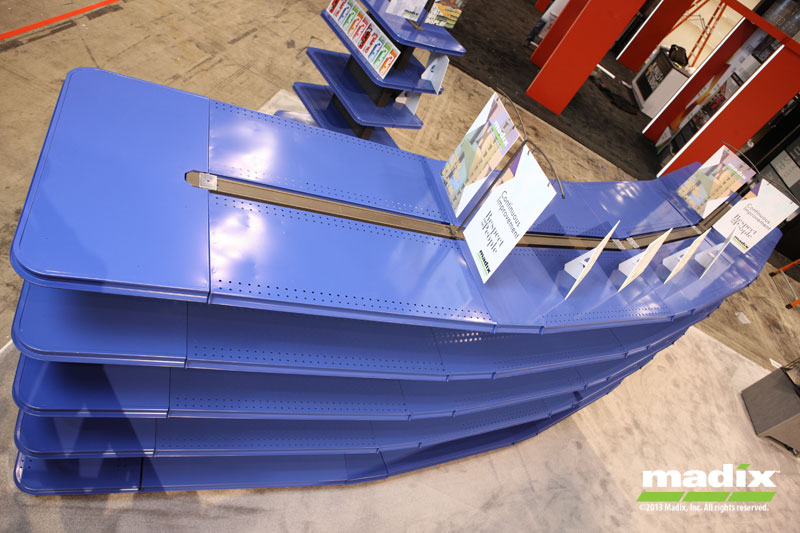

    Spacer System for Curved Gondola

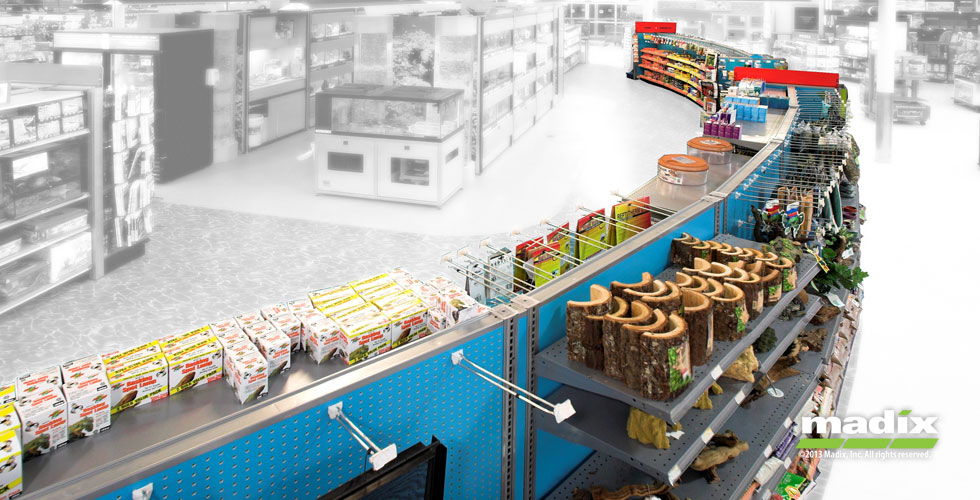

    Utilize the Spacer System to create a unique curved gondola to offset straight rows within the store.

    • Curves are easy to obtain by adding Spacer System components

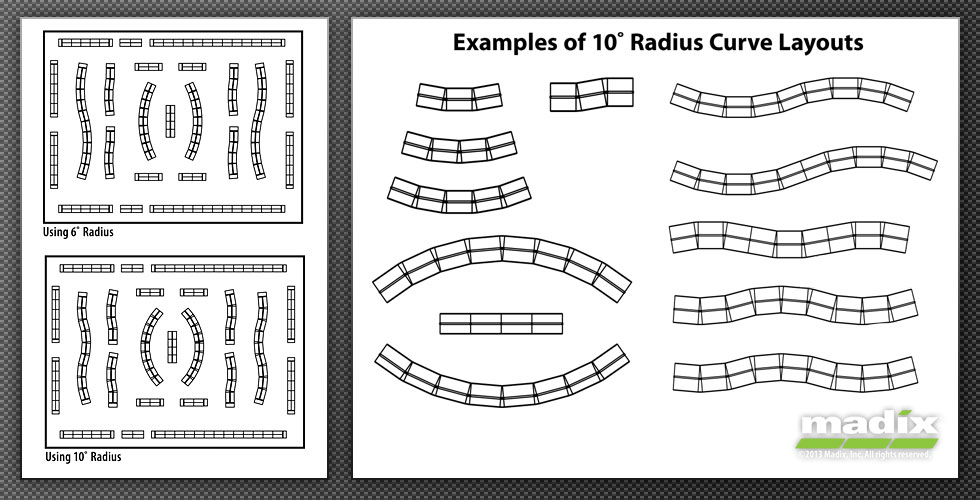

    • Customers can choose a 6Ëš or a 10Ëš radius curve when connecting two gondolas together using the Spacer System

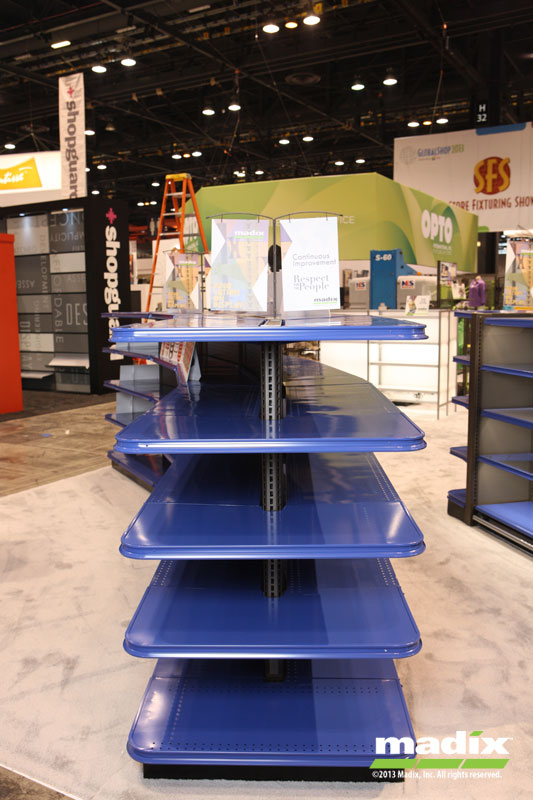

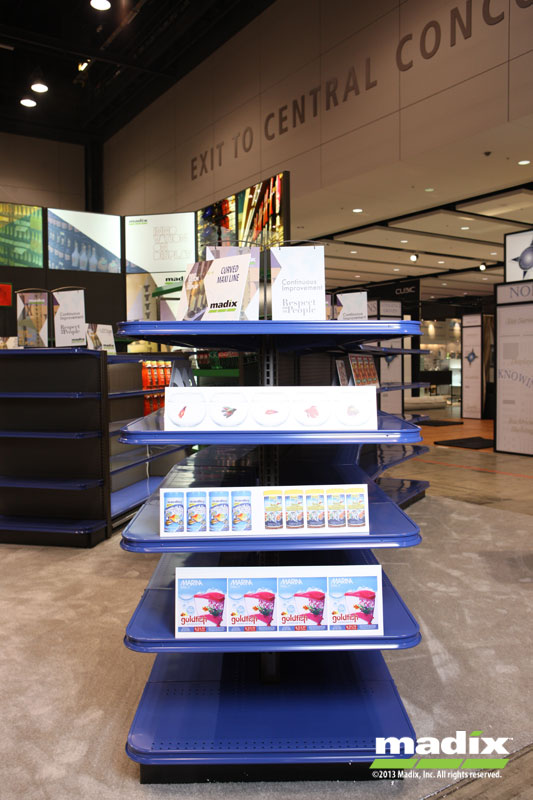

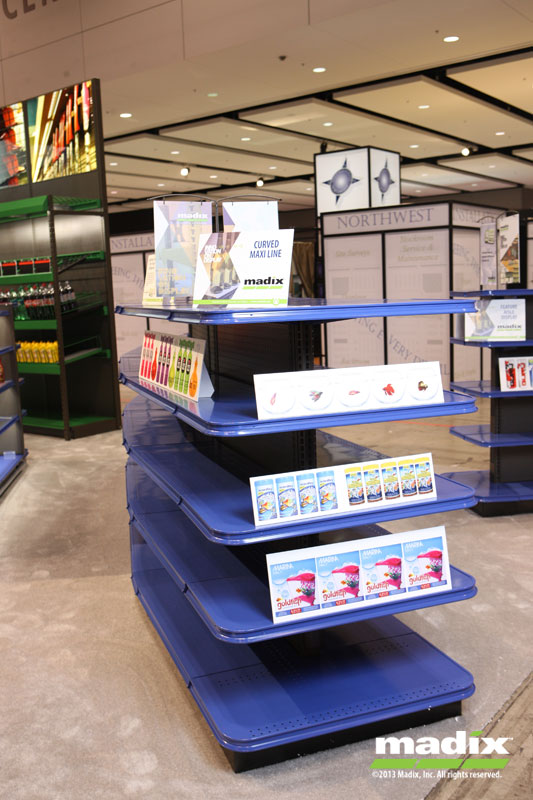

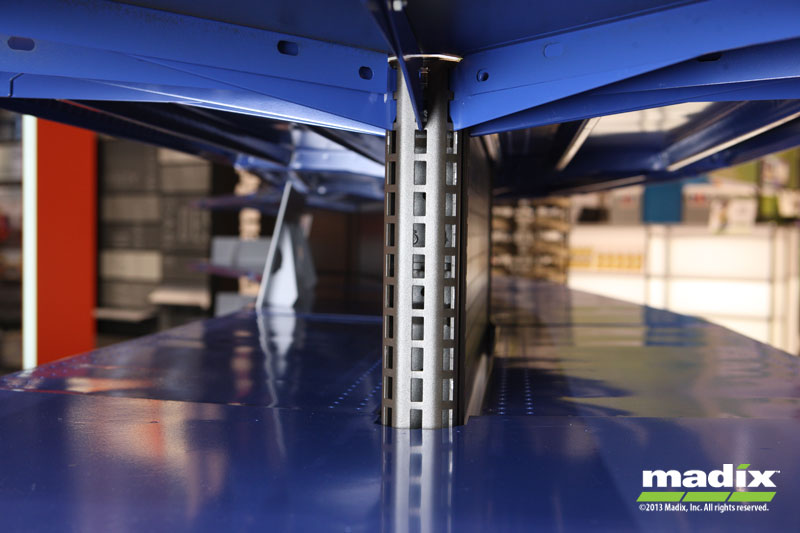

  • Gallery

  • C

  • Components for Curved Maxi Line

    Reveal/Hide Components

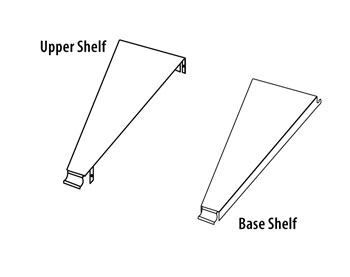

     Spacer System Inside Radius Upper & Base Shelves

      Part Number: SSIR(TYPE)(ND)-(DEGREE)
      • SSIR......Spacer System Inside Radius
      • TYPE......Type: US=Upper Shelf, BS=Base Shelf
      • ND......Nominal Depth 10° Radius: 8" to 24" in 2" increments (203 mm to 610 mm in 51 mm increments) 6° Radius: 8" to 18" in 2" increments (203 mm to 457 mm in 51 mm increments)
      • DEGREE......10=10° Radius, 06=6° Radius
      SSIR(TYPE)(ND)-(DEGREE)-Spacer System Inside Radius Upper & Base Shelves

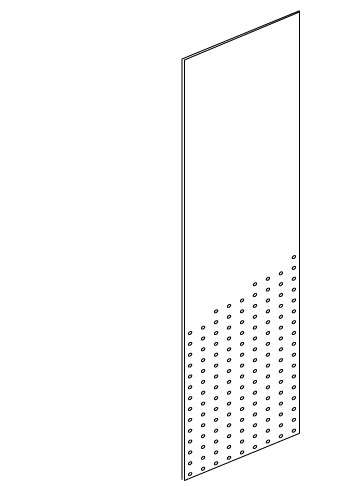

       Spacer System Inside/Outside Radius Back Panel

        Part Number: SS(TYPE)RB(TYPE)(NH)-(DEGREE)
        • SS......Spacer System
        • TYPE......I=Inside, O=Outside
        • RB......Radius Back
        • TYPE......H=Hardboard, P=Pegboard
        • NH......Nominal Height 42" to 96" in 6" increments (1067 mm to 2438 mm in 152 mm increments)
        • DEGREE......10=10° Radius, 06=6° Radius
        SS(TYPE)RB(TYPE)(NH)-(DEGREE)-Spacer System Inside/Outside Radius Back Panel

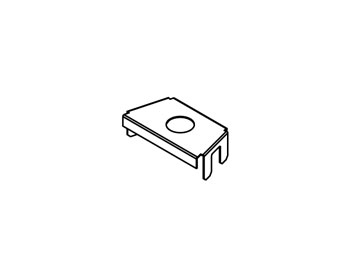

         Spacer System Inside/Outside Radius Center Spanner

          Part Number: SSIOR-C-(DEGREE)
          • SSIOR......Spacer System Inside/Outside Radius
          • C......Center Spanner
          • DEGREE......10=10° Radius, 06=6° Radius
          SSIOR-C-(DEGREE)-Spacer System Inside/Outside Radius Center Spanner

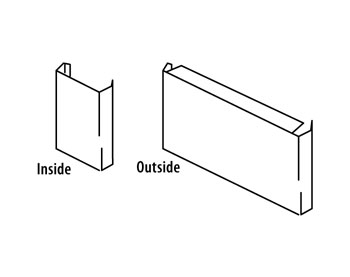

           Spacer System Inside/Outside Radius Kickplate

            Part Number: SS(TYPE)RKP(ND)-(DEGREE)
            • SS......Spacer System
            • TYPE......I=Inside, O=Outside
            • RKP......Radius Kickplate
            • ND......Nominal Depth 10° Radius: 8" to 24" in 2" increments (203 mm to 610 mm in 51 mm increments) 6° Radius: 8" to 18" in 2" increments (203 mm to 457 mm in 51 mm increments)
            • DEGREE......10=10° Radius, 06=6° Radius
            SS(TYPE)RKP(ND)-(DEGREE)-Spacer System Inside/Outside Radius Kickplate

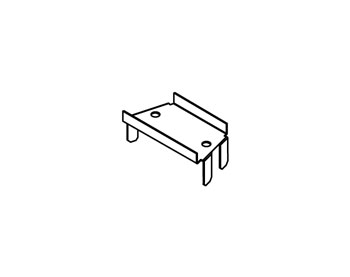

             Spacer System Inside/Outside Radius Lower Spanner

              Part Number: SSIOR-L-(DEGREE)
              • SSIOR......Spacer System Inside/Outside Radius
              • L......Lower Spanner
              • DEGREE......10=10° Radius, 06=6° Radius
              SSIOR-L-(DEGREE)-Spacer System Inside/Outside Radius Lower Spanner

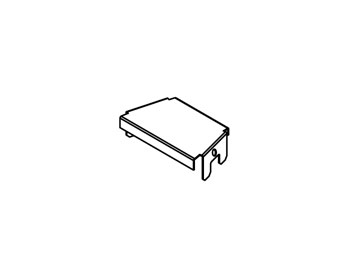

               Spacer System Inside/Outside Radius Top Spanner

                Part Number: SSIOR-T-(DEGREE)
                • SSIOR......Spacer System Inside/Outside Radius
                • T......Top Spanner
                • DEGREE......10=10° Radius, 06=6° Radius
                SSIOR-T-(DEGREE)-Spacer System Inside/Outside Radius Top Spanner

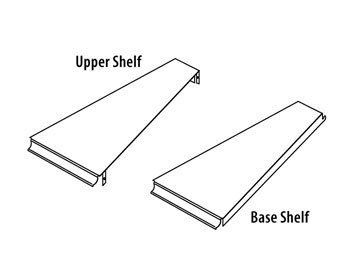

                 Spacer System Outside Radius Upper & Base Shelves

                  Part Number: SSOR(TYPE)(ND)-(DEGREE)
                  • SSOR......Spacer System Outside Radius
                  • TYPE......Type: US=Upper Shelf, BS=Base Shelf
                  • ND......Nominal Depth 8" to 24" in 2" increments (203 mm to 610 mm in 51 mm increments)
                  • DEGREE......10=10° Radius, 06=6° Radius
                  SSOR(TYPE)(ND)-(DEGREE)-Spacer System Outside Radius Upper & Base Shelves
