  • Cantilever Storage System

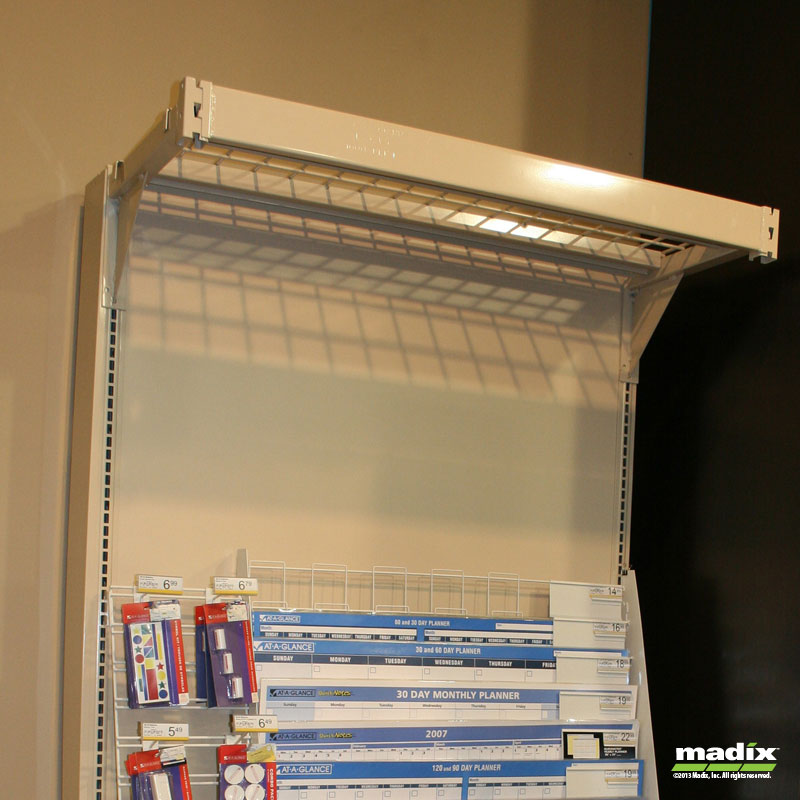

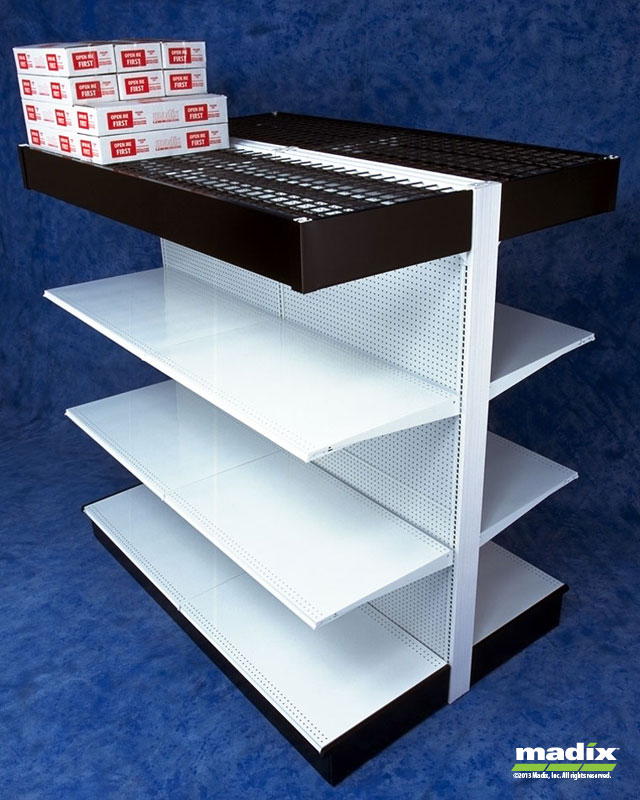

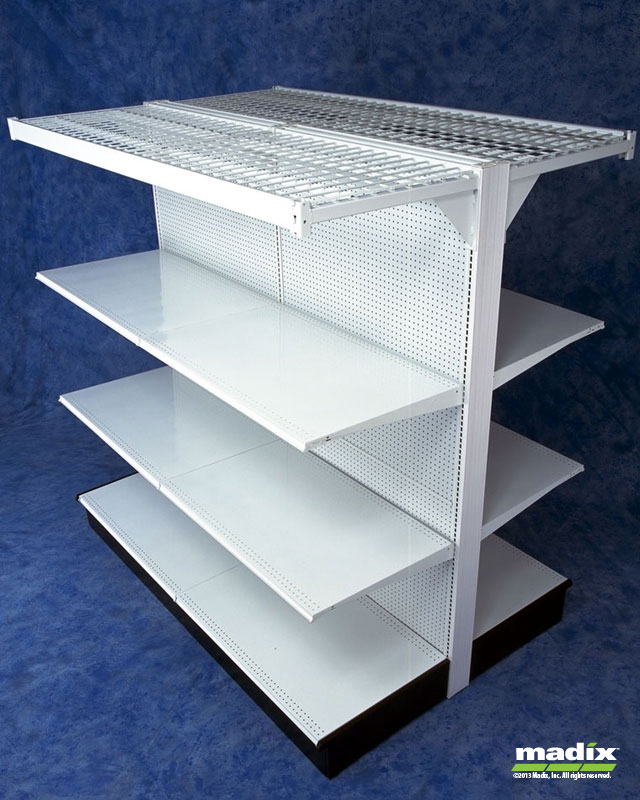

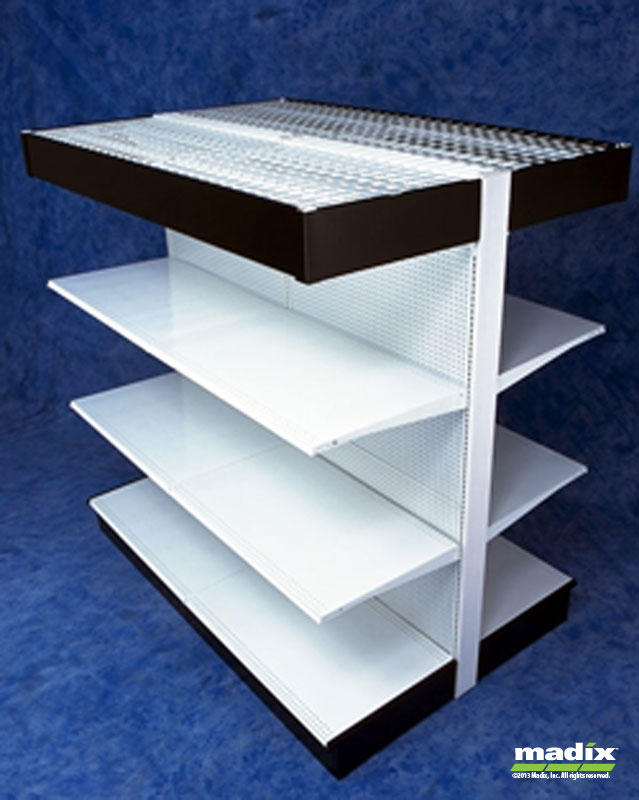

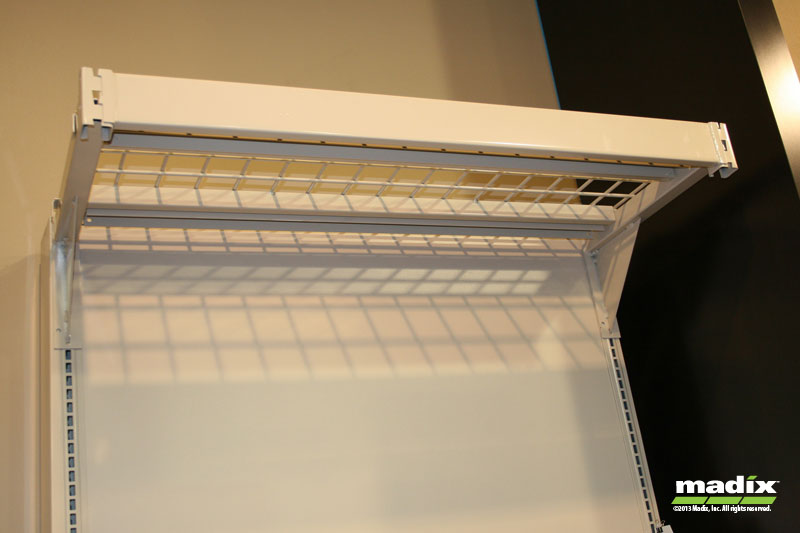

    Madix Cantilever storage system has an advantage over other overhead storage systems, discarding the vertical supporting members for the beams. This concept allows better customer visibility and access to product as well as easier floor care. A choice of one or two deck levels are available, with wood or wire grid decks. Light Canopies are an attractive option available for Cantilever Systems. The Light Canopy attaches to the Cantilever Arms.

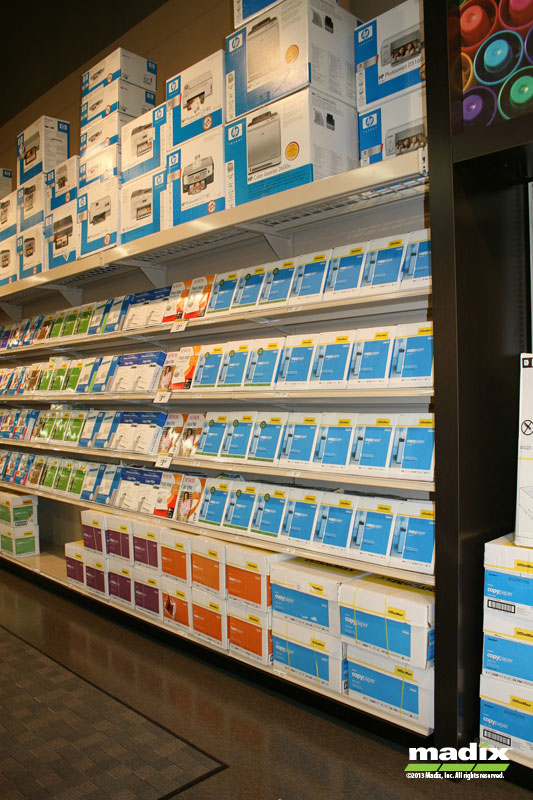

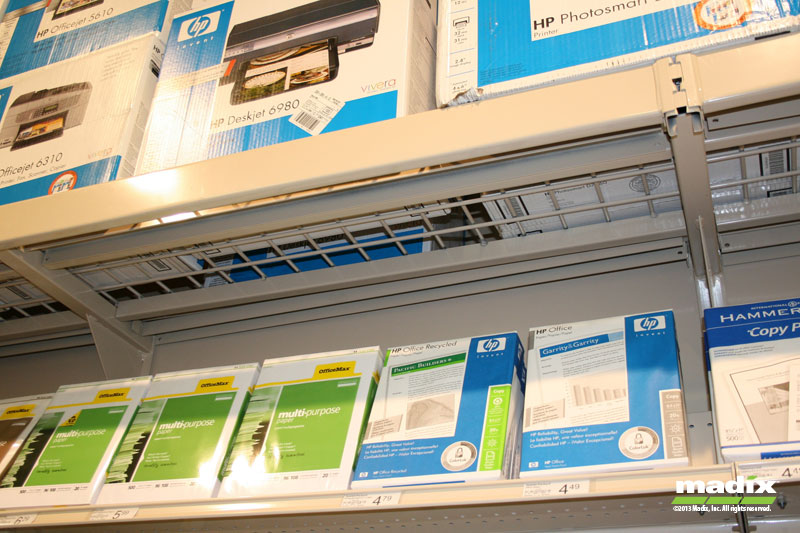

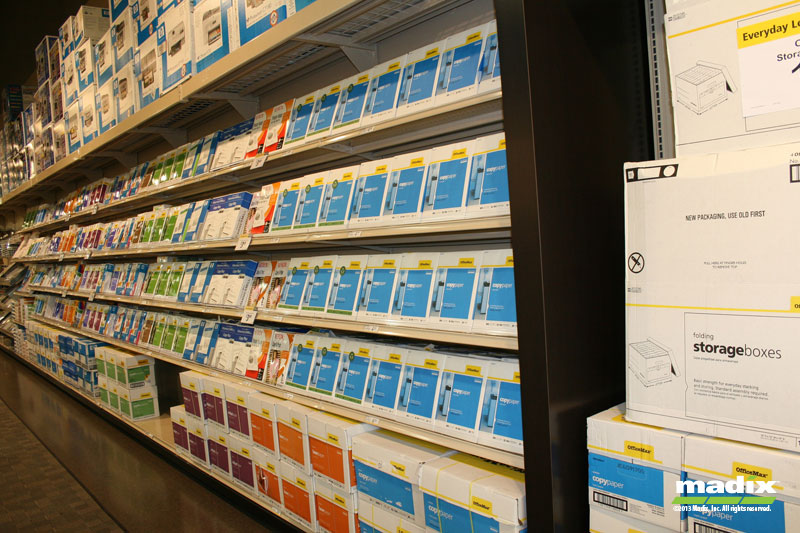

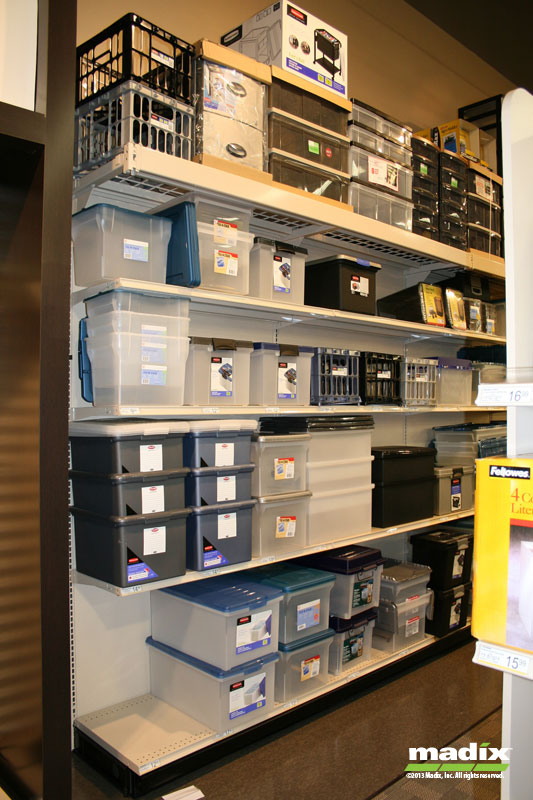

    • Gallery

    • Components for Cantilever Storage System

      Reveal/Hide Components

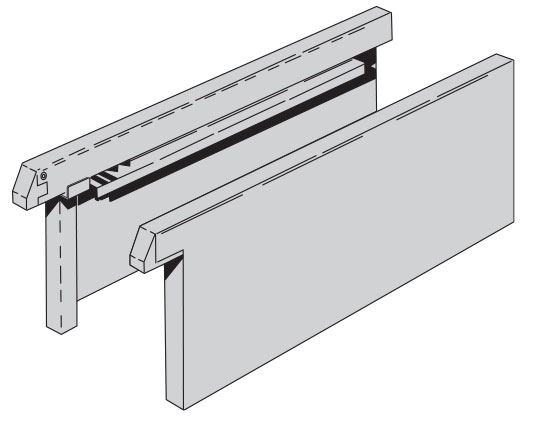

       Back-to-Back Base End Cover

      • Trim Base Ends of Back to Back Cantilever runs
      • Unleveled Base Shelf height of Cantilever runs is 91/2" (242 mm)
      Part Number: BBBEC-(ND)
      • BBBEC......Back-to-Back Base End Cover
      • ND......Nominal Depth 18" to 30" in 2" increments (457 mm to 762 mm in 510 mm increments)
      BBBEC-(ND)-Back-to-Back Base End Cover

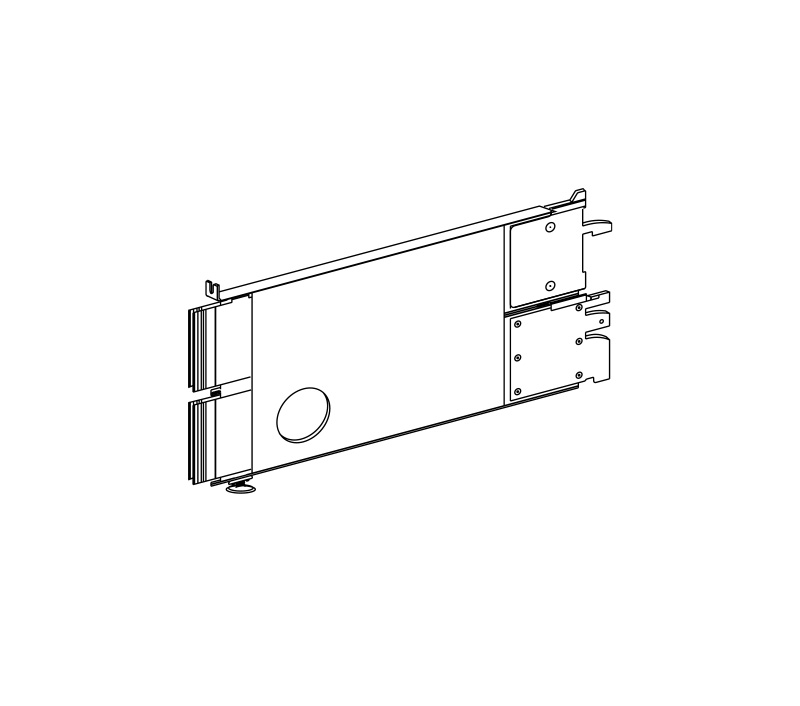

       Back-to-Back Base Shoe

      • Two base shoes welded into stacked configuration to give additional support at lower section of Back to Back Upright
      • All new Back to Back Upright orders will require Modified Back to Back Base Shoe [BBBSM-(ND)]
      Part Number: BBBSM-(ND)
      • BBBSM......Back-to-Back Shoe Modified
      • ND......Nominal Depth 18" to 30" in 2" increments (457 mm to 762 mm in 510 mm increments
      BBBSM-(ND)-Back-to-Back Base Shoe

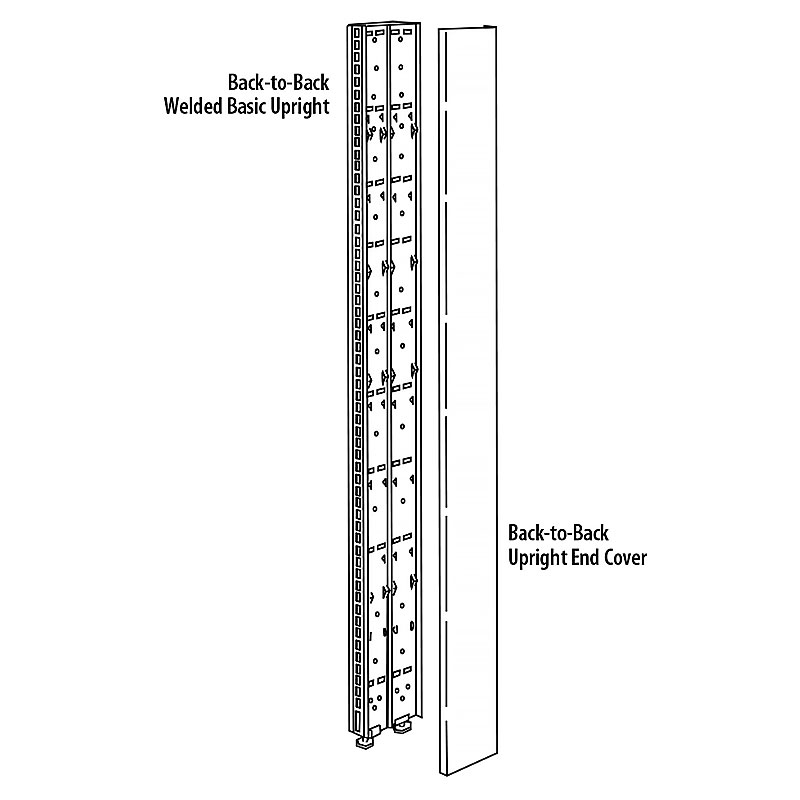

       Back-to-Back Basic Upright

      • Two Standard Basic Uprights welded into single, rigid unit
      • 28,000 inch-pound load rating to support offset loading of Cantilever System
      Part Number: BBWBU-(NH)
      • BBW......Back-to-Back Welded
      • BU......Basic Upright
      • NH......Nominal Height 84" to 120" in 6" increments (2134 mm to 3048 mm in 152 mm increments)
      BBWBU-(NH)-Back-to-Back Basic Upright

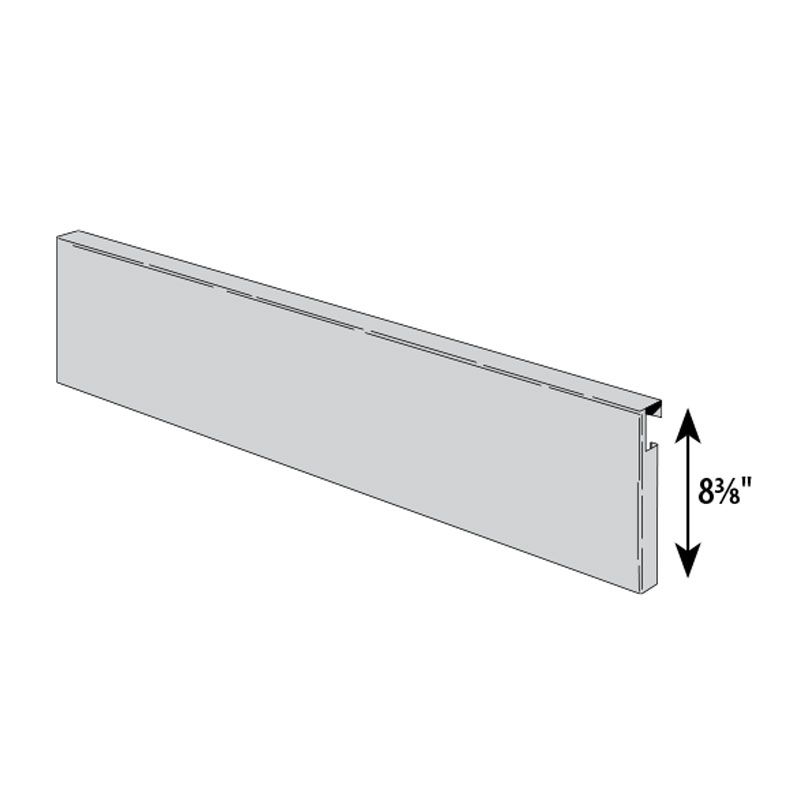

       Back-to-Back Kickplate

      • Standard kickplate in extended height to close off Base Shoes of Back to Back Cantilever runs
      • Full floating feature to fit flush against uneven floors
      Part Number: BBKP-(NW)
      • BBKP......Back-to-Back Kickplate
      • NW......Nominal Width 3'=36" (914 mm) 4'=48" (1219 mm)
      BBKP-(NW)-Back-to-Back Kickplate

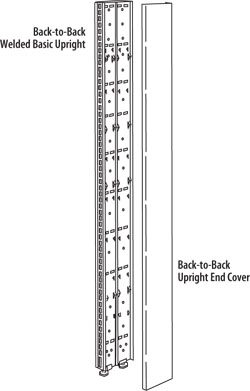

       Back-To-Back Upright End Cover

      • Cover to trim end uprights of Back to Back Cantilever runs
      Part Number: UECBBU-(NH)
      • UEC......Upright End Cover
      • BBU......Back-to-Back Basic Upright
      • NH......Nominal Height 84" to 120" in 6" increments (2134 mm to 3048 mm in 152 mm increments)
      UECBBU-(NH)-Back-To-Back Upright End Cover

       Cantilever Beam Side Cover

      • Sold only in pairs
      • 4 1/2" (115 mm) cover is designed to present a more finished appearance around ends of Cantilever Upper Deck
      • Pre-formed tabs along top accept and support Wood or Wire Grid Decks
      • This cover is used only with Hypermaxi Beams, not the Cantilever Front Canopy
      Part Number: HMRDBSC-(ND)
      • HM......Hypermaxi
      • RD......Regular-Duty
      • BSC......Beam Side Cover
      • ND......Nominal Depth 18" to 30" in 2" increments (457 mm to 762 mm in 510 mm increments)
      HMRDBSC-(ND)-Cantilever Beam Side Cover

       Cantilever Deck

      • Durable 5/8" (16 mm) particle board
      • Two required per 3' or 4' (914 mm or 1219 mm) section and at each level of Back-to- Back shelving
      Part Number: HMCD(ND)(NL)
      • HM......Hypermaxi
      • CD......Cantilever Deck
      • ND......Nominal Depth 18" to 30" in 2" increments (457 mm to 762 mm in 510 mm increments)
      • NL......Nominal Length 36", 48", 72", 84", 96" (914 mm, 1219 mm, 1829 mm, 2134 mm, 2438 mm)
      HMCD(ND)(NL)-Cantilever Deck

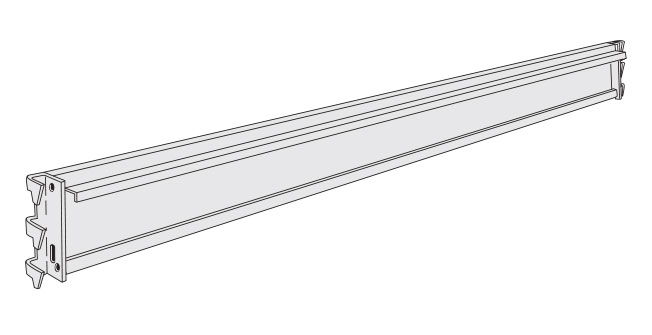

       Cantilever Regular-Duty Beam

      • Standard Hypermaxi Beam carries the load at the front of Wood or Wire Grid Decks, no rear beam is used
      Part Number: HMRDFB(NL)-U
      • HMRDFB....Hypermaxi Beam Regular-Duty
      • (NL)-U......Nominal Length 72", 84", 96" (1829 mm, 2134 mm, 2438 mm)
      HMRDFB(NL)-U-Cantilever Regular-Duty Beam

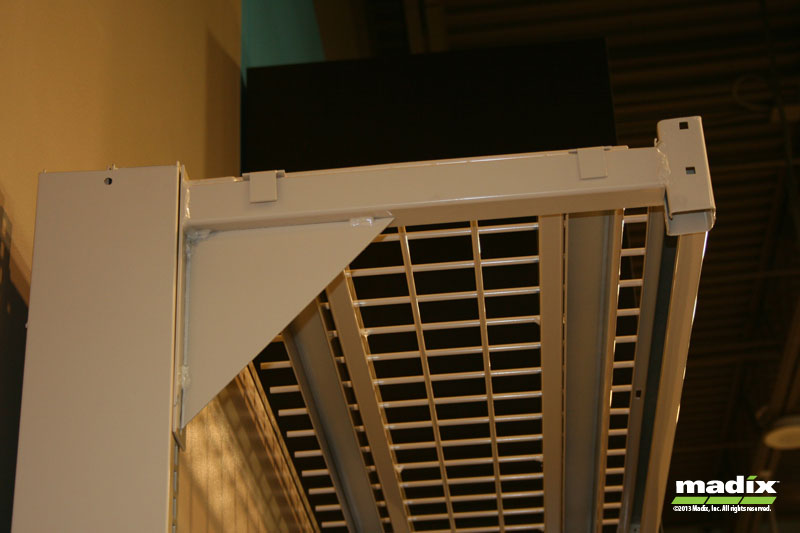

       Cantilever Tubular Arms

      • Available in two styles: 1) HMRDC-used where Hypermaxi beam or cantilever front canopy is hooked (includes a receiver for the beam clips) AND 2) HMRDCNN used in alternating uprights where it only supports the decks and deck supports (does not include a receiver for the beam clips)
      Part Number: HMRD(OPT1)(OPT2)-(ND)
      • HM......Hypermaxi
      • RD......Regular Duty
      • CN......C=Cantilever Tubular Arm with Upright CN=Cantilever Tubular Arm (No Nose=No Upright)
      • N......Blank=Nose N=No Nose
      • ND......Nominal Depth 18" to 30" in 2" increments (457 mm to 762 mm in 510 mm increments)
      HMRD(OPT1)(OPT2)-(ND)-Cantilever Tubular Arms

    • Accessories for Cantilever Storage System

      Reveal/Hide Accessories

      Cantilever Beam Side Cover

      • Sold in pairs only
      • 8 3/4" (222 mm) cover designed to present a more finished appearance around the ends of Cantilever Upper Deck
      • Features tabs that wrap around front of Cantilever Front Canopy
      • Pre-formed tabs along the top accept and support Wood or Wire Grid Decks
      Part Number: HMRDSC-(ND)
      • HM......Hypermaxi
      • RD......Regular-Duty
      • SC......Side Cover
      • ND......Nominal Depth 18" to 30" in 2" increments (457 mm to 762 mm in 51 mm increments)
      HMRDSC-(ND)-Cantilever Beam Side Cover
      HAND STACK ONLY! Powered fork trucks on stackers are not recommended for use on Cantilever Storage System

      Cantilever Front Canopy

      • 8 1/2" (216 mm) high and has beam brackets inset at each end to engage the upright segment of the Cantilever Tubular Arms
      • Canopy will accommodate decks
      • Lights may be mounted on underside of Cantilever Tubular Arms
      Part Number: HMRDFC-(NL)
      • HM......Hypermaxi
      • RD......Regular-Duty
      • FC......Front Canopy
      • NL......Nominal Length 72", 84", 96" (1829 mm, 2134 mm, 2438 mm)
      HMRDFC-(NL)-Cantilever Front Canopy
      HAND STACK ONLY! Powered fork trucks on stackers are not recommended for use on Cantilever Storage System

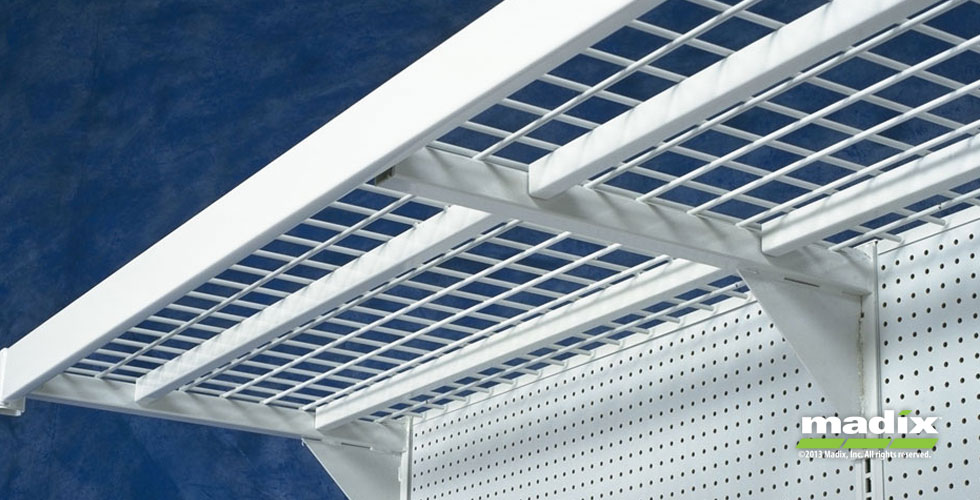

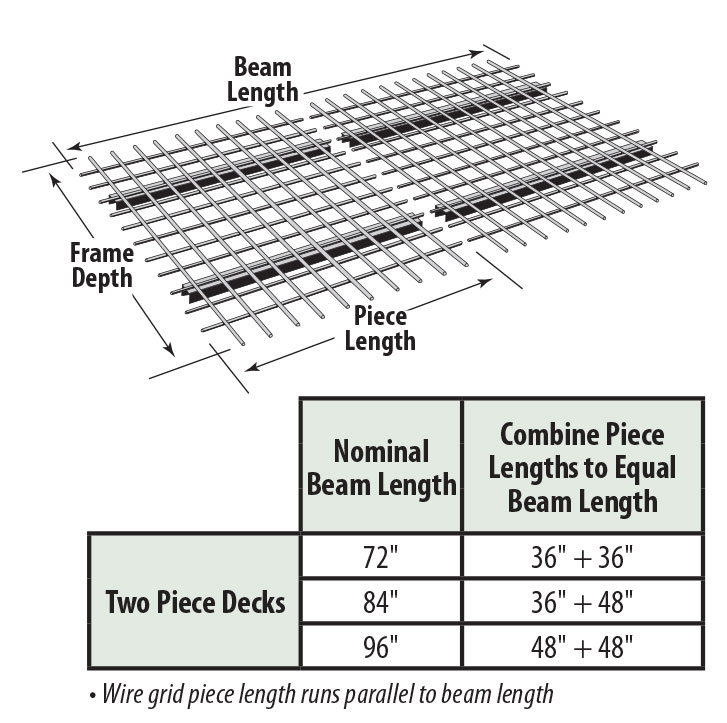

      Cantilever Wire Grid Decks

      • Sturdy approximately 5/16" (8 mm) diameter gauge wire is welded on 3" (76 mm) grid centers to form decking
      • Supports are welded to wire
      • Standard finishes: Silver Vein, Sahara, or Blue Gray
      Part Number: HMCWGS(ND)(NL)
      • HM......Hypermax
      • WMS......Cantilever Wire Grid Deck
      • ND......Nominal Frame Depth 18" to 30" in 2" increments (457 mm to 762 mm in 51 mm increments)
      • NL......Nominal Piece Length 36" or 48" (914 mm, 1219 mm)
      HMCWGS(ND)(NL)-Cantilever Wire Grid Decks
      HAND STACK ONLY! Powered fork trucks on stackers are not recommended for use on Cantilever Storage System

      Standard Base Shelf

      • Formed price tag molding matches molding on upper shelves (see SUS)
      • Heavy-gauge shelf bracket features lock tab to ensure quick installation and precision alignment
      • Load capacity 600 lbs in all sizes, based on evenly distributed static loading
      • For additional load capacity see Base Load Levelers
      • Flush Front option available
      Part Number: SBS-(NW)(ND)
      • SBS......Standard Base Shelf
      • NW......Nominal Width 2' to 4' in 6" increments (610 mm to 1219 mm in 152 mm increments)
      • ND......Nominal Depth 12" to 30" in 2" increments (305 mm to 762 mm in 51 mm increments)
      Options
      • TYPE-OPT TYPE......Blank=Perforated, NP=Non-Perforated OPT......Optional Covering L=Laminate, C=Carpet, F=Fabric
      Finish
      • FIN1......Shelf
      SBS-(NW)(ND)-Standard Base Shelf
      HAND STACK ONLY! Powered fork trucks on stackers are not recommended for use on Cantilever Storage System
