Tubular “H” Display

Tubular “H” Display

Contact Us Today

  • The Tubular “H” Display System is an excellent choice for displaying soft goods. The frames are constructed with square tubular steel. Accessories for wire grid and slatwall-patterned wire grid are sold separately. The wire shelves provide a sturdy platform to stack merchandise. Laminated shelves are also available for merchandising smaller goods or for use as a display platform.

  • Tubular “H” Display
    A Tubular H Display End Panel
    B Tubular H Display Center Panel
    C Tubular H Display Base Shelf
    D Tubular H Display Upper Shelf
    E Tubular H Display End Shelf

  • Components for Tubular “H” Display

    Reveal/Hide Components

     Center Panel

    • Order one center panel per section
    Part Number: THDCP-60(NW)-3
    • THDCP..... Tubular “H” Display Center Panel
    • 60..... Height in 60" Only (152.40 cm)
    • NW..... Nominal Width 36", 48", 60", 72" (914 mm, 1219 mm, 1524 mm, 1829 mm)
    • 3..... Wire Type: 3" x 3' Grid (76 mm x 76 mm)
    THDCP-60(NW)-3-Center Panel

     End Panel

    • Order two end panels per section
    Part Number: THDEP-60(NW)-3
    • THDEP..... Tubular “H” Display End Panel
    • 60..... Height in 60" Only (1524 mm)
    • NW..... Nominal Width 36" or 48" (914 mm or 1219 mm)
    • 3..... Wire Type: 3" x 3" Grid (76 mm x 76 mm)
    THDEP-60(NW)-3-End Panel

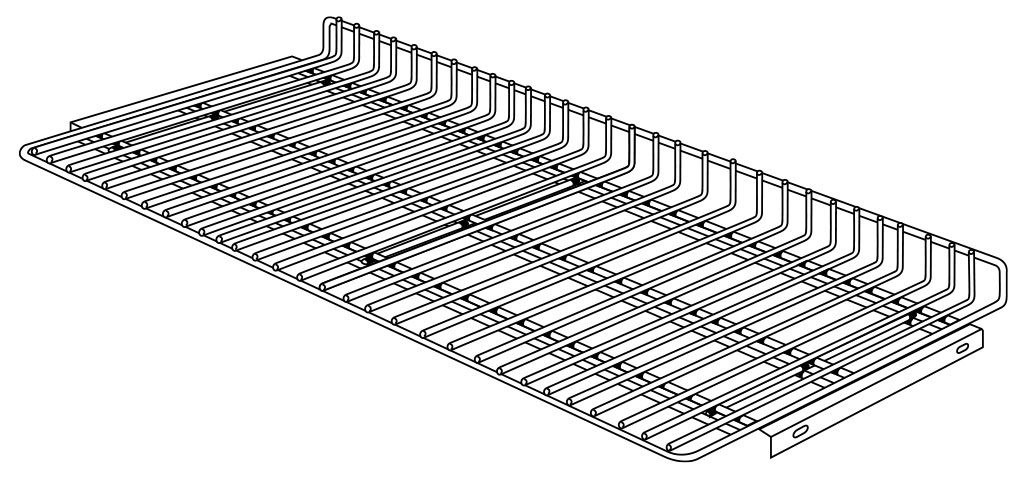

     Tubular "H" Base Shelf

    • For use as a Base Shelf with the Tubular “H” Display Center Panels
    • Shelf is reinforced for heavier loads
    • Shelf is reversible so product retainer lip may face either in the front or back
    • 1 1/2" (31 mm) wire spacing on shelf
    • Load capacity 50 lbs
    Part Number: THDBS-(NW)(ND)
    • THDBS..... Tubular “H” Display Base Shelf
    • NW..... Nominal Width 24", 36", 48", 60", 72" (610 mm, 914 mm, 1219 mm, 1524 mm, 1829 mm)
    • ND..... Nominal Depth 12", 16", 18", 24", 36" (305 mm, 406 mm, 457 mm, 610 mm, 914 mm)
    THDBS-(NW)(ND)-Tubular

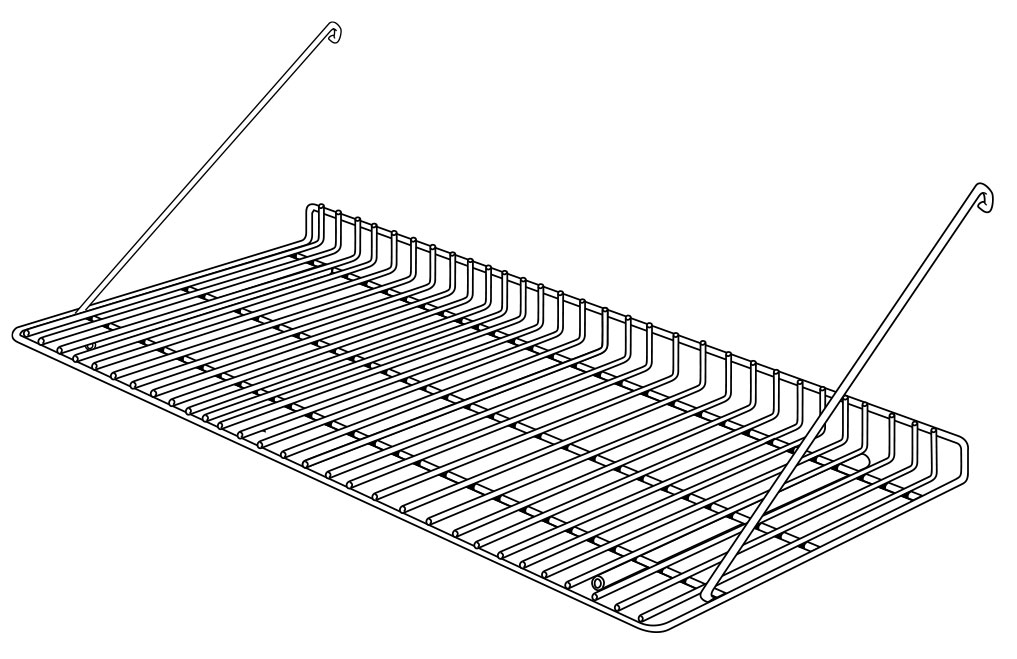

     Tubular "H" End Shelf

    • For use as an End Shelf with the Tubular “H” Display End Panels
    • Shelf is reversible so product retainer lip may face either in the front or back
    • 1 1/2" (31 mm) wire spacing on shelf
    • Load capacity 50 lbs
    Part Number: THDES-(NW)(ND)
    • THDES..... Tubular “H” Display End Shelf
    • NW..... Nominal Width 18", 24", 30", 36" (457 mm, 610 mm, 762 mm, 914 mm)
    • ND..... Nominal Depth 12", 16", 18", 24" (305 mm, 406 mm, 457 mm, 610 mm)
    THDES-(NW)(ND)-Tubular

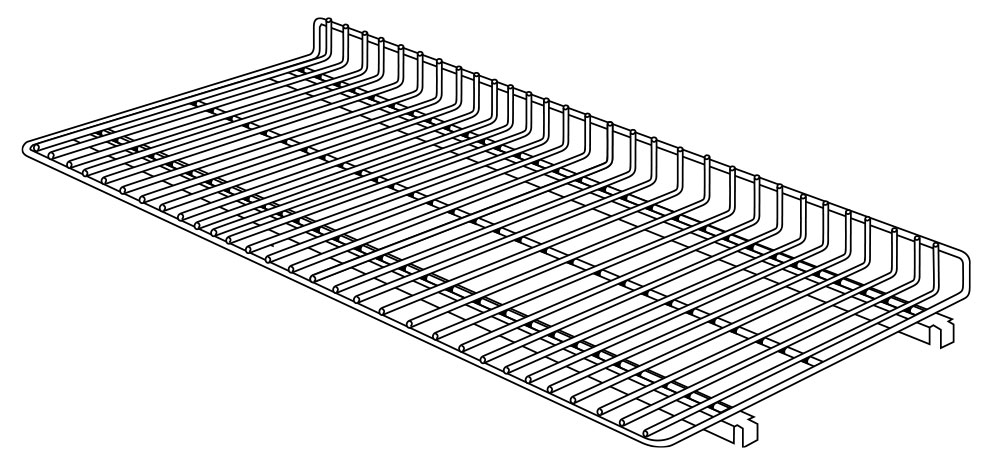

     Tubular "H" Upper Shelf

    • For use as an upper shelf with tubular “H” display center panels
    • Shelf is reversible so product retainer lip may face either in the front or back
    • 1 1/2" (31 mm) wire spacing on shelf
    • Load capacity 50 lbs
    Part Number: THDUS-(NW)(ND)
    • THDUS..... Tubular “H” Display Upper Shelf
    • NW..... Nominal Width 24", 36", 48", 60", 72" (610 mm, 914 mm, 1219 mm, 1524 mm, 1829 mm)
    • ND..... Nominal Depth 12", 16", 18", 24", 36" (305 mm, 406 mm, 457 mm, 610 mm, 914 mm)
    THDUS-(NW)(ND)-Tubular
