Modular Table Merchandiser

- Fixture can be used as table or 6" platform (152 mm)
- Table heights are 30" or 42" high (762 mm or 1067 mm)
- Converts from platform to table and table to Platform easily and with few parts
- Parts are ordered separately
- Use different height tables to create interesting tiered displays

Components for Modular Table Merchandiser
Reveal/Hide Components

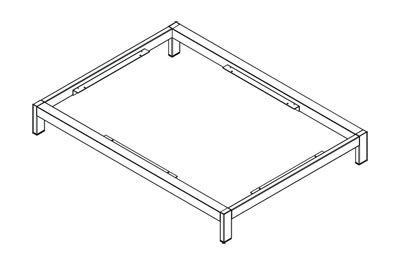

Modular Table Merchandiser Base
6" (152 mm) platform base
Part Number: MTMB-(NW)(ND)
MT..... Modular Table
MB..... Merchandiser Base
NW..... Nominal Width 36" or 48" (914 mm or 1219 mm)
ND..... Nominal Depth 24", 36", or 48" (610 mm, 914 mm, or 1219 mm)

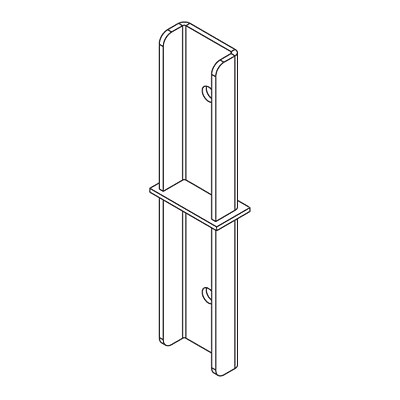

Modular Table Merchandiser Connector
Four required per table
Part Number: MTMC
MT..... Modular Table
MC..... Merchandiser Connector

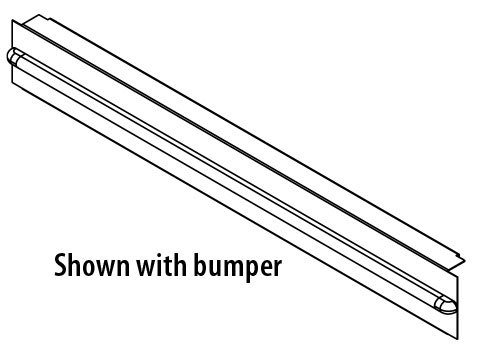

Modular Table Merchandiser Kickplate, Front
One required per exposed front
Comes with bumper
Part Number: MTMKPF-(NW)
MT..... Modular Table
MKPF..... Merchandiser Kickplate Front
NW..... Nominal Width 36" or 48" (914 mm or 1219 mm)
Finish
FIN1..... Metal FIN2..... Bumper Color

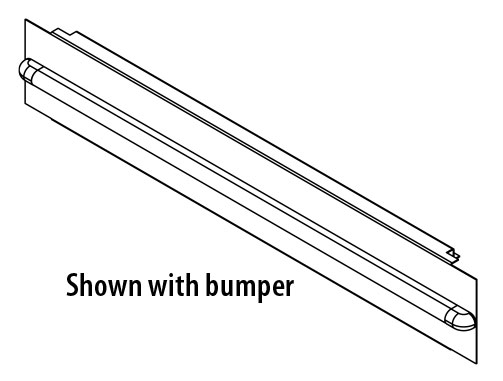

Modular Table Merchandiser Kickplate, Side
Two required per table
With or without bumper
Part Number: MTMKPS-(ND)(OPT)
MT..... Modular Table
MKPF..... Merchandiser Kickplate Side
ND..... Nominal Depth 24", 36", or 48" (610 mm, 914 mm, or 1219 mm)
OPT..... BMPR=with bumper Blank=no bumper

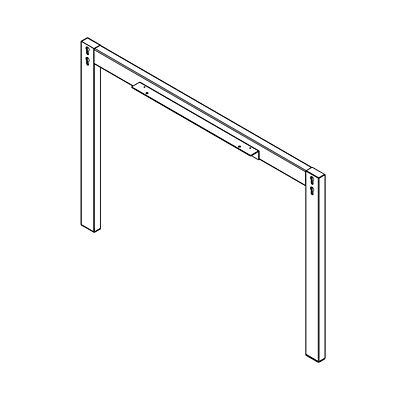

Modular Table Merchandiser Legs
Two required per table
Part Number: MTML-(ND)(NH)
MT..... Modular Table
ML..... Merchandiser Legs
ND..... Nominal Depth 24", 36", or 48" (610 mm, 914 mm, or 1219 mm)
NH..... Nominal Height 24" or 36" (610 mm or 914 mm)

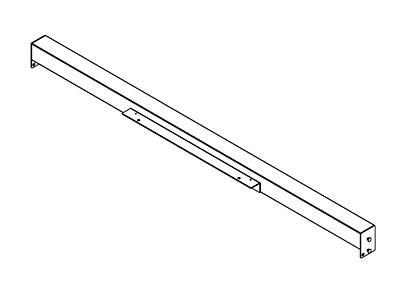

Modular Table Merchandiser Tie Bar
Two required per table
Part Number: MTMTB-(NW)
MT..... Modular Table
MTB..... Merchandiser Tie Bar
NW..... Nominal Width 36" or 48" (914 mm or 1219 mm)

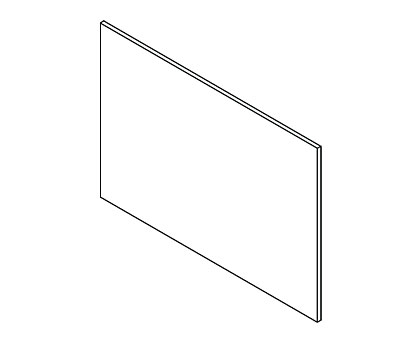

Modular Table Merchandiser Top
One per table, one per base
Part Number: MTMTOP-(NW)(ND)
MT..... Modular Table
MTOP..... Merchandiser Top
NW..... Nominal Width 36" or 48" (914 mm or 1219 mm)
ND..... Nominal Depth 24", 36", or 48" (610 mm, 914 mm, or 1219 mm)
Finish
FIN1..... Front FIN2..... Back FIN3..... Edge
