Wide Span Tire Display

• Heavy gauge 1¾" square upright members with welded cross braces are slotted 2" OC for adjustability
• Top beam fits flush to top of frame
• Requires minimum of two levels, four beams, per section
• Heavy gauge beam body with integral connectors fits snugly into upright slots and maintains deck alignment with base fixture slotting
• One beam pair is required per level

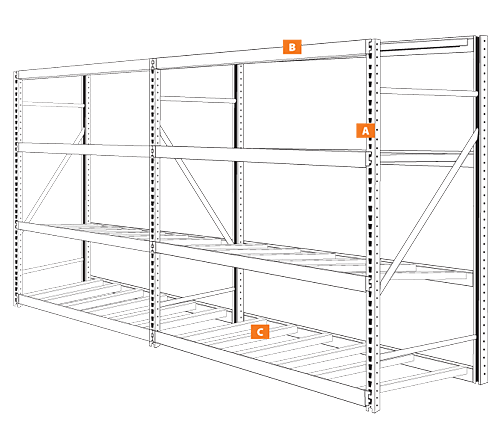

• Image shows two (B) Adjustable Tire Beams and six (C) deck supports per level
• Regular-Duty Wide Span Frame, Adjustable Tire Beam, and Deck Support are used to complete this Tire Display
• Beams have slots every 3" to adjust for different tire sizes Order depth for Deck Supports is +2" Example: Nominal depth of unit is 36, order RDWSDS38 Standard finishes: Sahara or Blue Gray

Wide Span Tire Display
Part Description		Part Number	QTY
A	Regular-Duty Wide Span Frame	RDWSF(ND)(NH)	As Required
B	Adjustable Tire Beam	Q10871-(NH)(NW)-1	As Required
C	Wide Span Deck Supports	(TYPE)WSDS(ND)	As Required
