Storage Shelving Components and Accessories

Components
& Accessories

Storage Shelving

Contact Us Today

Components & Accessories

Information

Information
Section Depth Parts Required to install sections with top, middle and bottom decks Starter Section Add-on Section Extra Decks each
12" End Uprights 4 0 0
Center Uprights 0 2 0
18" Depth Retainers 6 3 0
Width Retainers 6 6 2
24" Load Supports* 3 3 1
Decks 3 3 1
30" End Uprights 4 0 0
Center Uprights 0 2 0
Depth Retainers 6 6 2
Width Retainers 6 6 2
Load Supports* 3 3 1
Decks 3 3 1

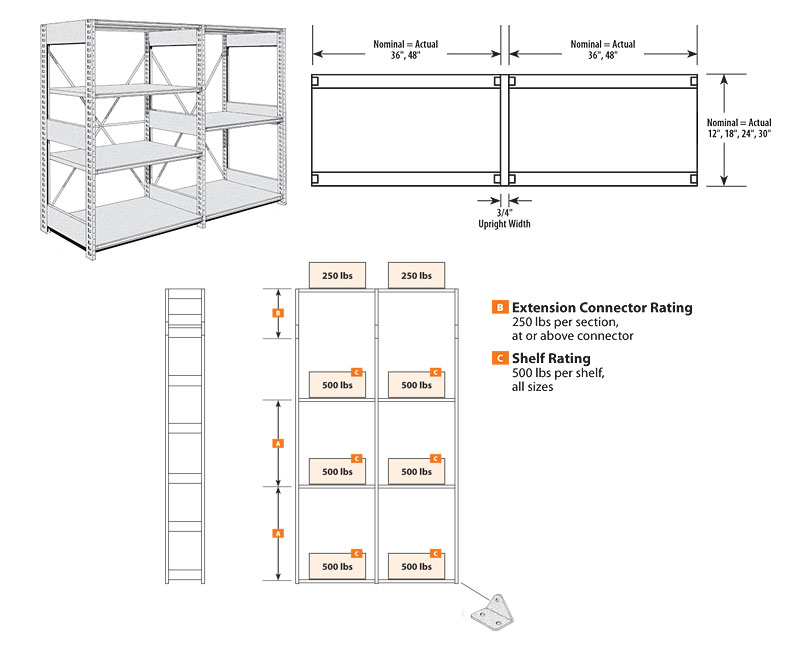

*Shelf loading capacity is 500 lbs with load supports, 400 lbs without load supports

Components

Accessories

Storage Shelving Extended Information

Information
Section Depth Parts Required to install sections with top, middle and bottom decks Starter Section Add-on Section Extra Decks each
12" End Uprights 4 0 0
Center Uprights 0 2 0
18" Depth Retainers 6 3 0
Width Retainers 6 6 2
24" Load Supports* * * *
Decks 3 3 1
30" End Uprights 4 0 0
Center Uprights 0 2 0
Depth Retainers 6 6 2
Width Retainers 6 6 2
Load Supports* * * *
Decks 3 3 1

*For Load Support requirements see Storage Shelving Retainer (SSREL)

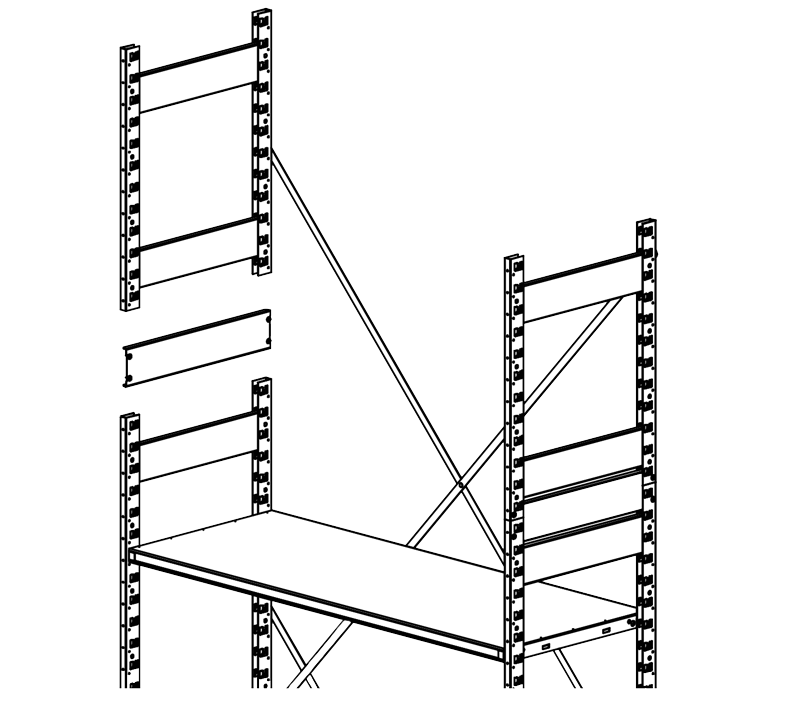

Storage Shelving Extended Components

Steel Storage Information

Information
Section Depth Parts Required to install sections with top, middle and bottom decks Starter Section Add-on Section Extra Decks each
12" End Uprights 4 0 0
Center Uprights 0 2 0
18" Depth Retainers 6 3 0
Width Retainers 6 6 2
24" Load Supports* * * *
Decks 3 3 1
30" End Uprights 4 0 0
Center Uprights 0 2 0
Depth Retainers 6 6 2
Width Retainers 6 6 2
Load Supports* * * *
Decks 3 3 1

*For Load Support requirements see Storage Shelving Retainer (SSREL)
