Pallet Rack Roll Goods Display

Pallet Rack Roll Goods Display

Contact Us Today

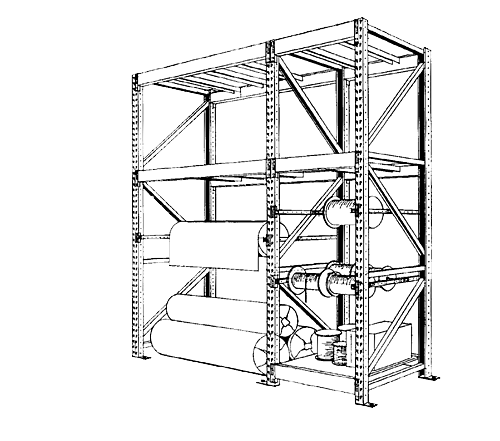

  • Pallet Rack Roll Goods Display

    Rigid, super strong display for large rolls or spools of rope, chain, wire or screening. May be used with or without decks as shown for reserve stock.

    • Components for Pallet Rack Roll Goods Display

      Reveal/Hide Components

       Pallet Rack Center Support Arm

      • Telescoping feature shown, allows crossbar to slip easily into upright slots on both sides of frame
      • Dart clips lock crossbar in place
      • Provides cross frame support for roll goods tube and tube holder
      Part Number: PRCSA-(NW)
      • PRCSA...... Pallet Rack Center Support Arm
      • NW...... Nominal Width 24", 30", 36", 42", 48" (610 mm, 762 mm, 914 mm, 1067 mm, 1219 mm)
      PRCSA-(NW)-Pallet Rack Center Support Arm

       Pallet Rack Heavy-Duty Cantilever End Shelf Deck

      • For use with Pallet Rack Heavy-Duty Cantitlever End Shelf Frame, ordered same size
      Part Number: PR2HDFCESD(NW)(ND)(OPT)
      • PR2...... Pallet Rack 2" (51 mm) OC
      • HD......Heavy-duty
      • FCESD...... Frame Cantileer End Shelf Deck
      • NW...... Nominal Width 24" (610 mm)
      • ND...... Nominal Depth 16" (406 mm)
      • OPT...... S=Sealed U=Unsealed
      PR2HDFCESD(NW)(ND)(OPT)-Pallet Rack Heavy-Duty Cantilever End Shelf Deck

       Pallet Rack Heavy-Duty Cantilever End Shelf Frame

      • Allows display of product on end of pallet rack runs
      • Can be mounted to pallet rack to display above pallets of boxed product
      • Requires Pallet Rack Heavy-Duty Cantitlever End Shelf Deck, ordered same size as End Shelf Frame
      Part Number: PR2HDFCESFA(NW)(ND)
      • PR2...... Pallet Rack 2" (51 mm) OC
      • HD......Heavy-duty
      • FCESFA...... Frame Cantileer End Shelf Frame
      • NW...... Nominal Width 24" (610 mm)
      • ND...... Nominal Depth 16" (406 mm)
      PR2HDFCESFA(NW)(ND)-Pallet Rack Heavy-Duty Cantilever End Shelf Frame

       Pallet Rack Roll Goods Tube

      • 1" (25 mm) OD galvanized tubing
      • Longer tube lengths are not recoommended for numerous heavy spools, rolls of chain, or large rolls of flooring
      • Check spindle hole diameter on spools prior to ordering
      Part Number: PRRGT-(NW)
      • PRRGT...... Pallet Rack Roll Goods Tube
      • NW...... Nominal Width 24", 30", 36", 42", 48" (610 mm, 762 mm, 914 mm, 1067 mm, 1219 mm)
      PRRGT-(NW)-Pallet Rack Roll Goods Tube

       Pallet Rack Roll Goods Tube Holder

      • For mass display of roll goods
      • Accommodates all roll good tubes
      • Fits over and bolts to center support arms
      Part Number: HMRGTH
      • HMRGTH......Pallet Rack Roll Goods Tube Holder
      HMRGTH-Pallet Rack Roll Goods Tube Holder
