Thin Profile ShelvesMaximize Crucial Space

  • Thin Profile Shelves

    Maximize Crucial Space

    Madix's Thin-Profile Shelves help maximize crucial space allowing retailers to optimize shelf capacity and display more product. The Light Duty version of the shelves are the thinnest profile shelf that Madix manufactures. It features angled tag molding for attractive pricing display and has a load rating of 90lbs. The Regular Duty version has a load rating of 200lbs and requires pushers for optional merchandise display. Both versions will increase shelf volume within a fixture run, create an attractive display and maximize product placement.

    • Load Ratings of 90lbs (Light Duty) and 200lbs (Regular Duty)
    • Thin-Profile for Utilizing Space Effectively Within a Fixture Run
    • Angled Tag Molding (Light Duty) and Flush Tag Molding (Regular Duty)

  • Gallery

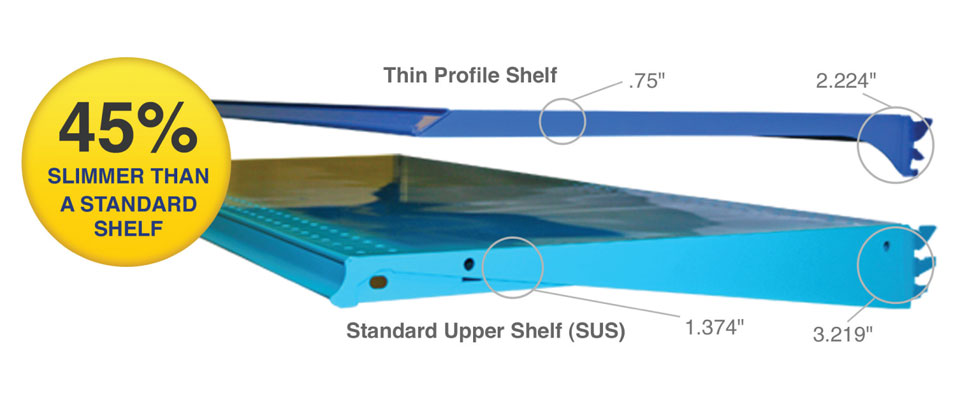

Thin Profile Shelves are 45% slimmer than standard SUS shelves

  • Components for Thin Profile Shelves

    Reveal/Hide Components

     Thin Profile Shelf, Light-Duty

    • Madix’s thinnest profile shelf
    • Slimness of shelf allows additional row of shelves
    • Angled tag molding creates attractive pricing display
    • No pushers required to display merchandise
    • Ideal for tightly-spaced and lightweight merchandise
    • Load capacity is 90 lbs
    Part Number: PLSTTSLD(NW)(ND)
    • PLSTTS......Thin Profile Shelf
    • LD...... Light-Duty
    • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
    • ND......Nominal Depth 10" to 20" in 2" increments (254 mm to 610 mm in 51 mm increments)
    PLSTTSLD(NW)(ND)-Thin Profile Shelf, Light-Duty

     Thin Profile Shelf, Regular-Duty

    • Add merchandising space to every section
    • Slimness of shelf allows additional row of shelves
    • Excellent for displaying small merchandise
    • Pushers required for optional merchandise display
    • Ideal for tightly-spaced and lightweight merchandise
    Part Number: PLSTTS(NW)(ND)
    • PLSTTS......Thin Profile Shelf, Regular-Duty
    • NW......Nominal Width 36" or 48" (914 mm or 1219 mm)
    • ND......Nominal Depth 10" to 20" in 2" increments (254 mm to 610 mm in 51 mm increments)
    PLSTTS(NW)(ND)-Thin Profile Shelf, Regular-Duty
