Feature Aisle DisplayFreestanding Modern Fixture
  • Freestanding Modern Fixture

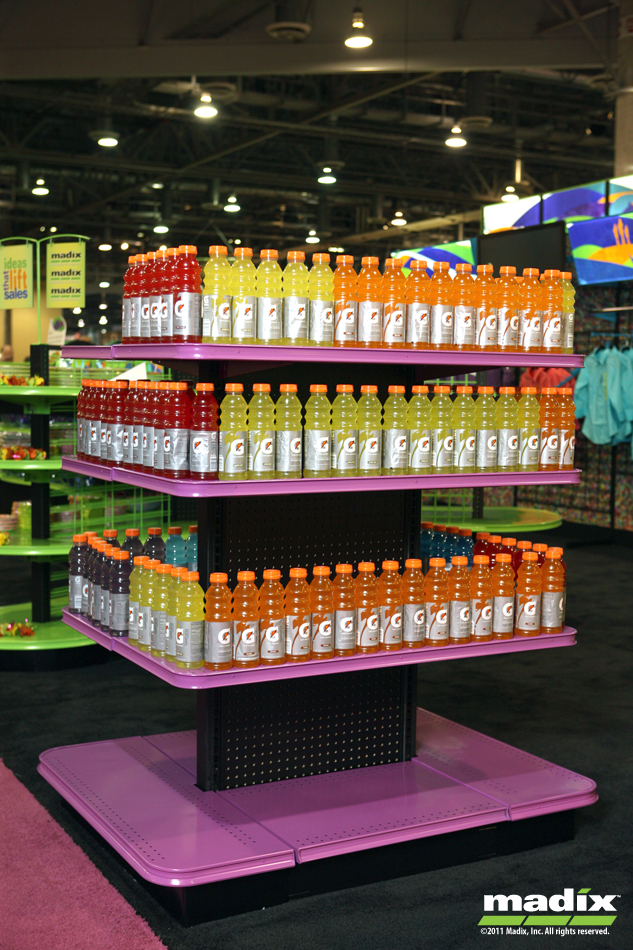

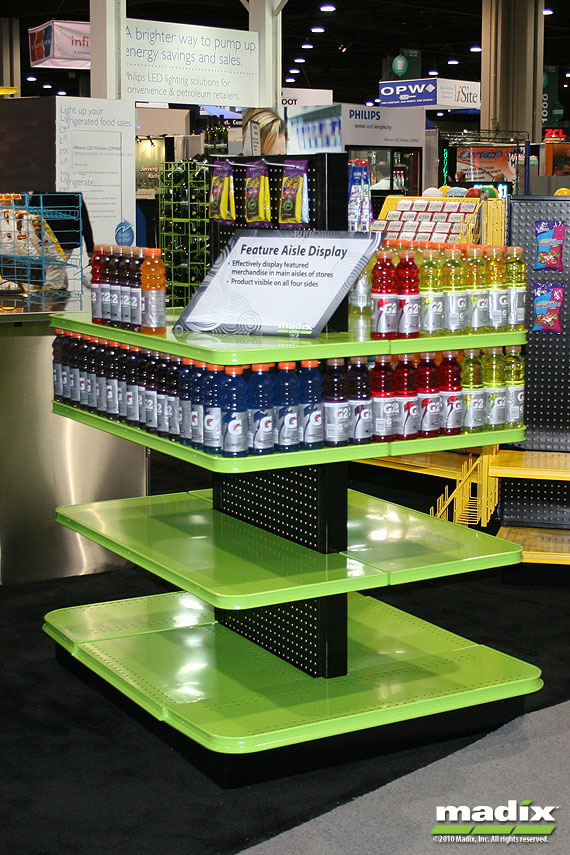

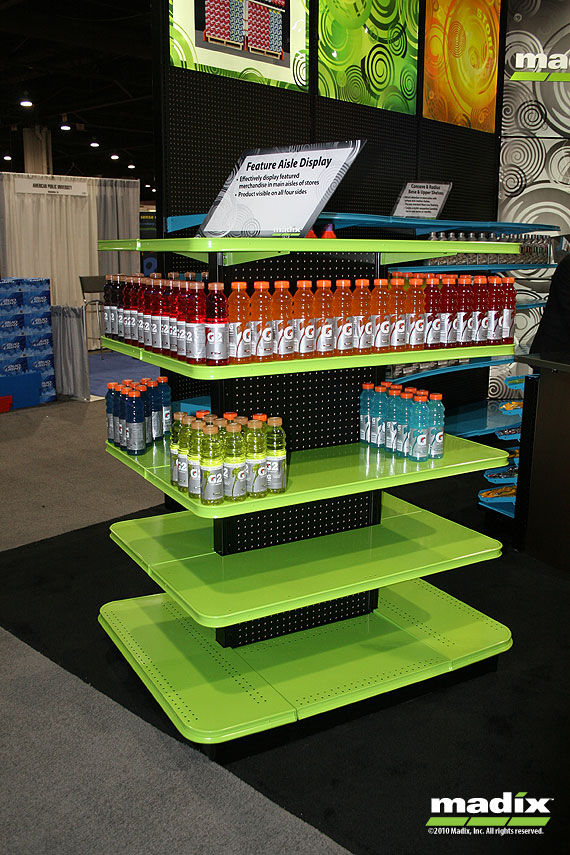

    Madix's Feature Aisle Display is an efficient way to display merchandise in the main aisles or high traffic areas of stores. Perfect for small and large sales floors alike, the Feature Aisle Display lifts sales by displaying merchandise on all four sides. Colorful and completely customizable, utilize the shelves alone, or combine with pegboard for displaying pegged merchandise.

    • Efficiently display merchandise in main aisles or high traffic areas of stores
    • Perfect for both small and large sales floors
    • Lifts sales by displaying merchandise on all four sides
    • Colorful and completely customizable; utilize the shelves alone, or combine with pegboard for displaying pegged merchandise
    • When ordering optional Pallet Jack Base, do not order Base Shoes, Kickplates, and Metal End Flats
    • Load capacity 800 lbs in all sizes, based on evenly distributed static loading

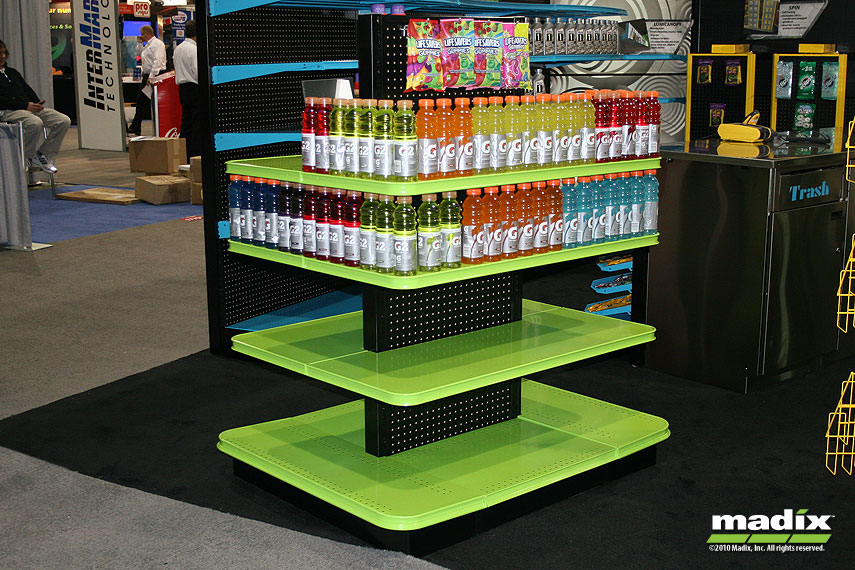

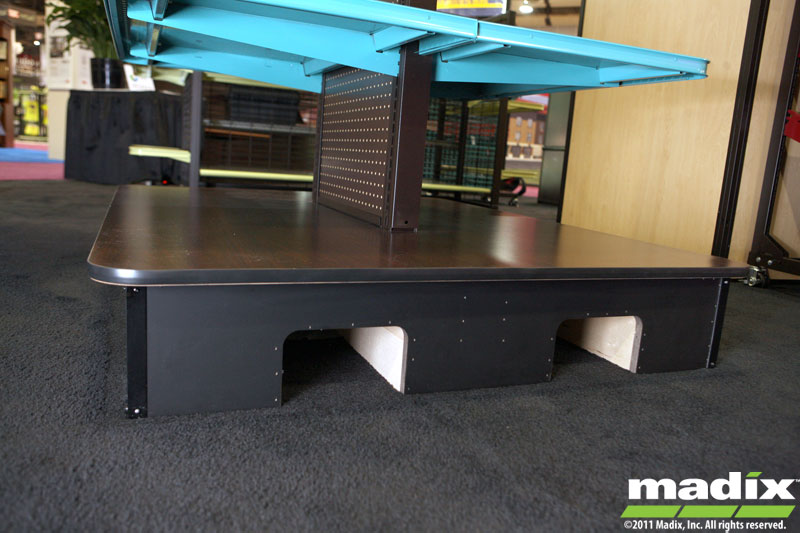

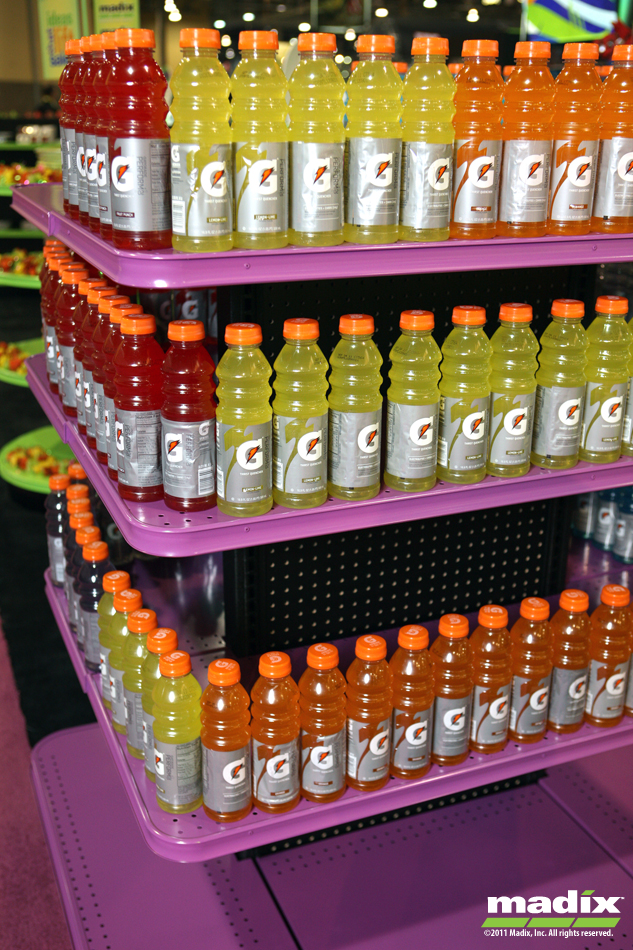

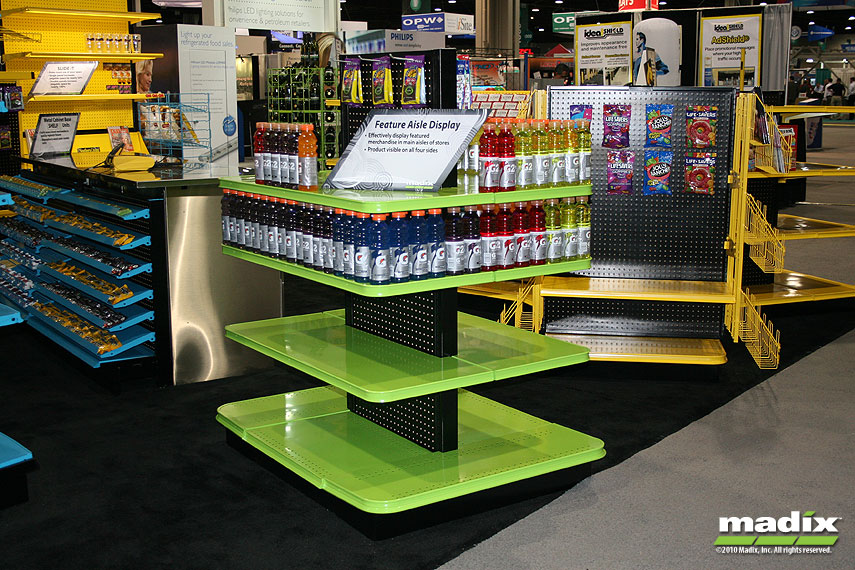

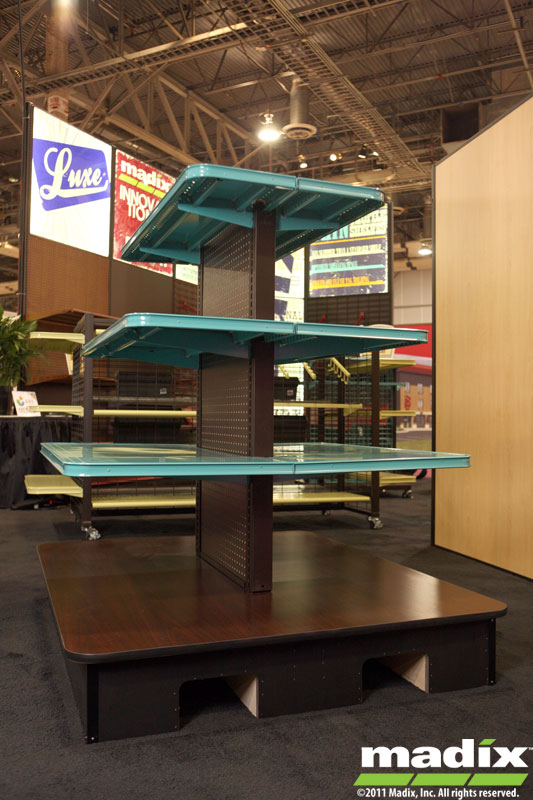

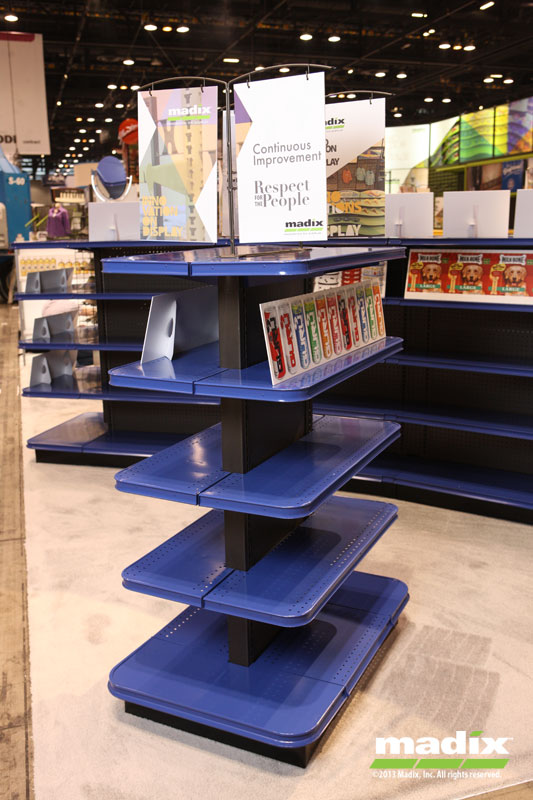

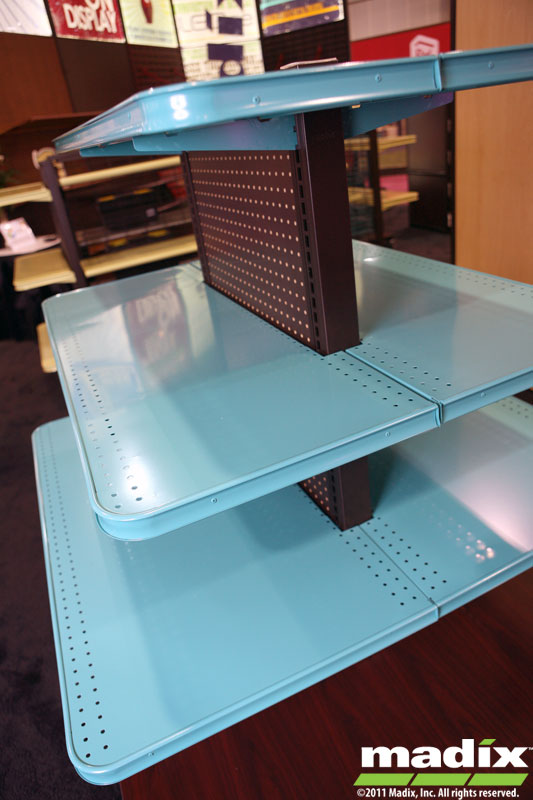

  • Gallery

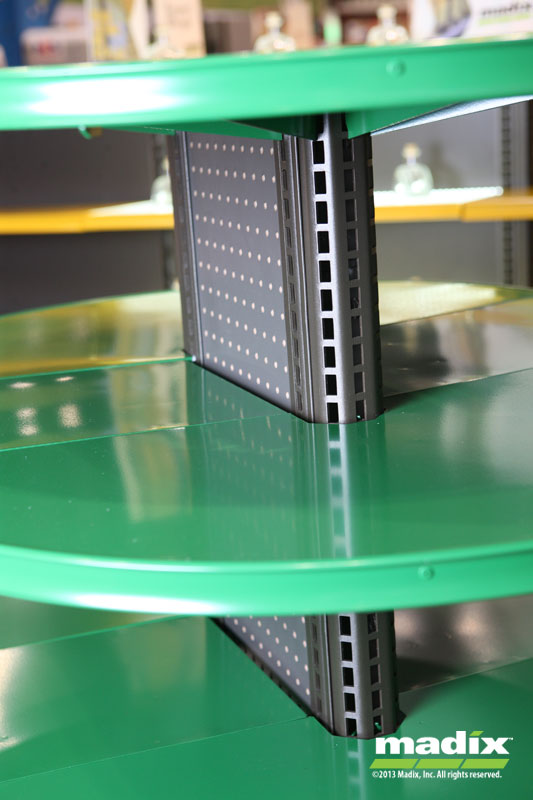

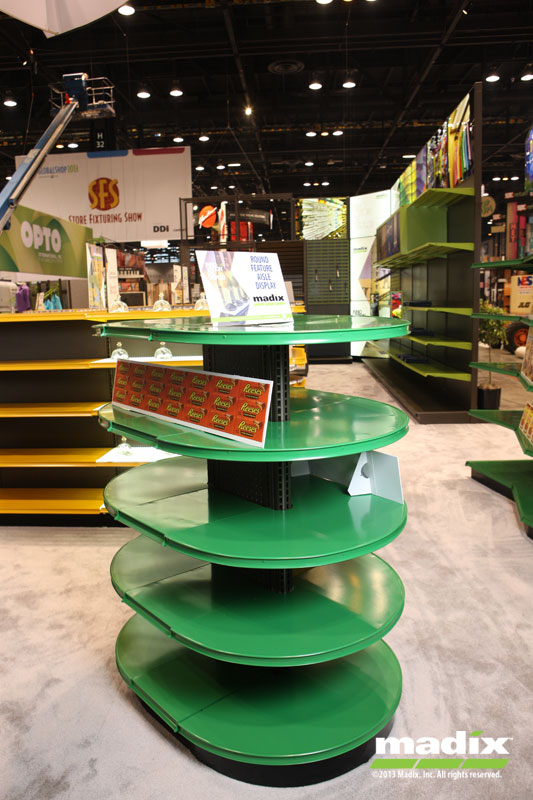

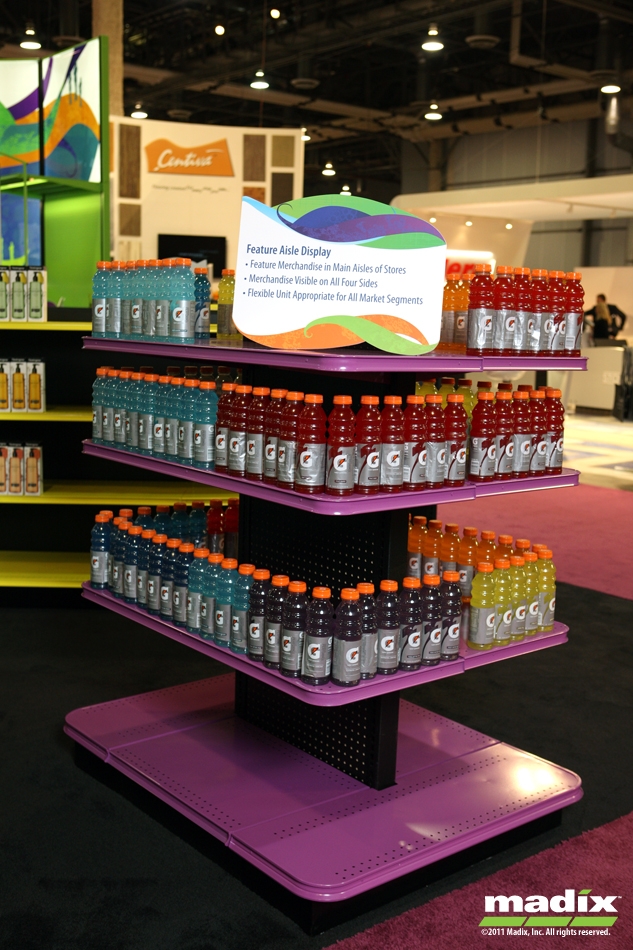

Round Feature Aisle Display
  • Components for Feature Aisle Display

    Reveal/Hide Components
    Feature Aisle Display
    Part Description Part Number Quantity Notes
    A Back Panel B(TYPE)-2(NH) 2 2' only
    B Basic Upright BU-(AH) 2 36" to 96" in 6" increments
    C Base Shoe, Straight-In Locking BSSIL-(ND) 4 18" or 24" only
    D Basic Upright Brace BUB-2436 1
    E Lower Spanner SL-2 1 2' only
    F Metal Upright End Cover VC-(NH) 2 36" to 96" in 6" increments
    G Upright Clear Cap UCC 2
    H Top Spanner STL-2 1 2' only
    I Standard Base Shelf SBS-2(ND) 2 18" or 24" only
    J Kickplate KP-2-5-SB 2 2' only
    K Metal End Flat HDPAPMEF12-1818-S5 2
    L Wrap Around Upper Shelf, Notched WAUSN48(ND) 8

     Base Shoe, Straight In Locking

    • Projection welded high tensile steel gives maximum load capacity
    • Exclusive “I” beam design is 5" low
    • Screwdriver leveling and electrical access
    • Straight in insertion does not require tipping of the Basic Upright for installation
    • Convert existing freestanding Maxi Line Wall unit to double sided Maxi Line Gondola unit without removing merchandise
    • Ideal for seasonal changes
    • Finishes are random unless Chocolate specified
    • Order 4 per unit
    Part Number: BSSIL-(ND)
    • BSSIL...Straight In Locking Base Shoe
    • ND... Nominal Depth 12" to 30" in 2" increments (304 mm to 762 mm in 50 mm increments)
    BSSIL-(ND)-Base Shoe, Straight In Locking

     Basic Upright

    • Slotted 1" (25 mm) for flexibility plus maximum space
    • Manufactured with heavy-gauge, high-tensile steel components welded into a single unit with a 15,000 inch-pound rating
    • All Basic Uprights have an integrated leveler
    • Actual height minimum of 60" to 72" in 6" increments (1524 mm to 1829 mm in 152 mm increments)
    Part Number: BU-(AH)
    • BU... Basic Upright
    • AH... Actual Height 36" to 96" in 6" increments (914 mm to 2438 mm in 152 mm increments)
    BU-(AH)-Basic Upright

     Basic Upright Brace

    • Order 1 per unit
    Part Number: BUB-2436
    • BUB... Basic Upright Brace
    • 24... Nominal Width 24" (610 mm )
    • 36... Nominal Height 36" (914 mm)
    BUB-2436-Basic Upright Brace

     Kickplate

    • Order 2 per unit
    Part Number: KP-2-5-SB
    • KP..... Kickplate
    • 2..... Nominal Length 2' (610 mm)
    • 5..... Nominal Height 5" (127 mm)
    • SB..... Satin Black
    KP-2-5-SB-Kickplate

     Lower Spanner

    • "Snap-in" spanner secures uprights at equal spacing and supports back panels
    • Electrical knockouts
    • Order 1 per unit
    Part Number: SL-2
    • SL... Lower Spanner
    • 2... Nominal Width 2' (610 mm )
    SL-2 -Lower Spanner

     Metal End Flat

    • For a completely finished wraparound end look with widths to match Gondola Bases
    • Partially assembled to speed installation
    • Kickplate assembly slips into Gondola Base Shoes, replacing Base End Covers, prior to installing End Frame
    • Continuous tag molding matches all Standard Upper Shelves and has 2" radius safety corners
    • End Flat accommodates 1 1/4" tags and has four point top leveling of shelf assembly
    • Order 2 per unit
    Part Number: HDPAPMEF12-1818-S5
    • HD..... Heavy-Duty
    • PA..... Partially Assembled
    • PMEF..... Perfed Metal End Flat
    • 12..... Nominal Depth 12" (305 mm)
    • 18..... Nominal Left-Hand Base 18" (457 mm)
    • 18..... Nominal Right-Hand Base 18" (457 mm)
    • S..... Standard Shelf
    • 5..... Base Height 5" (127 mm)
    HDPAPMEF12-1818-S5-Metal End Flat

     Metal Upright End Cover

    • Metal cover trims off end Upright of all runs
    • Easy “snap-on” positive locking
    • Standard colors for VC are Sahara, Chocolate, or Snow White
    • Used to cover exposed Upright below the end frame
    Part Number: VC-(NH)
    • VC... Metal Upright End Cover
    • NH.....Nominal Height 06=5" (127 mm) base 08=7" (178 mm) base
    VC-(NH) -Metal Upright End Cover

     Painted Back

    • Order 2 per unit
    Part Number: B(TYPE)-2(NH)
    • B...Back
    • TYPE...P=Pegboard, H=Hardboard
    • 2...Nominal Width 2' (610 mm )
    • NH... Nominal Height 36" to 72" in 6" increments (914 mm to 1829 mm in 152 mm increments)
    B(TYPE)-2(NH)-Painted Back

     Standard Base Shelf

    • Formed price tag molding matches molding on upper shelves (see SUS)
    • Heavy-gauge shelf bracket features lock tab to ensure quick installation and precision alignment
    • Load capacity 600 lbs in all sizes, based on evenly distributed static loading
    • For additional load capacity see Base Load Levelers
    • Flush Front option available
    • Order 2 per unit
    Part Number: SBS-2(ND)
    • BSSIL... Straight In Locking Base Shoe
    • 2... Nominal Width 2' (610 mm)
    • ND... Nominal Depth 18" or 24" (457 mm or 610 mm)
    Options
    • TYPE-OPT TYPE..... Blank=Perforated NP=Non-Perforated OPT..... Optional Covering: L=Laminate, C=Carpet, F=Fabric
    Finish
    • Finish Code FIN1..... Shelf Color FIN2..... Tag Mold Option: Blank=Painted Color of Shelf DGA2G=Gold Finish DGA2P=Powder Coat Finish–Different from Shelf DGA2A=Silver Finish
    SBS-2(ND)-Standard Base Shelf

     Top Spanner

    • “Snap-in” spanner secures uprights at equal spacing, traps back panels and trims top of section
    • Electrical and telescoping Upright knockouts
    • Order 1 per unit
    Part Number: STL-2
    • STL...Top Spanner
    • 2... Nominal Width 2' (610 mm)
    STL-2 -Top Spanner

     Upright Clear Cap

    • High impact molded plastic cap finishes open top end of Upright
    • Provision for tapered or threaded stem sign holders
    • Fits Telescoping Upright knockout in Top/Lower Spanner
    • Order 2 per unit
    Part Number: UCC
    • UCC... Upright Cap, Clear
    UCC-Upright Clear Cap

     Wrap Around Notched Upper Shelf

    • Specially designed for a completely finished end look
    • Continuous tag molding with 2" (51 mm) radius safety corners
    • Accommodates 1 1/4" (32 mm) tags
    • Tag molding matches all Standard Shelves and End Flats

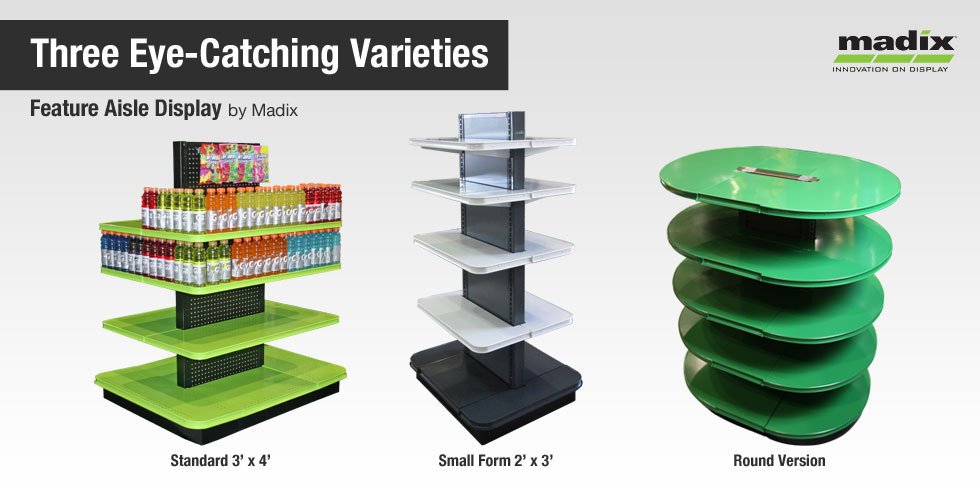

    • For 2' x 3': NW 36", ND 12", 18", 24" (NW 914 mm, ND 305 mm, 457 mm, 610 mm)
    • For 3' x 4': NW 48", ND 12", 18", 24" (NW 914 mm, ND 305 mm, 457 mm, 610 mm)
    Part Number: WAUSN48(ND)
    • WAUSN..... Wrap Around Notched Upper Shelf
    • NW.....Nominal Width 36" or 48" (914 mm or 1219 mm)
    • ND..... Nominal Depth 12", 18", or 24" (305 mm, 457 mm, or 610 mm)
    WAUSN48(ND)-Wrap Around Notched Upper Shelf
  • Accessories for Feature Aisle Display

    Reveal/Hide Accessories

    Feature Aisle Display, Castors Option

    The Feature Aisle Display, Casters Option utilizes the same components as the Feature Aisle Display with the deletion of the Metal End Flat (HDPAPMEF) and the addition of the parts listed in the chart below. The capacity of this unit is 800lbs static and 500lbs rolling (do not move fully loaded).

    Part Description Part Number Quantity
    M Mobile Gondola End Deck MGED121818 2
    N Caster Runner MGPCCR-24 2
    O Open Back Stiffener OBS-2 1
    P Seismic Tie Bar SCS-2 1

    Caster Runner

    • For casters option, order 2 per unit
    Part Number: MGPCCR-24
    • OBS..... Open Back Stiffener
    • NW..... Nominal Width 3' or 4' (914 mm or 1219 mm)
    MGPCCR-24-Caster Runner

    Mobile Gondola End Deck

    • For casters option, order 2 per unit
    Part Number: MGED121818
    • MGED..... Mobile Gondola End Deck
    • 12..... Nominal Depth 12"
    • 18..... Left Side Depth 18"
    • 18..... Right Side Depth 18"
    MGED121818-Mobile Gondola End Deck

    Open Back Stiffener

    • For casters option, order 1 per unit
    Part Number: OBS-(NW)
    • OBS..... Open Back Stiffener
    • NW..... Nominal Width 3' or 4' (914 mm or 1219 mm)
    OBS-(NW)-Open Back Stiffener

    Seismic Tie Bar

    • For casters option, order 1 per unit
    Part Number: SCS-(NW)
    • SCS..... Seismic Tie Bar
    • NW..... Nominal Width 2', 30", 3', 42", 4', 5' (609 mm, 914 mm, 1219 mm, 1524 mm, 762 mm, 1067 mm)
    SCS-(NW)-Seismic Tie Bar
